Yamaha YZF-R1 1998 Service Manual

7 - 10
CHAS
REAR WHEEL, BRAKE DISC, AND REAR WHEEL
SPROCKET
EB701000
REAR WHEEL, BRAKE DISC, AND REAR WHEEL SPROCKET

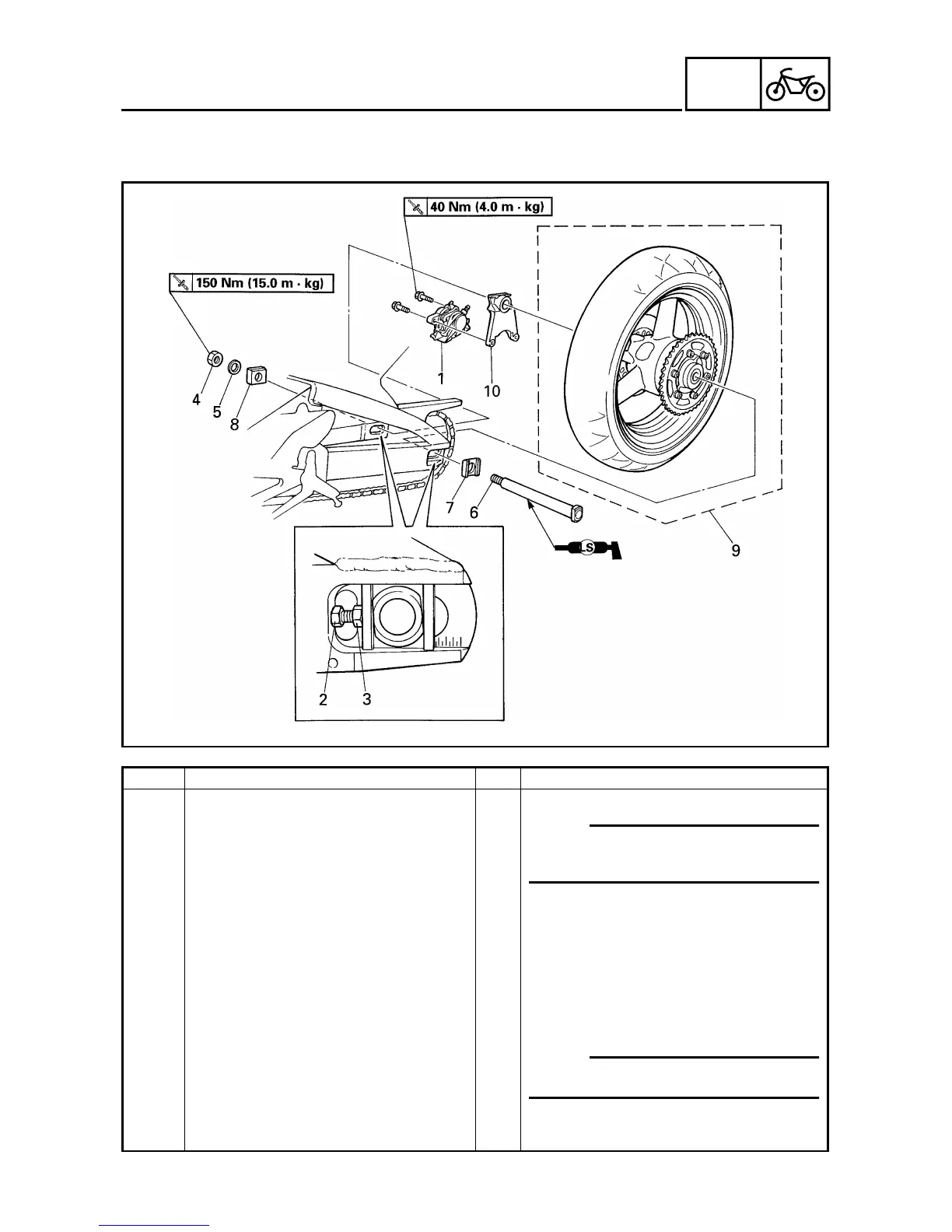

Order Job/Part Q’ty Remarks
Removing the rear wheel Remove the parts in the order listed.
1 Brake caliper 1
2 Locknut (left and right) 2 Loosen.
3 Adjusting bolt (left and right) 2 Loosen.
4 Wheel axle nut 2
5 Washer 1
6 Rear wheel axle 1
7 Left adjusting block 1
8 Right adjusting block 1
9 Rear wheel 1
10 Brake caliper bracket 1
For installation, reverse the removal
procedure.
NOTE:
Place the motorcycle on a suitable
stand so that the rear wheel is ele-
vated.
NOTE:
Make sure that the tapered side of the
right adjusting block faces the wheel.
