POWER TRAIN (3)

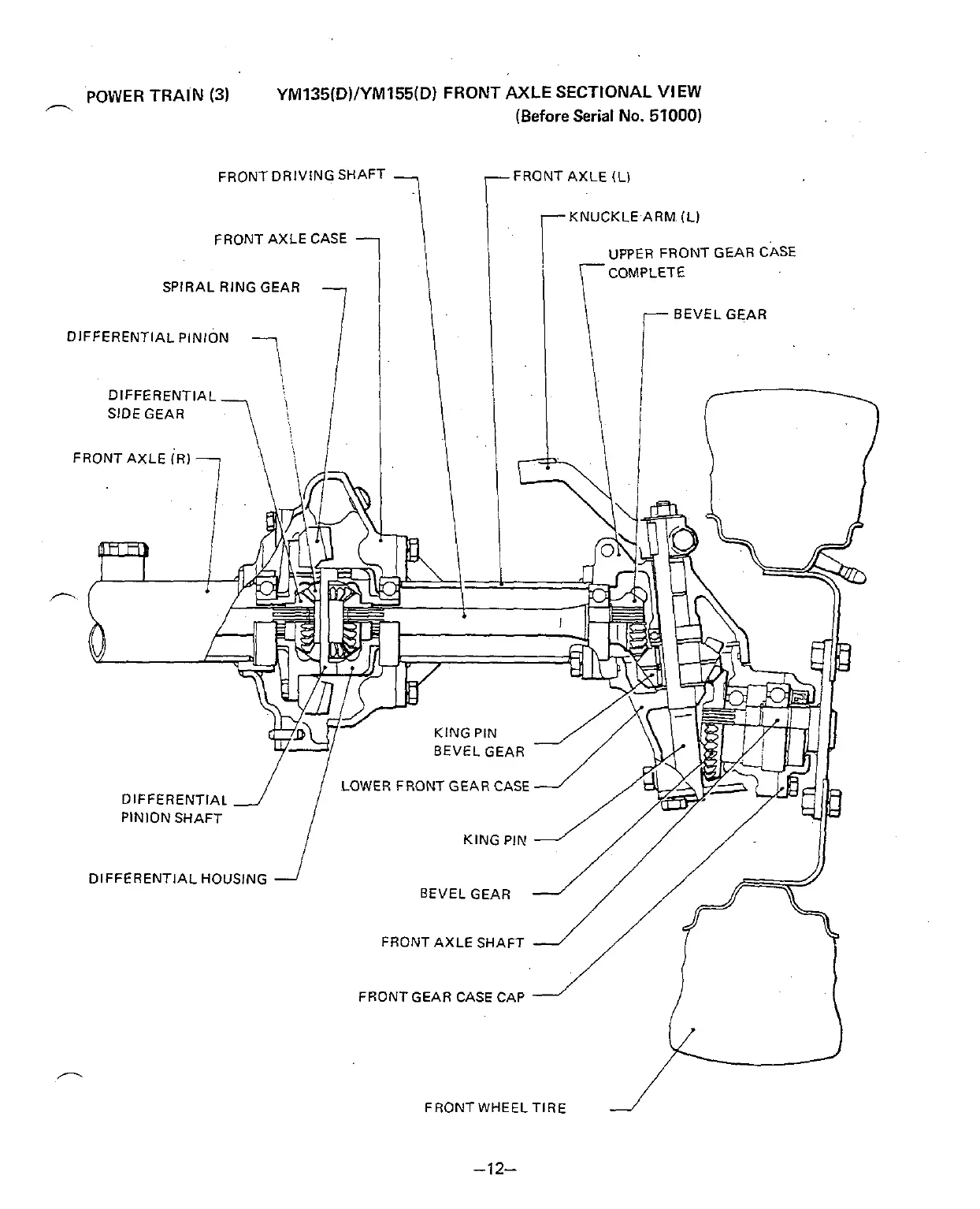

YM135(D)/YM155(D) FRONT AXLE SECTIONAL VIEW
n
(Before Serial No. 51000)
FRONT DRIVING SHAFT
-7
KNUCKLE ARM. (L)
FRONT AXLE CASE
BEVEL GEAR
DIFFERENTIAL PINION
DIFFERENTIAL
SIDE GEAR
LOWER FRONT GEAR CASE
DIFFERENTIAL
PINION SHAFT
DIFFERENTIAL HOUSING
BEVEL GEAR
FRONT AXLE SHAFT
FRONT GEAR CASE CAP
FRONT
WHEELTIRE 2
