YARD Commander SP31128 - Step 10: Attach Hopper Bag to Sweeper

- 14 -

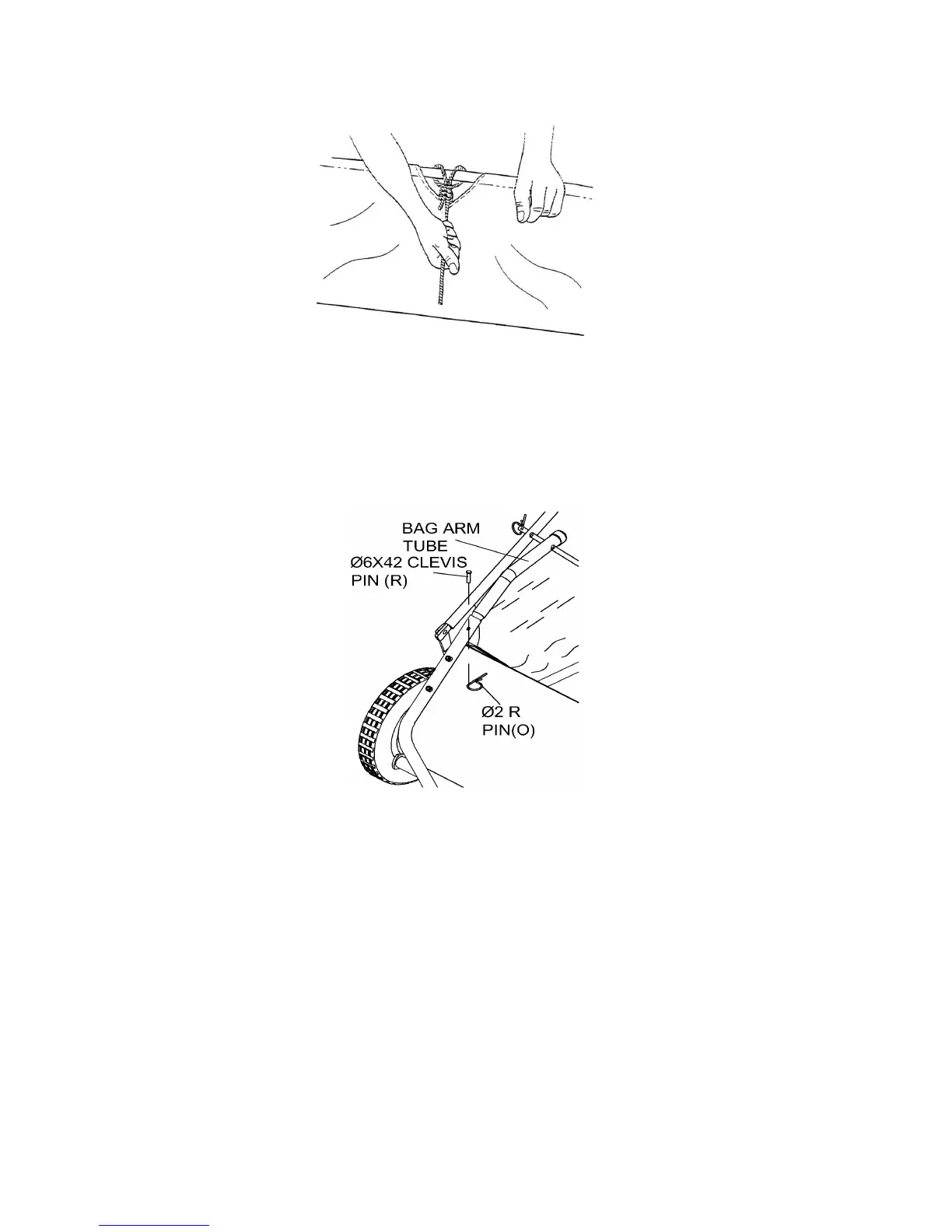

16. Secure the rope to the top center of the hopper bag frame.
STEP 10: Attach Hopper Bag to Sweeper
1. Slide the ends of the bag arms tubes into the ends of the sweeper’s hitch tubes and secure
using two Ø6X42 clevis pins and Ø2 R pins.
2. Tighten all hardware before using the sweeper.
