- 13 -

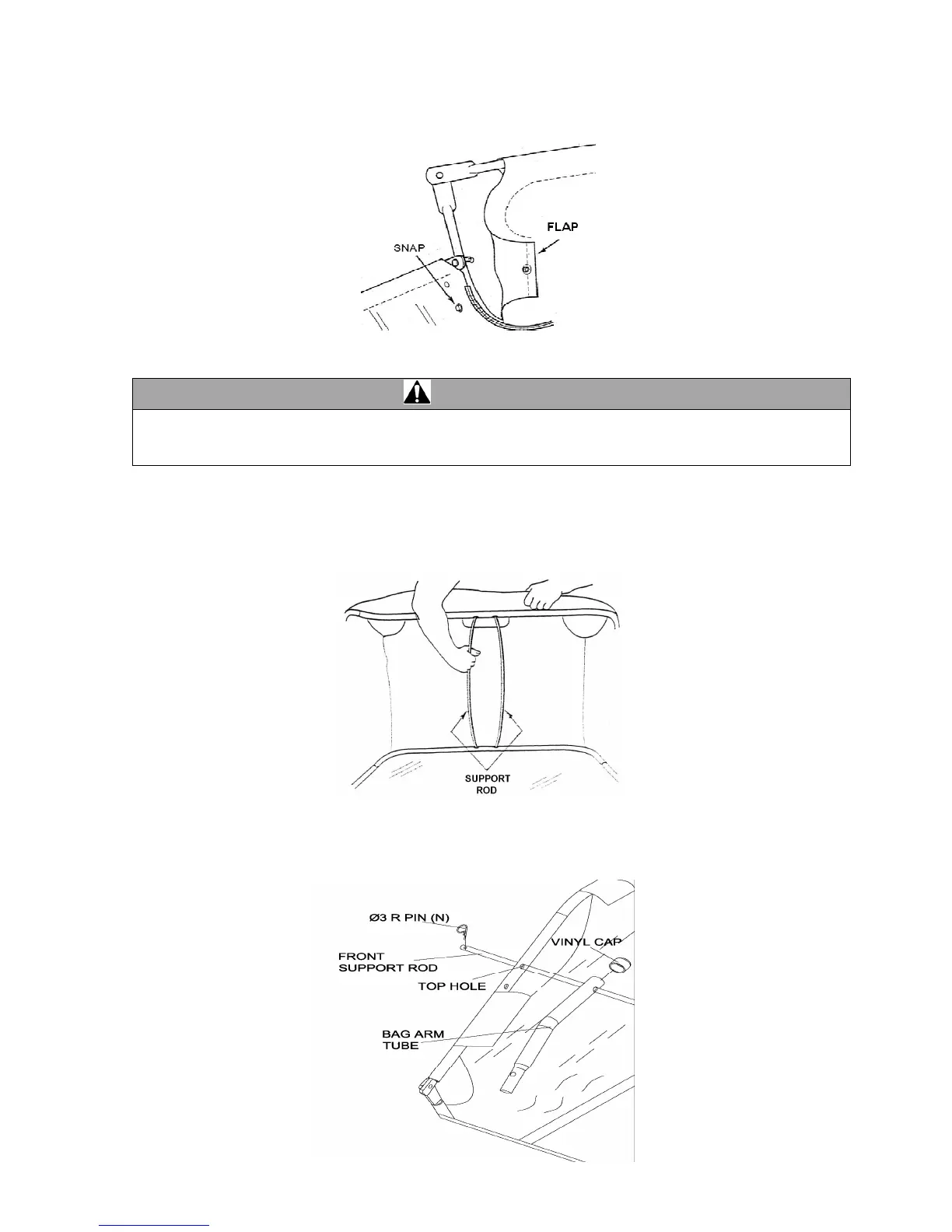

12. Secure the bag corners around the lower hopper side tubes by snapping the bag flaps to the
bag bottom on both sides.
Do not over bend the support rods during the next steps. Over bending will cause the steel rods to lose
supporting tension.
13. Tip the hopper on its back to insert the two hopper support rods.
14. Place the ends of each rod into the upper and lower rear hopper tubes bending the rod just
enough to fit into the holes in the tubes.
15. Insert the front support rod through the top hole in each of the upper hopper side tubes and
assemble bag arm tube and secure with an Ø3 R pin.
