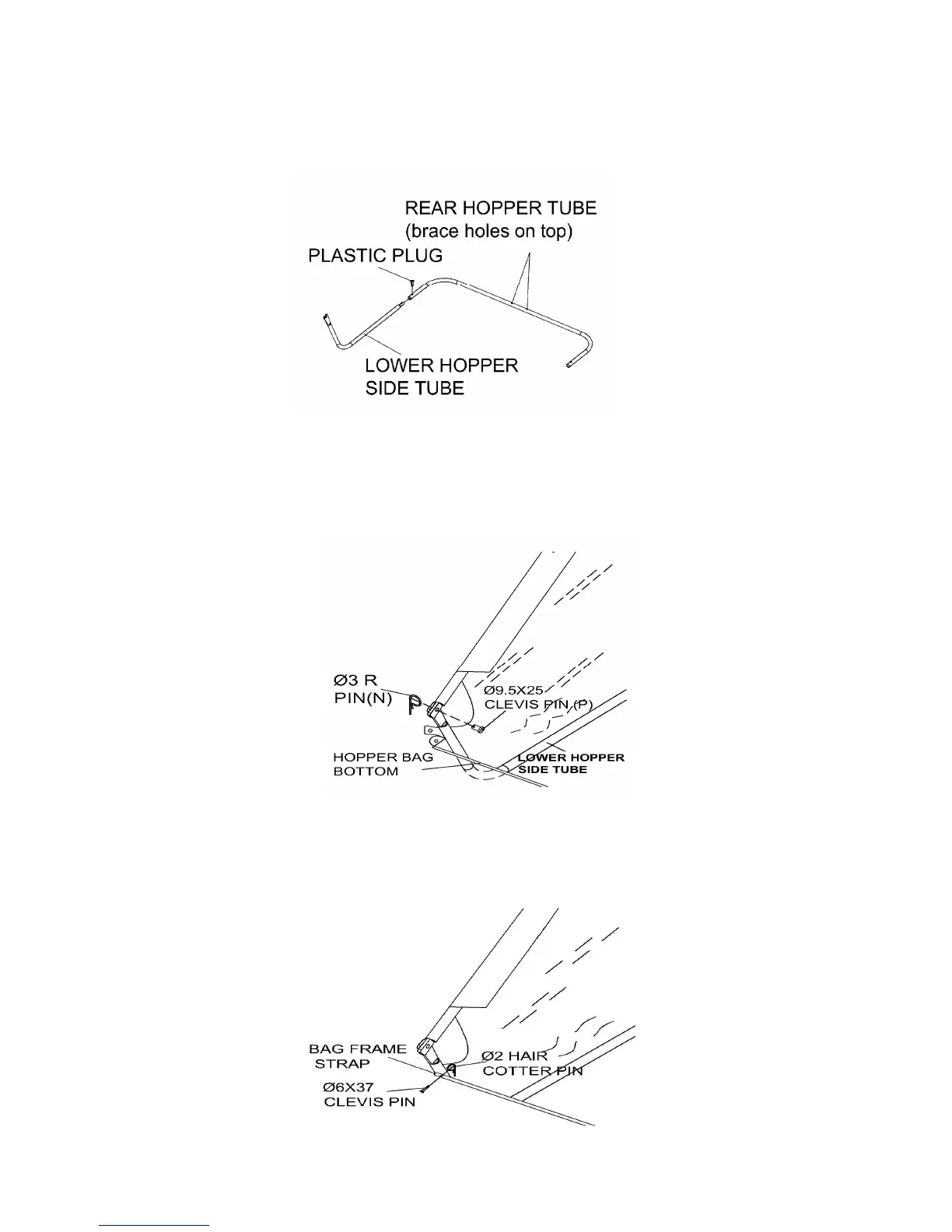

5. Turn the second rear hopper tube so that the brace holes are in the middle and the tube faces
up.
6. Attach the ends of the rear hopper tube into the ends of the lower hopper side tubes. Fasten
together using plastic plugs.
7. Place the lower hopper tube assembly in the bottom of the bag.
8. Attach the ends of the lower side tubes inside the upper side tubes using two Ø9.5X25 clevis
pins.
9. From the inside of the bag insert the two Ø3 R pins.
10. Insert the bag frame strap into the stitched sleeve along the front edge of the bag bottom.
11. Attach the bag frame strap to the lower hopper side tubes using two Ø6X37 clevis pins and two
hair pins Ø2.
