- 11 -

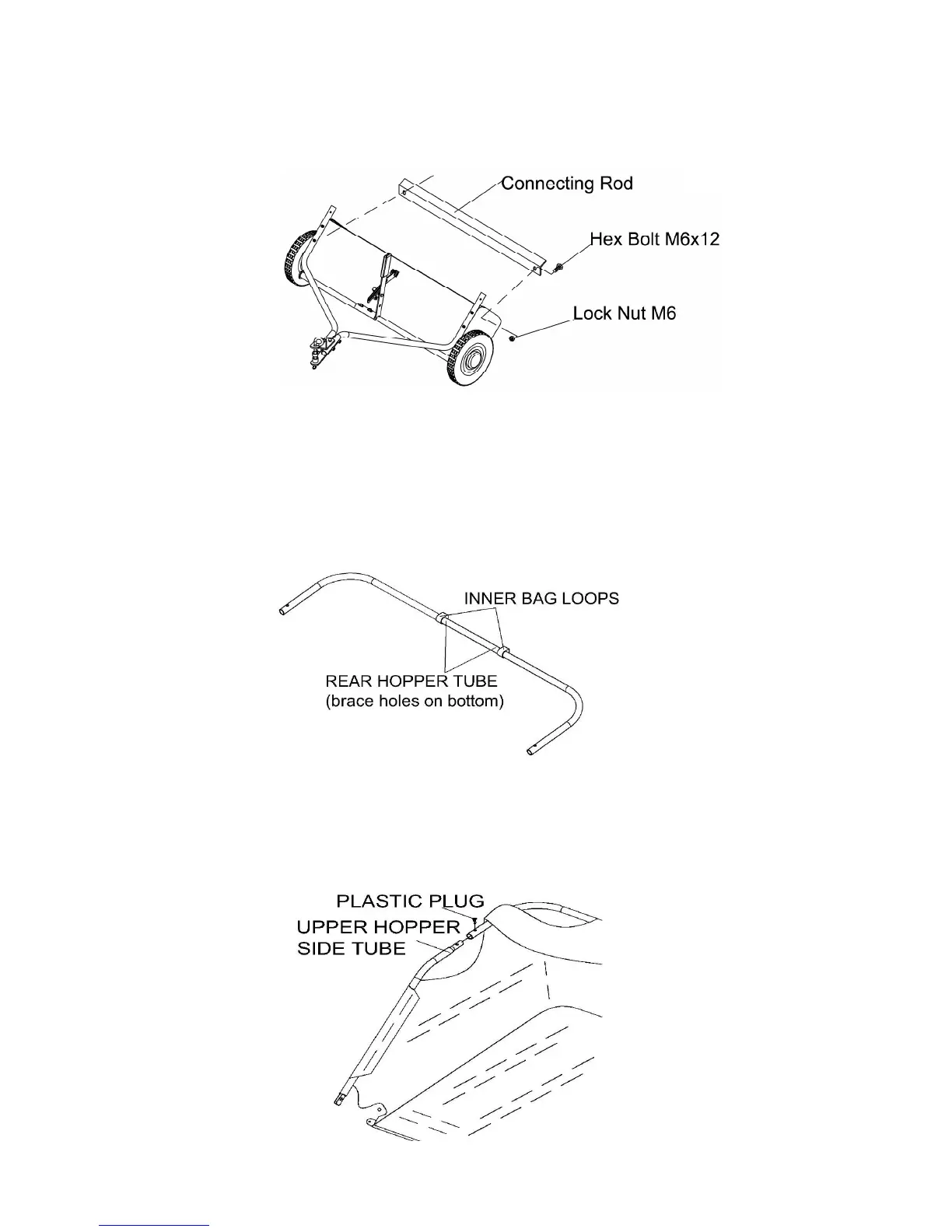

STEP 8: Attach Connecting Rod
1. Attach the connecting rod to the sweeper housing using two sets of M6x12 hex bolts and M6
lock nut.
STEP 9: Assemble Hopper Bag
1. Position the rear hopper tube so the brace holes are in the middle and the tube is facing down.
2. Side the tube through the two sewn in loops at the top of the rear seam inside the bag.
3. Insert the two upper hopper side tubes through the stitched flaps on each side of the bag.
4. Insert the ends of the rear hopper tube onto the ends of the upper hopper side tubes. Fasten
together using the plastic plug.
