YARD Commander SP31128 User Manual

- 10 -

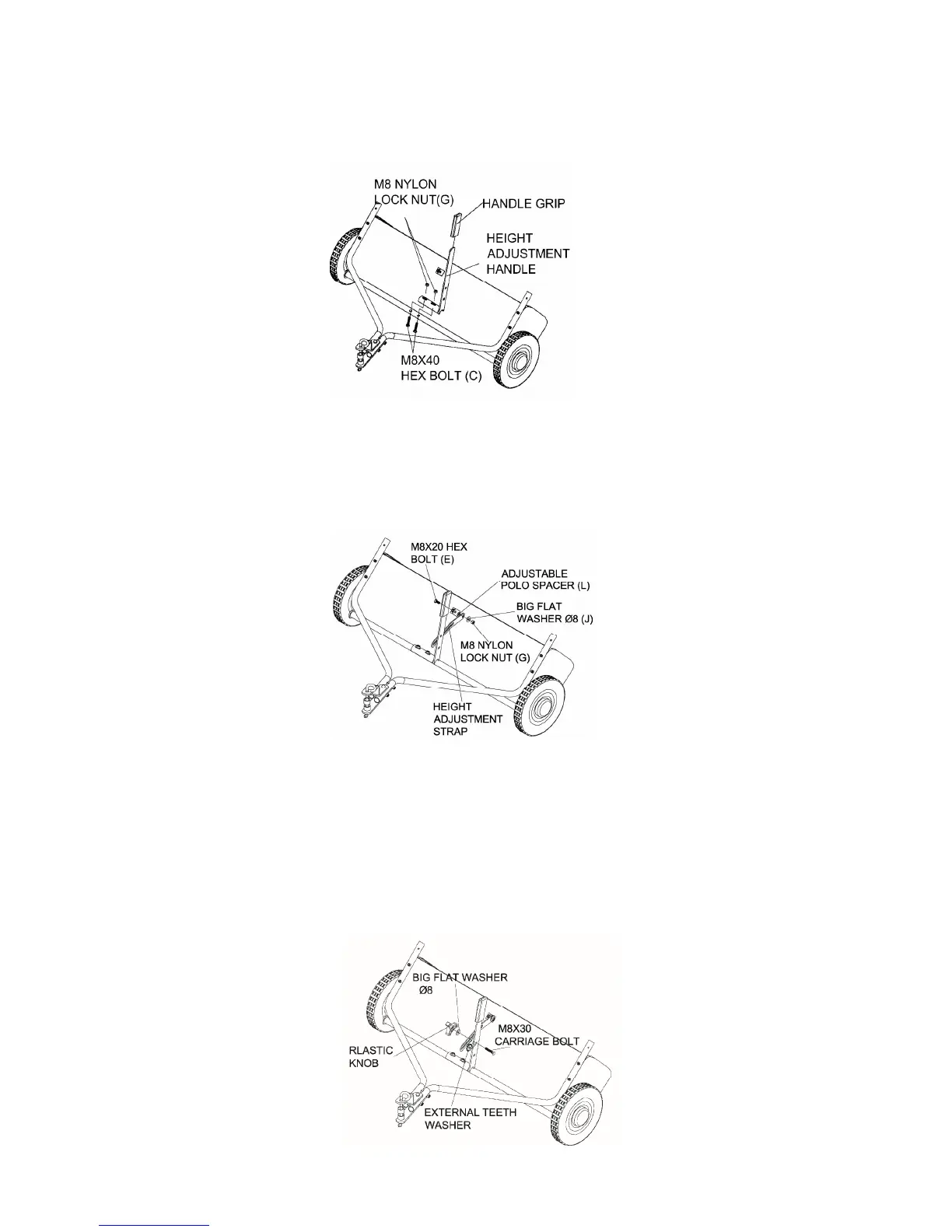

STEP 5: Assemble the Height Adjustment Handle
1. Attach the height adjustment handle to the height adjustment tube using two M8x40 hex bolts
and M8 lock nut. Loosely tighten.
STEP 6: Attach the Adjustment Strap to the Angle Bracket
1. Insert a M8x20 hex bolt through the angle bracket. In the following order put the polo spacer,
height adjustment strap, Ø8 big flat washer and M8 lock nut and tighten.
STEP 7: Attach Knob and Washer to Handle
1. Put the adjustment handle side to side so the external teeth washer can fit between the handle
and the adjustment strap and tighten.
2. Insert the M8x30 carriage bolt through the height adjustment handle. In the following order put
the bolt, adjustment handle; wear washer, adjustment strap, external teeth washer, the Ø8 big
flat washer and the plastic knob.
