YARD Commander SP31128 User Manual

- 9 -

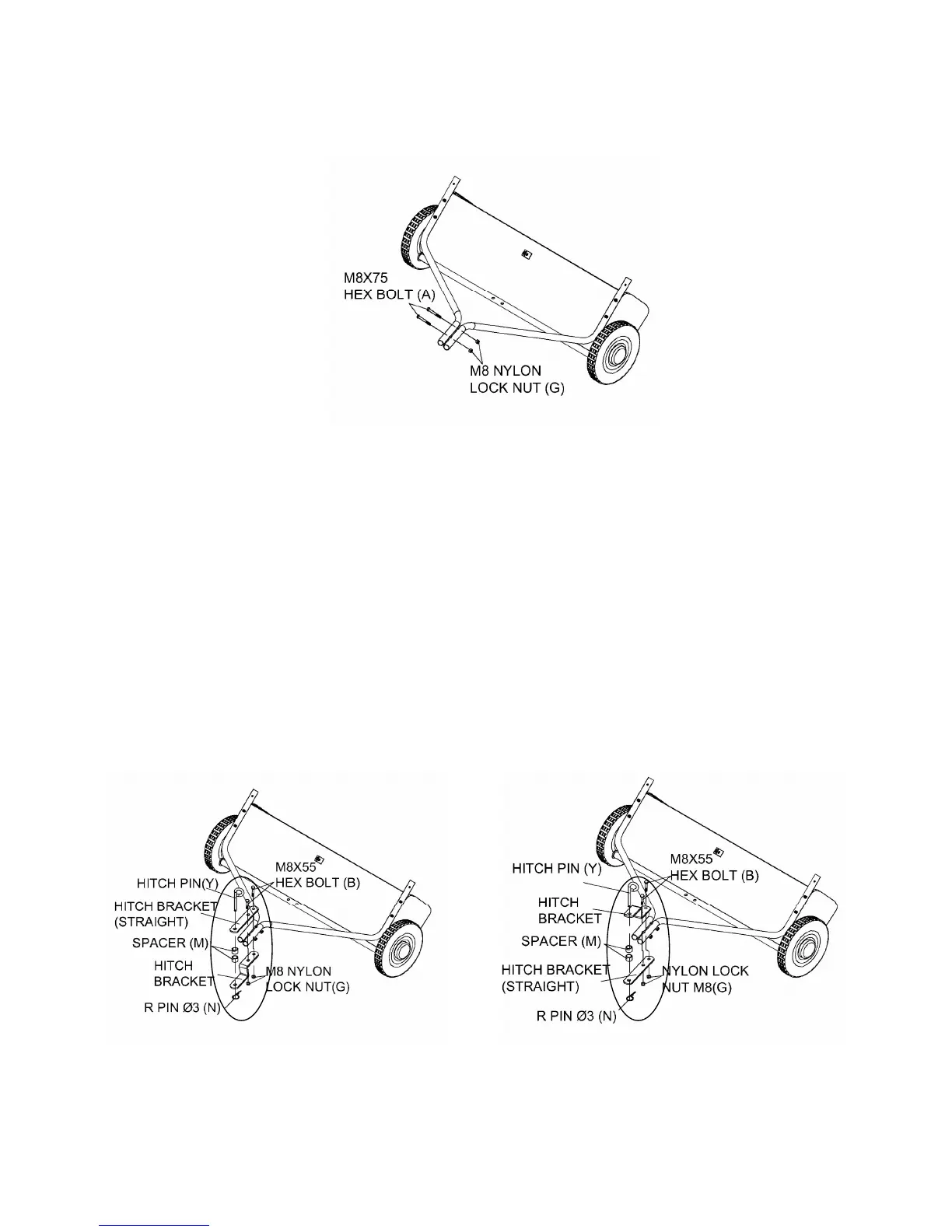

STEP 3: Fasten Hitch Tubes Together
1. Fasten both hitch tubes together using two M8x75 hex bolts and M8 lock nuts. Loosely
tighten.
STEP 4: Attach Hitch Bracket to the Hitch Tubes
1. Attach the hitch bracket to the hitch tubes using two M8x55 hex bolts and M8 hex lock nuts.
The bolts should straddle the front hitch tube bolt. Loosely tighten.
2. Tighten the four bolts fastening the hitch tubes to the sweeper housing.
3. Next tighten the two bolts fastening the ends of the hitch tubes together.
4. Then tighten the two bolts holding the hitch brackets to the hitch tubes.
5. Put the hitch pin, spacers and the R pin through the hitch brackets.
6. Before moving to the next step make sure all hardware is tighten.
NOTE: If your vehicles hitch has 11 in. to 13 in. ground clearances use the straight hitch
bracket (figure A). If your vehicles hitch has 8 in. to 11 in. ground clearance use the other
hitch bracket (figure B).
B
A
