Yard force NX 100i User Manual

15
GB

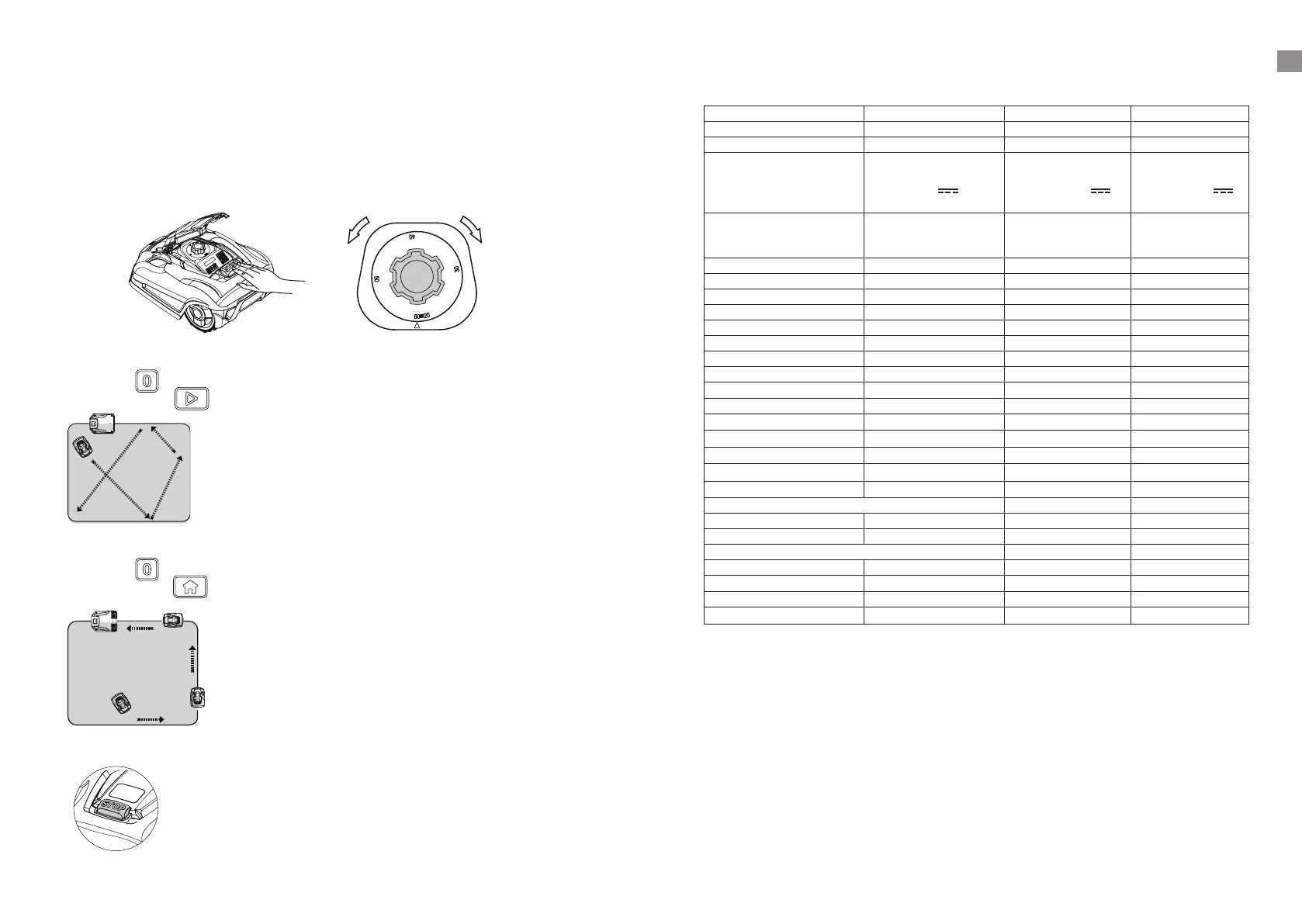

Technical Data
Model NX 60i NX 80i NX 100i
Max cutting area 600 m
2
800 m
2
1000 m
2
Battery pack 28 V/ 2000 mAh 28 V/ 2850 mAh 28 V/ 2850 mAh
Switch power supply
Input: 100-240 V~,
50/60 Hz, 56 W
Output: 32V , CC1.5
A
Input: 100-240 V~,
50/60 Hz, 56 W
Output: 32V ,
CC1.5 A
Input: 100-240 V~,
50/60 Hz, 56 W
Output: 32V ,
CC1.5 A
Power supply model* FY3201500S1/
FY3201500S2/
FY3201500S3
FY3201500S1/
FY3201500S2/
FY3201500S3
FY3201500S1/
FY3201500S2/
FY3201500S3
Mowing time on one charge 60 min 80 min 80 min
Rated voltage 28 V 28 V 28 V
Rated power 50 W 50 W 50 W
No load speed 3500 min
-1
3500 min
-1
3500 min
-1
Cutting width 18 cm 18 cm 18 cm
Cutting height Approx 20-60 mm Approx 20-60 mm Approx 20-60 mm
Charging time 60 min 90 min 90 min
Blade model 846210 846210 846210
Weight 8.5 kg 8.5 kg 8.5 kg
Frequency Band 0-148.5 kHz 0-148.5 kHz 0-148.5 kHz
Magnetic Field Strength 70 dBμA/m 70 dBμA/m 70 dBμA/m
Wifi Frequency Band 2400~2483.5MHz 2400~2483.5MHz 2400~2483.5MHz
Wifi Magnetic Field strength 20dBm 20dBm 20dBm
Max sound pressure level L
pA
=53 dB, K=3 dB L
pA
=53 dB, K=3 dB L
pA
=53 dB, K=3 dB
Max sound power level L
wA
=64 dB, K=3 dB L
wA
=64 dB, K=3 dB L
wA
=64 dB, K=3 dB
Degree of protection:
Robotic Mower IP24 IP24 IP24
Switching power supply IP67, Plug IP44 IP67, Plug IP44 IP67, Plug IP44
Spare parts
Spare Blades 6 Pcs 6 Pcs 6 Pcs
Boundary pegs 150 Pcs 200 Pcs 220 Pcs
Boundary wire 120 m 150 m 200 m
Connectors 3 Pcs 3 Pcs 3 Pcs
*
WARNING: For the purposes of recharging the battery, only use the detachable supply unit
provided with this appliance.
Cutting height adjustment
The cutting height can be adjusted by rotating the height adjustment dial located on the top
of the machine. Cutting height range from 20 mm - 60 mm.
NOTE!
We recommend using an ordinary lawn mower or trimmer to cut the lawn below 60 mm
before using the Robotic Mower. This will ensure you get the optimum performance.
Start mowing
After finishing the time settings, now you can start your Robotic Mower
1. Press the button for 4 times to unlock the panel.
2. Press the button and then close the lid, the Robotic Mower will start to work.
Return to the docking station
1. Press the button for 4 times to unlock the panel.
2. Press the button and then close the lid, the Robotic Mower will back to the docking
station.
Emergency Stop
Press STOP button to halt the mower at any time.
