Yard force YF12BLV - Assembly for Vacuum Mode

12
ASSEMBLY
ASSEMBLY FOR VACUUM MODE

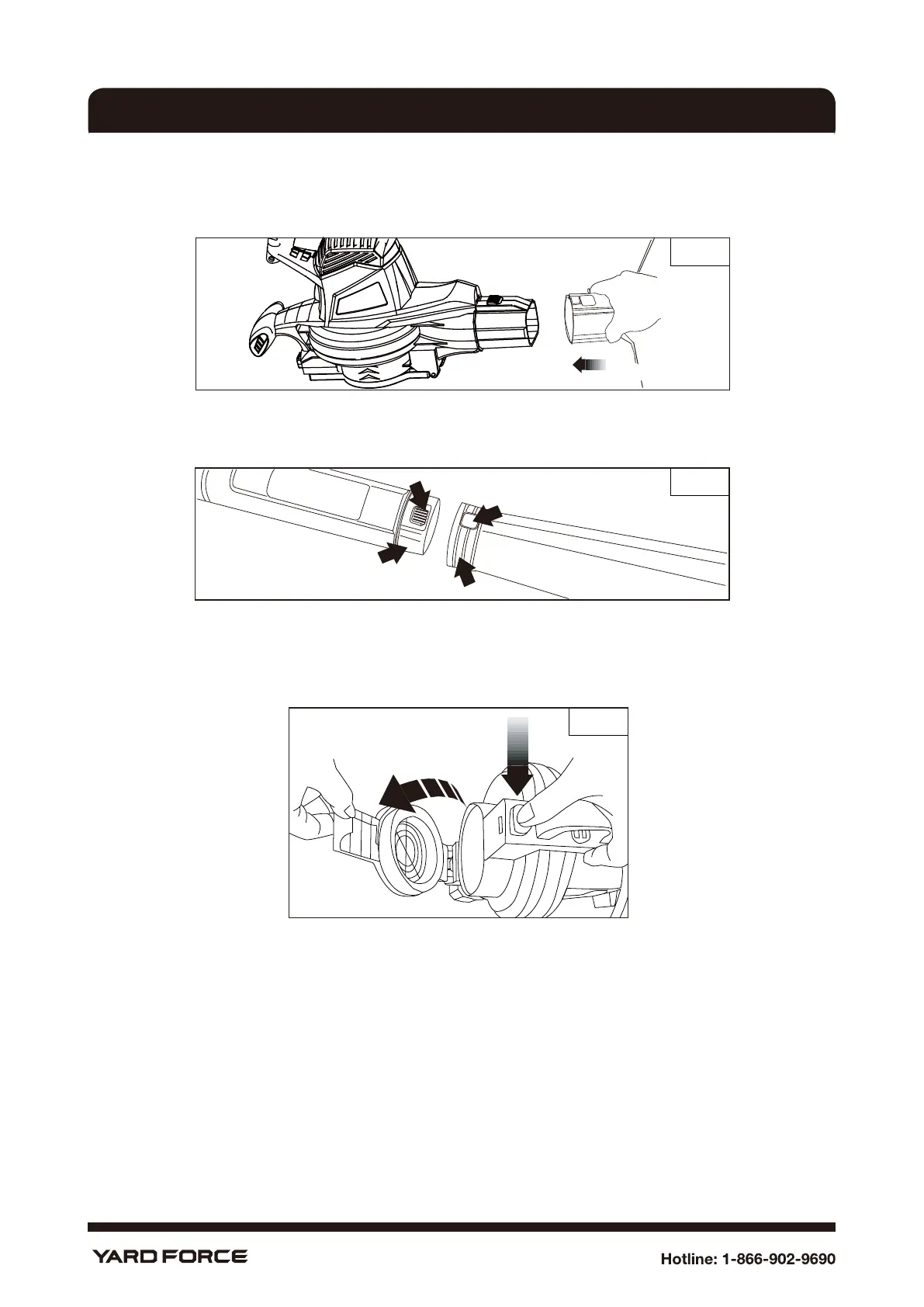

1. Attach the push-on collection bag connector to the outlet tube of the housing. Push the fitting
of the collection bag directly onto the outlet until it “clicks” into position as shown in Fig. 6.
Fig. 6
Fig. 7
Fig. 8
Collection bag
2. Push the lower tube firmly in to the upper tube, until the tubes “click” into place (Fig. 7).
Fig. 6
Fig. 7
Fig. 8
Collection bag
3. Open the vacuum cover from the bottom of the motor housing by depressing the lock button
and pulling the cover down (Fig. 8).
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Collection bag
