ASSEMBLY

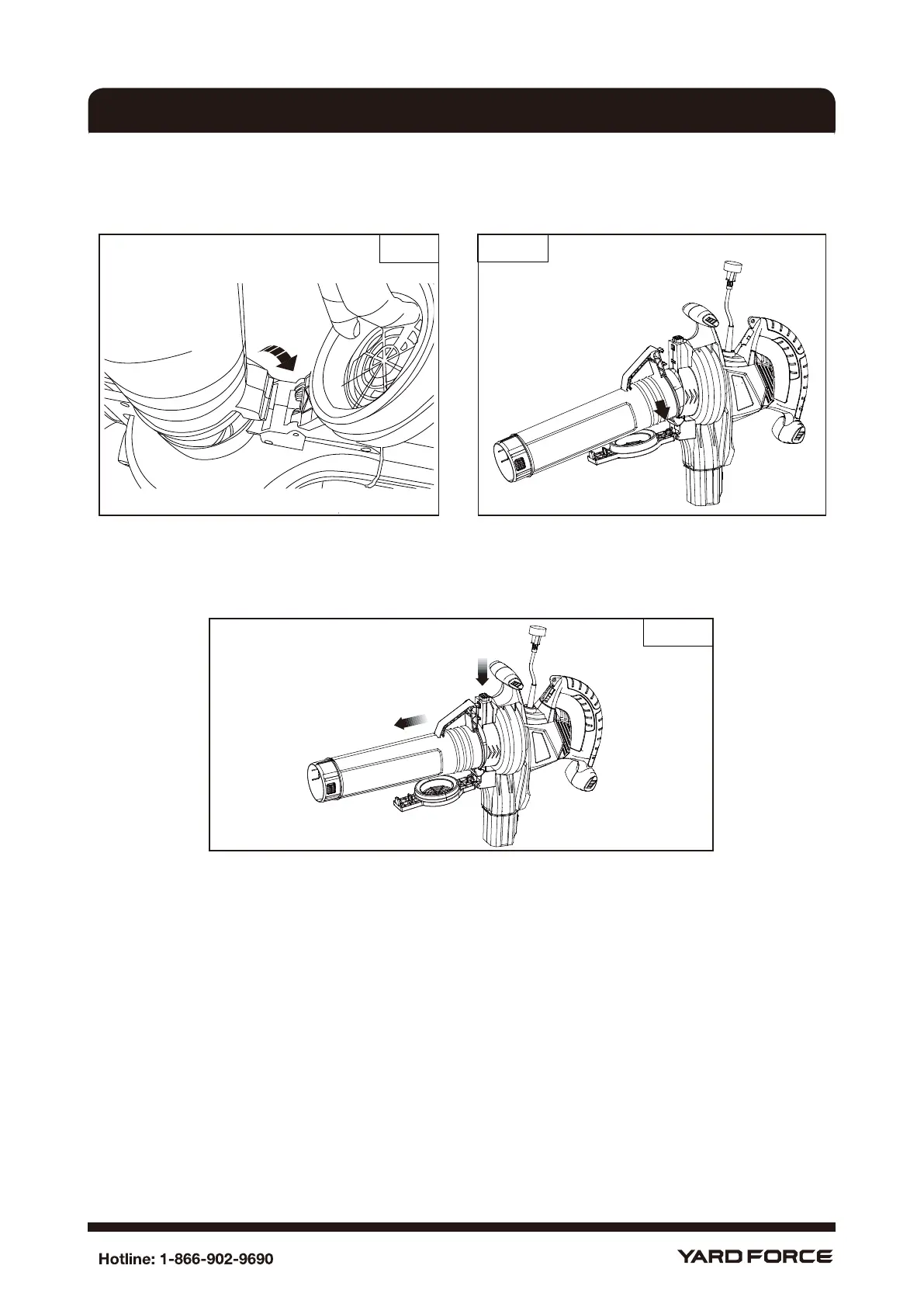

4. Attach the upper vacuum tube assembly to the motor housing by inserting the assembly tab as
indicated (Fig. 9). Next, pivot tube from this point until the locking/release catch "clicks" and
is fully engaged (Fig.10).
Fig. 9
Fig. 10
Fig. 11
5. To remove the vacuum tube, depress and hold the lock button then pivot the tube away from
the lock button (Fig. 11).
Fig. 9
Fig. 10
Fig. 11
