10

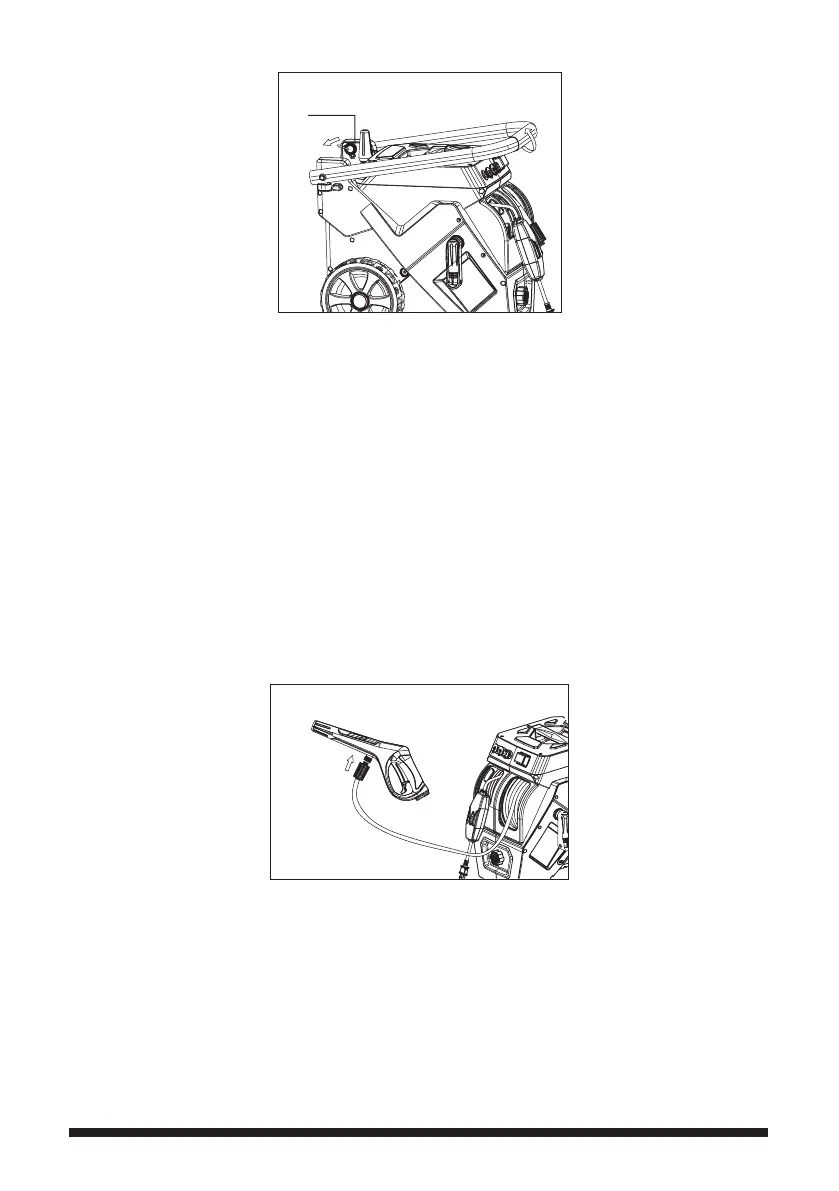

Fig. 5
Locking/releasing pin
1. Pull the Locking/releasing pin outward on the left side of the machine, so that the
locking/releasing pin stays clear of the original hole where it was seated and hold it
in place with one hand.
2. While turning the handle upward with the other hand, it can rotate around its pivot.
At this moment it allows release the locking/releasing pin, so that it can depress
against the surface of the handle.
3. Keep rotating the handle until the locking/releasing pin slips into another hole on the
same side of the handle, before using this device, ensure that it is fully engaged into
this hole.
To fold the handle
1. This operating procedure is the same as above mentioned.
2. The difference is turning the handle downward.
Fig. 6
Attach high pressure hose from hose reel to the gun wand, hand tighten until two parts
are locked.
