11
Recommendation for spray tip usage:
White
40°
Can be used to
clean wide areas
faster than the 15
degree nozzle
Black Turbo
Low pressur
e
To apply
detergent
Yellow
15°
Can be used to
clean concrete.

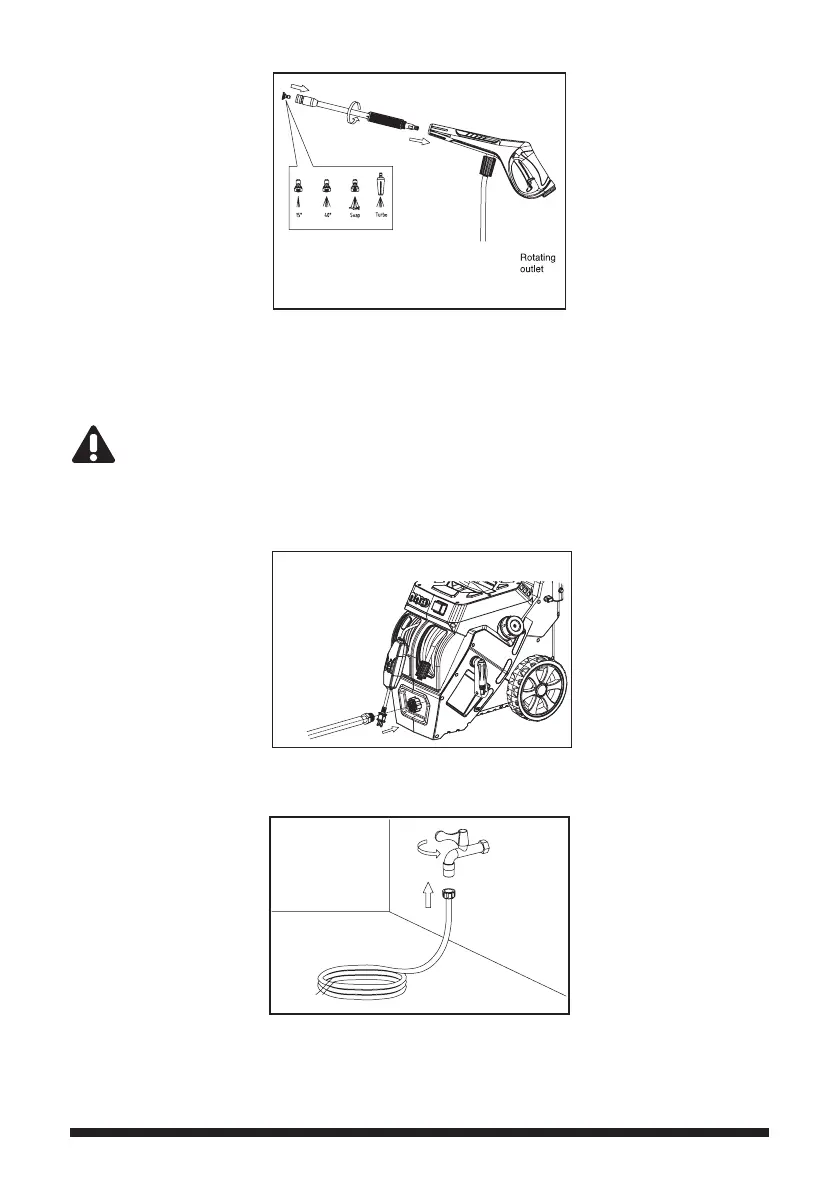

Fig. 7
Attach desired color coded spray tip to quick - connect wand by pushing to ensure it is
clicked in securely. Insert quick–connect wand into the gun wand, hand tighten until two
parts are locked.
CAUTION
Placing any spray tip too close to a surface can result in permanent
damage to the surface being sprayed. Maintain at least a 24” distance
between the tip and the surface being sprayed until you have determined
it is safe to move the tip closer to the surface.
Fig. 8
Attach the garden hose to the water inlet (hand tighten only).
Fig. 9
Attach garden hose to water supply and turn water valve on to the fall on position. The
water temperature must not exceed 40
o
C(104
o
F) and the supply pressure must be
between 40 to 80 PSI.
