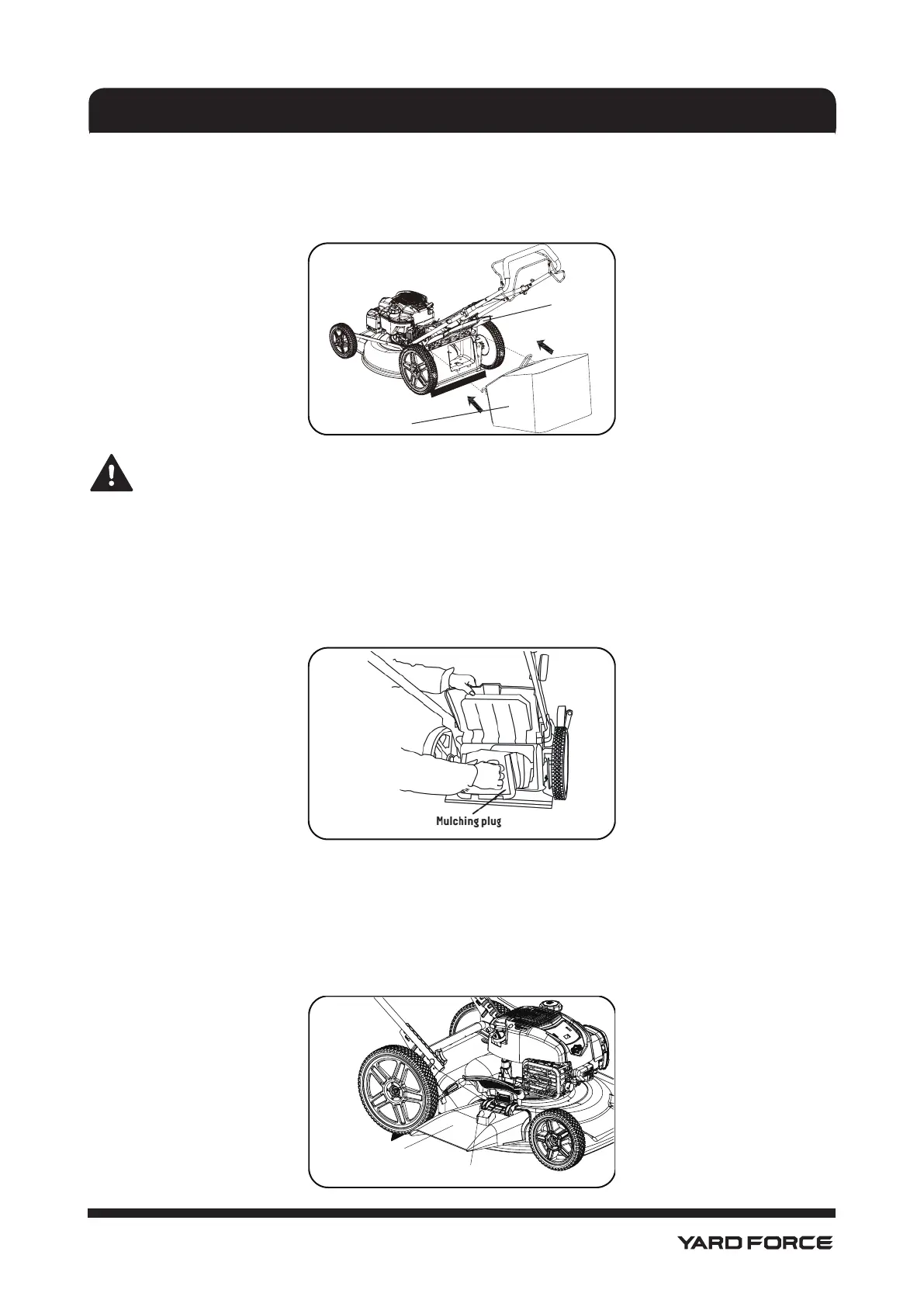

ATTACHING THE GRASS BAG TO THE MOWER
As shown in Fig. 7
Fig. 7
Rear chute flap
Grass bag
NOTE: Never install or remove the grass bag, mulching plug or side discharge chute while the
engine is running.
1. Lift the rear chute flap with one hand and hook in the grass bag, make sure the mulching plug be
removed.
2. Release the rear chute flap to secure the grass bag in position.
INSTALLING THE MULCHING PLUG
As shown in Fig. 8
Fig. 8
1. Remove the grass bag.
2. Push the mulching plug into the discharge chute until it is locked in position.
3. Release the rear chute flap. It will close back to cover the mulching plug.
INSTALLLING THE SIDE DISCHARGE CHUTE
As shown in Fig. 9
ASSEMBLY
Side discharge chute
Side discharge cover
Fig. 9
