9
Hotline: 1-866-902-9690

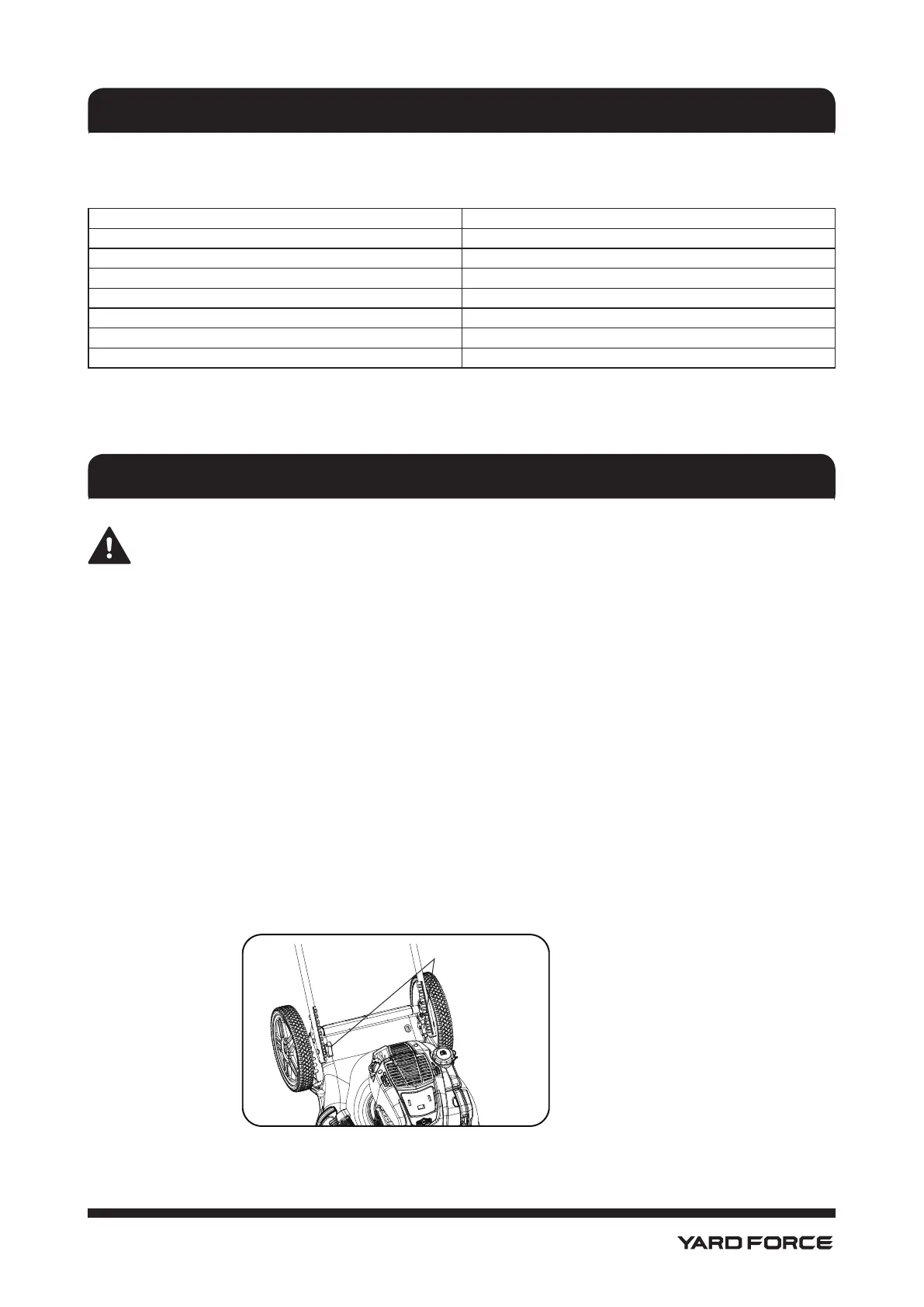

TECHNICAL SPECIFICATIONS
Engine type Single cylinder 4-stroke
Engine displacement 163 cc
Engine speed 3100±100 RPM
Cutting path 21” (53 cm)
Grass bag capacity 16 Gallon (60 L)
Height adjustments 1.25" - 3.75"(32-95 mm)
Front wheel diameter 8” (20 cm)
Rear wheel diameter 12” (30 cm)
TECHNICAL SPECIFICATIONS
CAUTION! Read complete INSTRUCTION MANUAL before operating this machine.
IMPORTANT! THIS LAWN MOWER IS SHIPPED WITHOUT OIL OR GASOLINE IN THE ENGINE.
Your new lawn mower has been assembled at the factory with the exception of those parts left
disassembled for shipping purposes. All parts, such as nuts, washers, bolts, etc., necessary to complete the
assembly have been placed in the parts bag. To ensure safe and proper operation of your lawn mower, all
parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to ensure
proper tightness.
TO REMOVE LAWN MOWER FROM CARTON
1. Remove loose parts included with mower.
2. Cut down two end corners of carton and lay end panel down flat.
3. Remove all packing materials except padding between upper and lower handle and padding holding
control bars to upper handle.
4. Roll lawn mower out of carton and check carton thoroughly for additional loose parts.
ASSEMBLING THE HANDLE
As shown in Figs. 3 and 4
ASSEMBLY
Handle knob and bolt
Fig. 3
To Next Page
