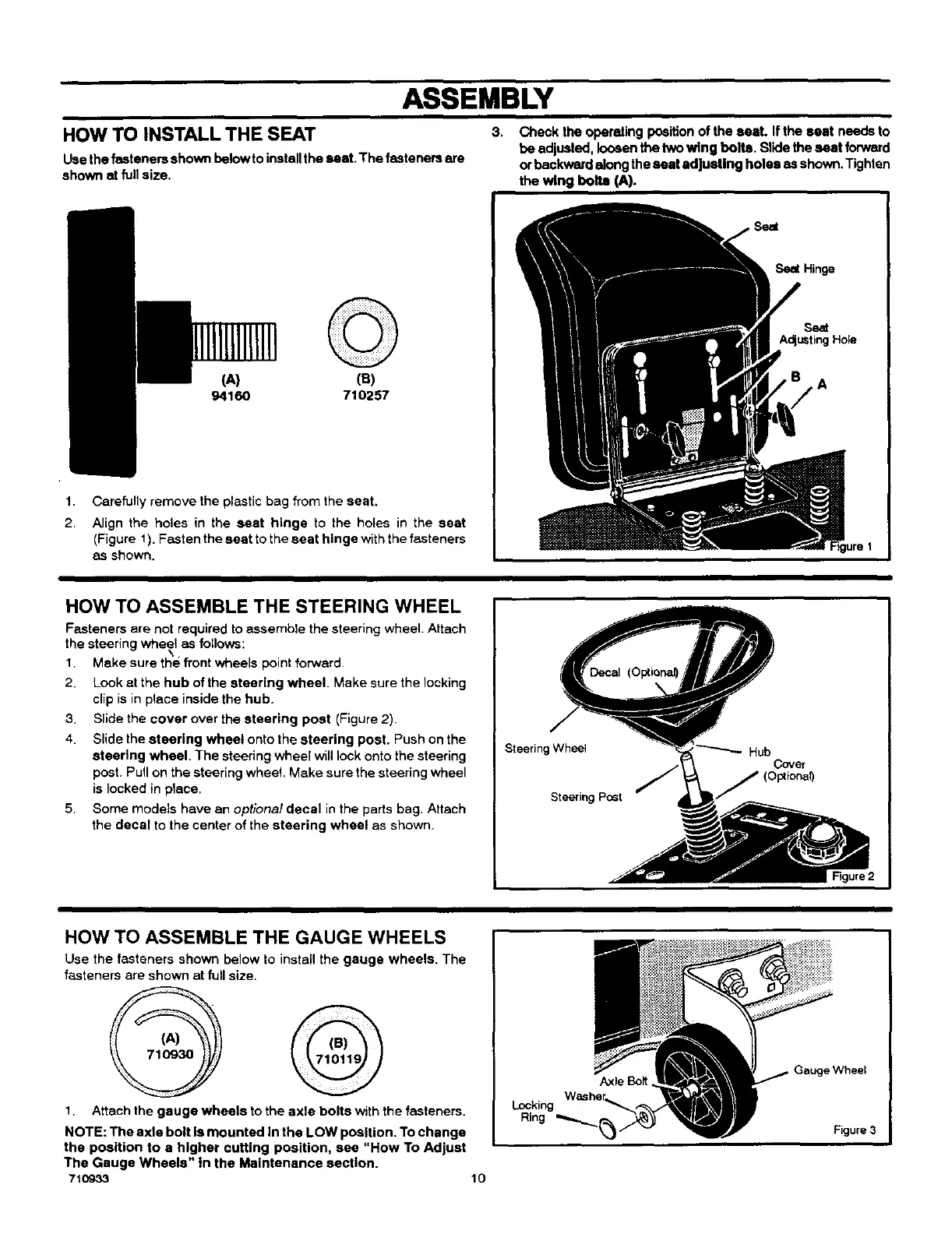

ASSEMBLY
3.
HOW TO INSTALL THE SEAT
Use the fasteners shown belowto installthe seat. The fasteners ere
shown at full size,
Check the operating positionof the seat. If the seat needs to
be adjusted, loosenthe two wing bolts. Slide the seat forward
orbackward along theseat adjusting holes as shown. Tighten
the wing bolt_ (A).
1.
2.
(A) (B)
94160 710257
Carefully remove the plastic bag from the seat.
Align the holes in the seat hinge to the holes in the seat
(Figure 1). Fasten the seat to the seat hinge withthe fasteners
as shown.
Seat
Seal Hinge
A
HOW TO ASSEMBLE THE STEERING WHEEL
Fasteners are not required to assemble the steering wheel. Attach
the steering wheel as follows:
1. Make sure the front wheels point forward.
2. Look at the hub of the steering wheel. Make sure the locking
clip is in piece inside the hub.
3. Slide the cover over the steering post (Figure 2).
4. Slide the steering wheel onto the steering poet. Push on the
steorlng wheel. The steering wheel will lock onto the steering
post. Pull on the steering wheel. Make sure the steering wheel
is locked in place.
5. Some models have an optional decal in the parts bag. Attach
the decal to the center of the steering wheel as shown.
Steering Wheel
Steering Post
Hub
Cover
(Optional)
HOW TO ASSEMBLE THE GAUGE WHEELS
Use the fasteners shown below to install the gauge wheels, The
fasteners are shown at full size.
1. Attach the gauge wheels to the axle bolts with the fasteners.
NOTE: The axle bolt Ismounted In the LOW position. To change
the position to a higher cutting position, see "How To Adjust
The Gauge Wheels" in the Maintenance section.
710933
Locking
Ring
10
Axle Bolt
.=Wheel
Figure 3
