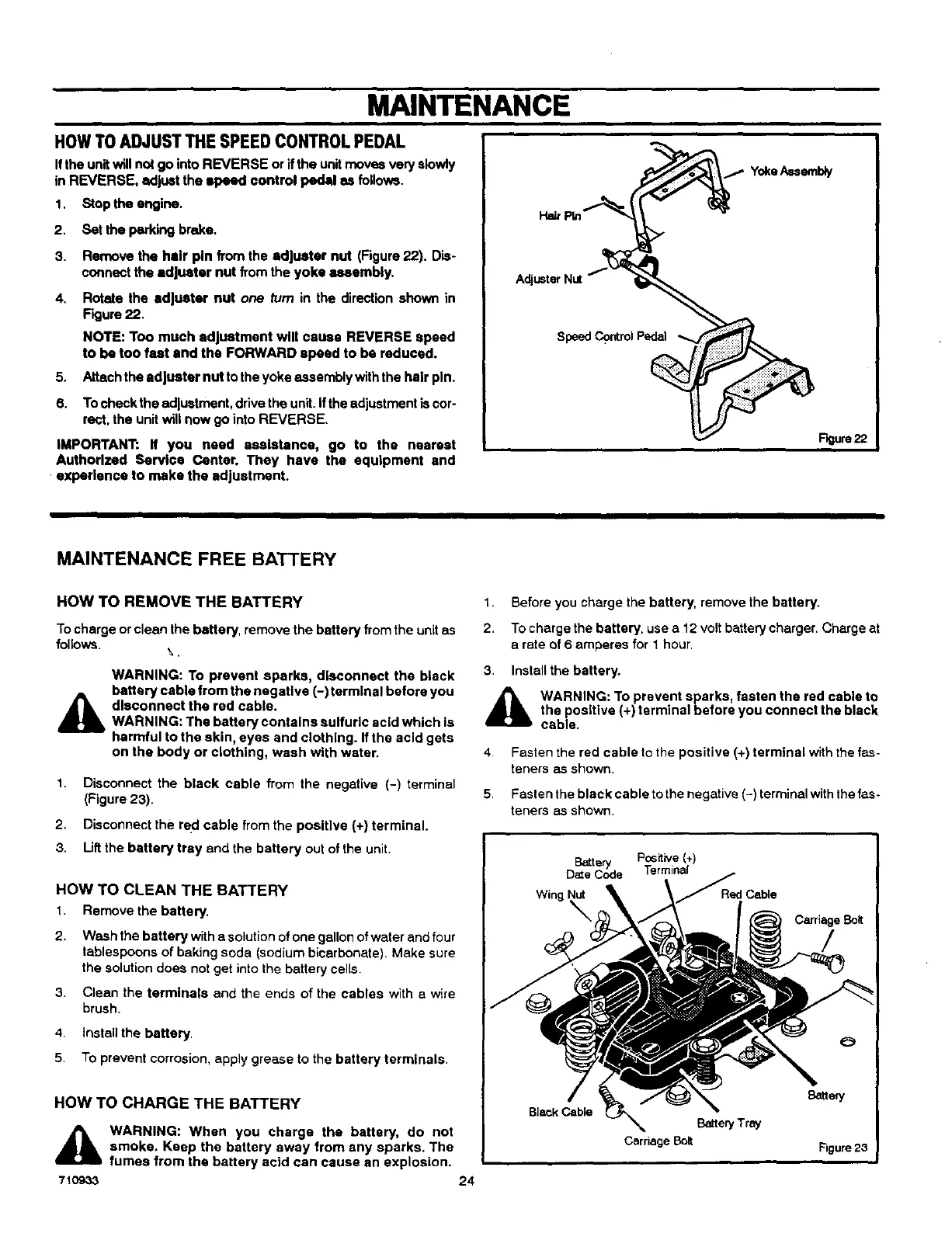

MAINTENANCE
HOWTO ADJUST THE SPEED CONTROLPEDAL
Ifthe unit will not go into REVERSE or ifthe unit moves very slowly
in REVERSE, adjust the speed control pedal as follows.
1. Stop the engine.
2. Set the parking brake.
3. Remove the hair pin from the adjuster nut (Figure 22). Dis-
connect the adjuster nut from the yoke assembly.
4. Rotate the adjuster nut one turn in the direction shown in
Figure 22.
NOTE: Too much adjustment will cause REVERSE speed
to be too fast end the FORWARD speed to be reduced.
5. Attachthe adjuster nut to the yoke assembly with the hair pin.
6. Tocheck the adjustment, drive the unit.ifthe adjustment is cor.
feet, the unit will now go into REVERSE.
IMPORTANT: If you need assistance, go to the nearest
Authorized Service Center. They have the equipment and
expedsnce to make the adjustment.
Hair
Speed Control Pedal
F_urs 22
MAINTENANCE FREE BATTERY
HOW TO REMOVE THE BATTERY
Tocharge or clean the battery, remove the battery fromthe unit as
follows.
WARNING: To prevent sparks, disconnect the black
battery cable from the negative (-) terminal before you
disconnect the red cable.
WARNING: The battery contains sulfuric acid which is
harmful to the skin, eyes and clothing. If the acid gets
on the body or clothing, wash with water.
1. Disconnect the black cable from the negative (-) terminal
(Figure 23).
2, Disconnect the recl cable from the positive (+) terminal.
3. Liftthe battery tray and the battery out of the unit.
HOW TO CLEAN THE BATTERY
1. Remove the battery.
2. Wash the battery with a solution of one gallon ofwater and four
tablespoons of baking soda (sodium bicarbonate). Make sure
the solution does not get into the battery cells.
3. Clean the terminals and the ends of the cables with a wire
brush.
4. Install the battery
5, To prevent corrosion, apply grease to the battery terminals
HOW TO CHARGE THE BATTERY
71O933
WARNING: When you charge the battery, do not
smoke. Keep the battery away from any sparks. The
fumes from the battery acid can cause an explosion.
24
1. Before you charge the battery, remove the battery.
2. Tocharge the battery, use a 12 volt battery charger. Charge at
a rate of 6 amperes for 1 hour.
3 Install the battery.
_lb WARNING: To prevent sparks, fasten the red cable to
the positive (+) terminal before you connect the black
cable.
4
5
Fasten the red cable to the positive (+) terminal with the fas-
teners as shown.
Fasten the black cable tothe negative (-) terminal withthe fas-
teners as shown,
Pc6itive (+)
I
Carriage Bolt
