OPERATION
ThrottleControl
Lever
Blade Rotation
Control
Brake Pedal
Speed
Control
P_ial
Figure 7

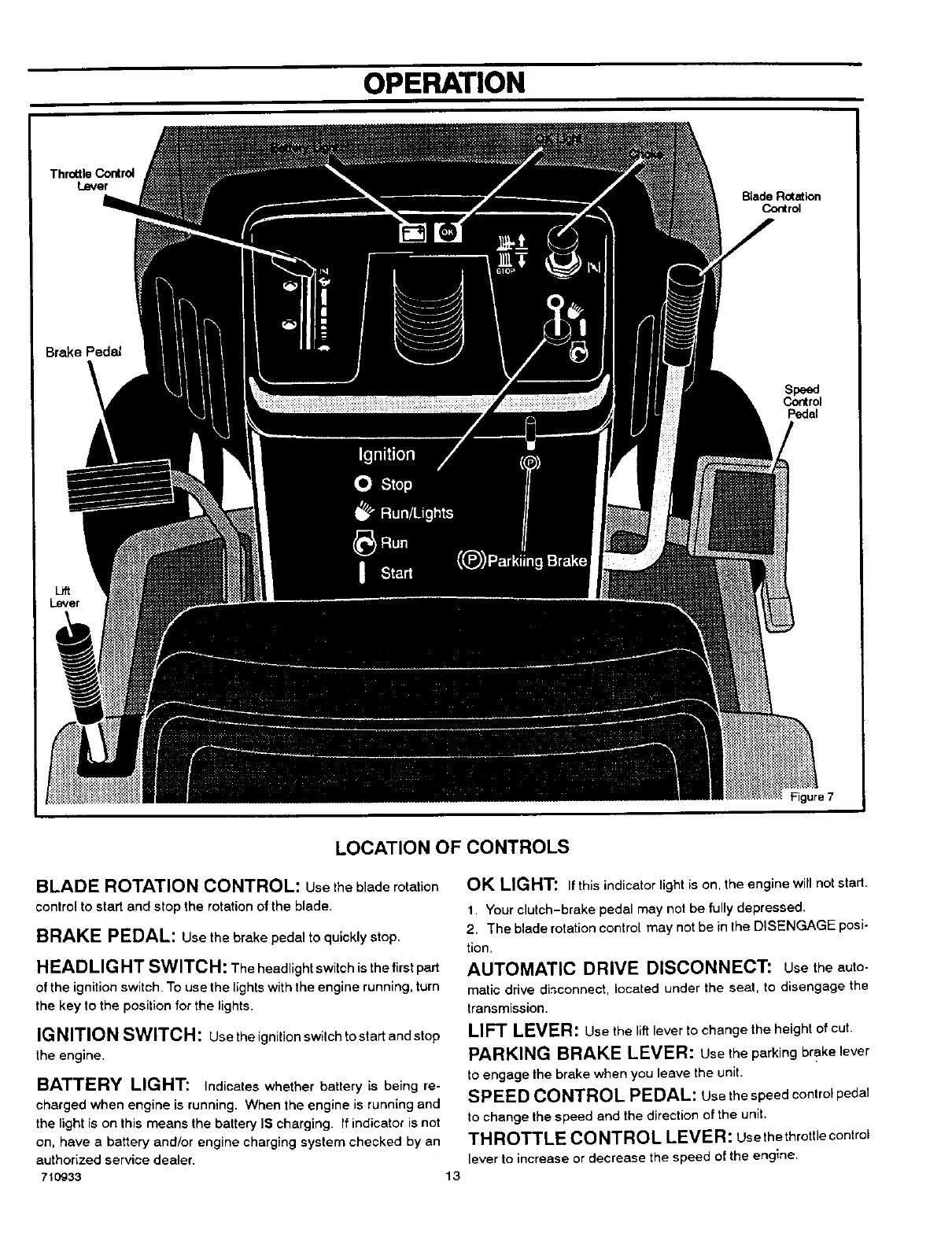

LOCATION OF CONTROLS
BLADE ROTATION CONTROL: Use the blade rotation
control to start and stop the rotationof the blade.
BRAKE PEDAL: Use the brake pedal toquickly stop.
HEADLIGHT SWITCH: The headlight switch isthefirst part
of the ignitionswitch. To use the lights with the engine running, turn
the key to the position for the lights.
IGNITION SWITCH: usetheignitionswitchtostartandstop
the engine,
BATTERY LIGHT: Indicates whether battery is being re-
charged when engine is running. When the engine is running and
the light is on this means the battery IS charging. If indicator is not
on, have a battery and/or engine charging system checked by an
authorized service dealer.
710933
OK LIGHT: Ifthisindicatorlightis on,theenginewillnotstart.
1. Your clutch-brake pedal may not be fully depressed.
2. The blade rotationcontrol may not be in the DISENGAGE posi-
tion.
AUTOMATIC DRIVE DISCONNECT: Usetheauto-
matic drive di,_connect,located under the seat, to disengage the
transmission.
LIFT LEVER: Use the liftlever to change the height of cut.
PARKING BRAKE LEVER: use theparkingbrake lever
to engage the brake when you leave the unit.
SPEED CONTROL PEDAL: Usethe speedcontrolpedal
to change the speed and the direction of the unit.
THROTTLE CO NTROL LEVER: usethe throttle control
lever to increase or decrease the speed of the engine,
