YARD KING PERFORMANCE 50562X89 - How to Install the Mower Housing

ASSEMBLY

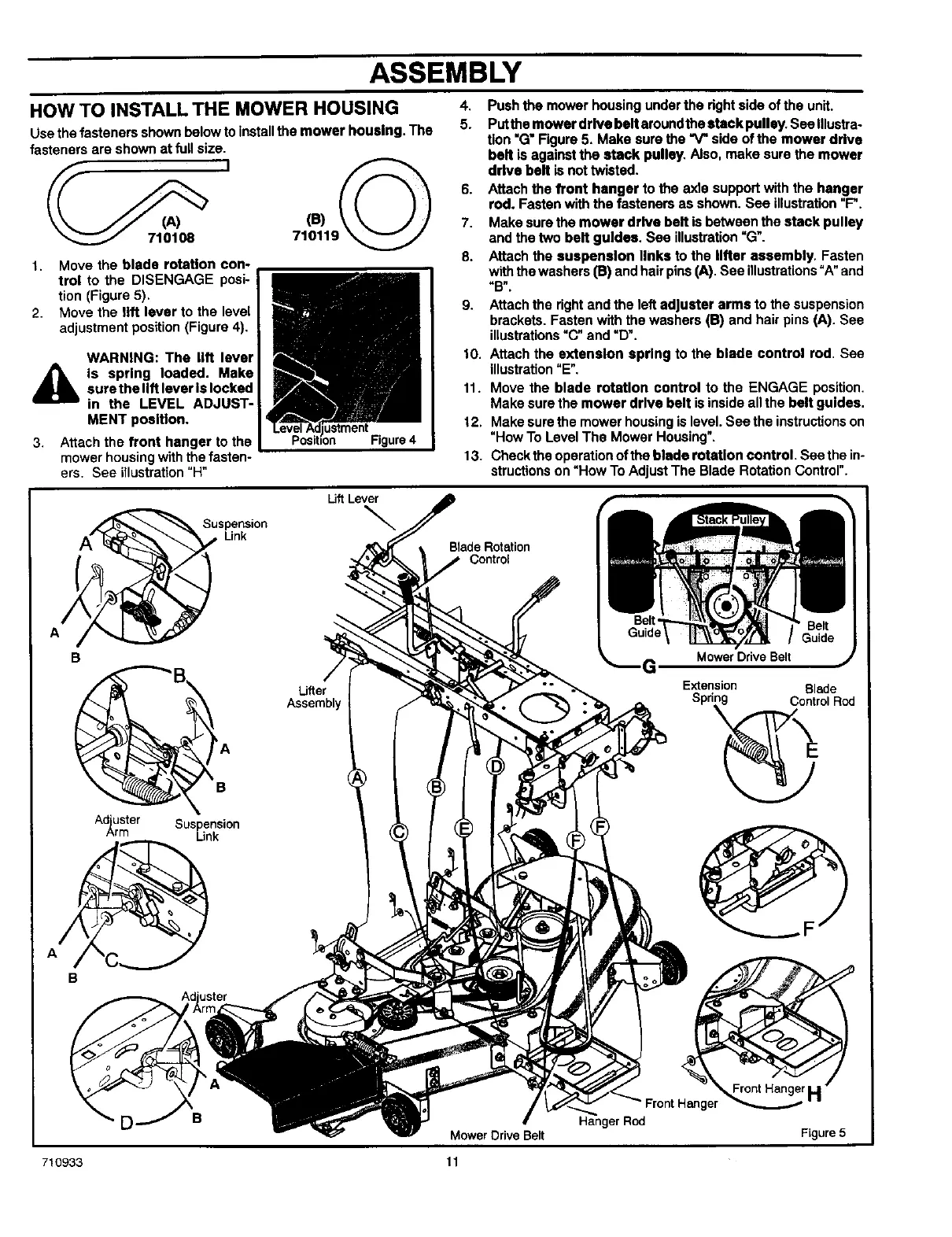

HOW TO INSTALL THE MOWER HOUSING
Use the fasteners shown below to Install the mower housing. The
fasteners are shown at full size.
I
1. Move the blade rotation con-
trol to the DISENGAGE posi-
tion (Figure 5).
2. Move the lift lever to the level
adjustment position (Figure 4).
WARNING: The lift lever
iS spring loaded. Make
sure the lift lever Is locked
in the LEVEL ADJUST-
MENT position.
3. Attach the front hanger to the
mower housing with the fasten-
ers. See illustration"H"
Figure 4
4. Push the mower housing under the dght side of the unit.
5. Putthe mower drive belt aroundthe stack pulley. See Illustra-
tion "G" Figure 5. Make sure the "V" side of the mower drive
belt is against the ldack pulley. Also, make sure the mower
drive belt is not twisted.
6. Attach the front hanger to the axle support with the hanger
rod. Fasten with the fasteners as shown. See illustration"F".
7. Make sure the mower drive beR is between the stack pulley
and the two belt guides. Sea illustration"G".
8. Attach the suspension links to the lifter assembly. Fasten
withthe washers (B) and hair pins (A). See illustrations"A"and
"B".
9. Attach the rightend the left adjuster arms to the suspension
brackets. Fasten with the washers (13)and hair pins (A). See
illustrations"C" and "D".
10. Attach the extension spring to the blade control rod. See
illustration"E".
11. Move the blade rotstlon control to the ENGAGE position.
Make sure the mower drive belt is inside allthe belt guides.
12. Make surethe mower housingis level. See the instructionson
"How To Level The Mower Housing".
13. Check the operation of the blade rotstlon control. See the in-
structions on "How To Adjust The Blade Rotation Control".
B
Ad'uster
_rm
Suspension
Link
P'A
B
Suspension
Link
Lift Lever
\
Lifter
Assernbl
Blade Rotation
Control
Mower Drive Belt
Extension Blade
Spd_rol Rod
D B
uster
Hanger Rod
Front_
Figure 5
Mower Drive Belt
710933 11
