MAINTENANCE
HOW TO REPLACE THE PRIMARY
MOWER DRIVE BELT
1. Remove the mower housing. _ the instructionson "HowTo
Remove The Mower Housing'.
2. Remove the two _rews from the left pulley cover. Remove
the pulley cover.
3. Pullthe belt retainer away from the idler pulley, Remove the
primly mower ddve belt from the Idler pulley,
4. Move the brake pad membly sway from the stack pulley.
Remove the primary mower drive belt from the stack pulley.
NOTE: Replace the pdmary mower drive belt with an
original equipment belt. See an authorized service center
In your are-,.
5. Install s newprlm_,ry mower drive belt. Pull the brake pad as-
sembly away from the stack pulley. Put the belt around the
stack pulley. Make sure the primary mower drive belt is in.
side of the belt guide.
6. Pull the belt retainer away from the Idler pulley. Put the fiat
side of the primary mower ddve belt around the idler pulley.
7. Make sure the "V" side of the primary mower drive belt is
against the mandrel pulleys as shown.
8. Make sure the primary mower drive belt is inside all the belt
guides.
9. Assemble the left pulley cover.
10. Installthe mower housing. See the instructions on "HowTo In-
stall The Mower Housing'.
11. Before you mow, check the blade rotation control. See the in-
structions on "How To Adjust The Blade Rotation Control'.
\.
HOW TO REPLACE THE SECONDARY
MOWER DRIVE BELT
1. Remove the mower housing. See the instructionson "HowTo
Remove The Mower Housing'.
2. Remove the primary mower drive belt from the stack pulley.
3. Remove the twoscrews from the right pulley cover. Remove
the dght pulley cover.
4. Pull the Idler pulley away from the secondary mower drive
belt. Remove the belt from the Idler pulley.
5. Remove the secondary mower drive belt from the right man-
drel pulley.
6. Remove the secondary mower drive belt from the stack
pulley.
NOTE: Replace the secondary mower drive belt with an
original equipment belt. See an authorized service center
in your area.
7. Install s new secondary mower drive belt. Put the belt around
the bottom of the stack pulley. Make sure the secondary
mower drive belt is inside the belt guide next to the stack
pulley.
8, Put the secondary mower drive belt around the right drive
pulley.
g. Pull the idler pulley toward the front, installthe fiat side of the
secondary mower drive belt against the Idler pulley.
10. Make sure the "V"side of the secondary mower ddve bait is
around the right mandrel pulley.
11. Assemble the right pulley cover.
12. Put the primary mower drive belt around the stack pulley.
13. Install the mower housing. See the instructionson "How To In-
stall The Mower Housing'.
14. Before you mow, check the blade rotation control. See the in-
structionson "HowTo AdjustThe Blade Rotation Control'.

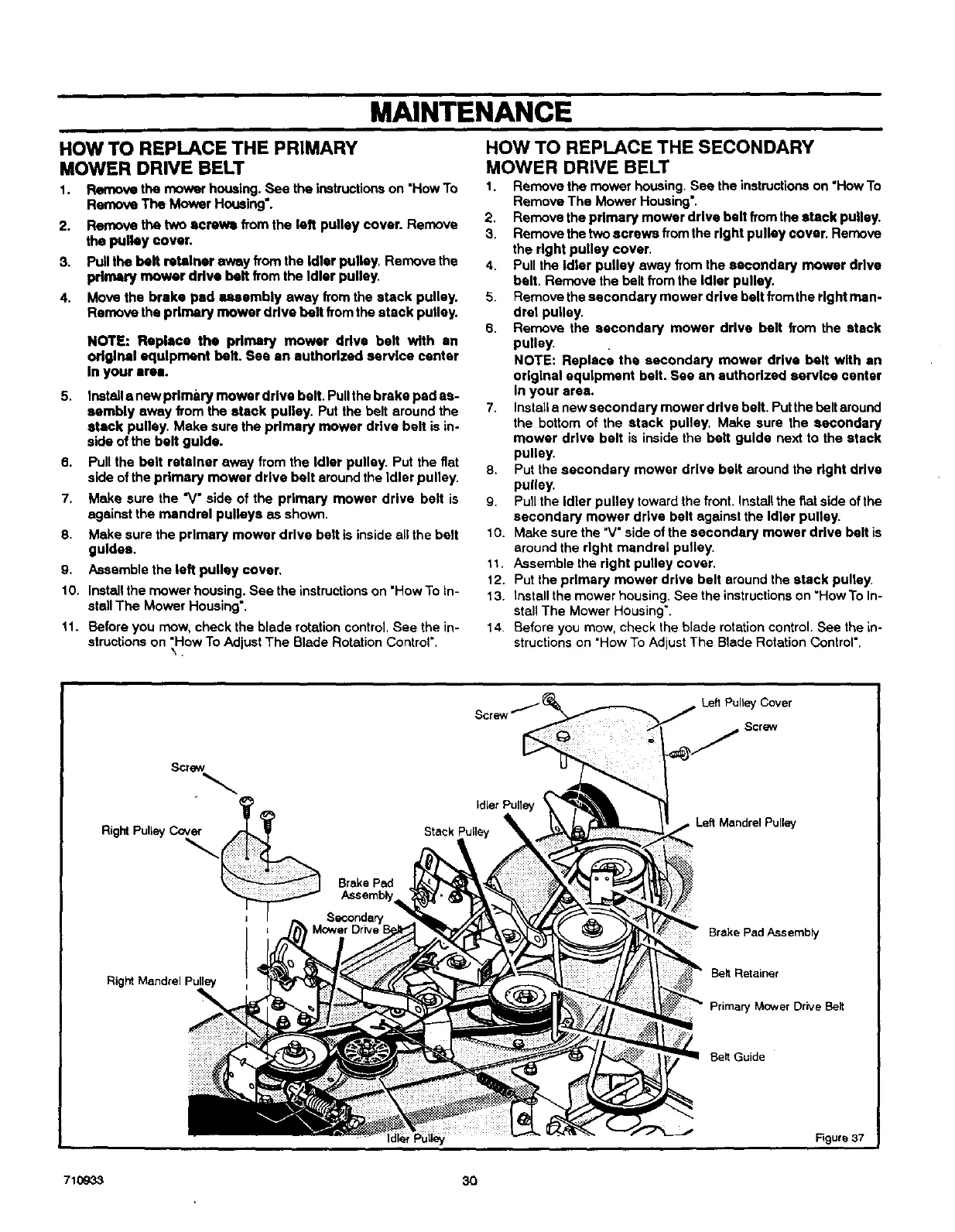

Left Pulley Cover
Screw
RightPulleyCover
Brake Pad
Left Mandrel Pulley
Brake Pad Assembly
Right Mandrel Pulley
Belt Retainer
Primary Mower Drive Belt
Belt Guide
Figure 37
710933 30
