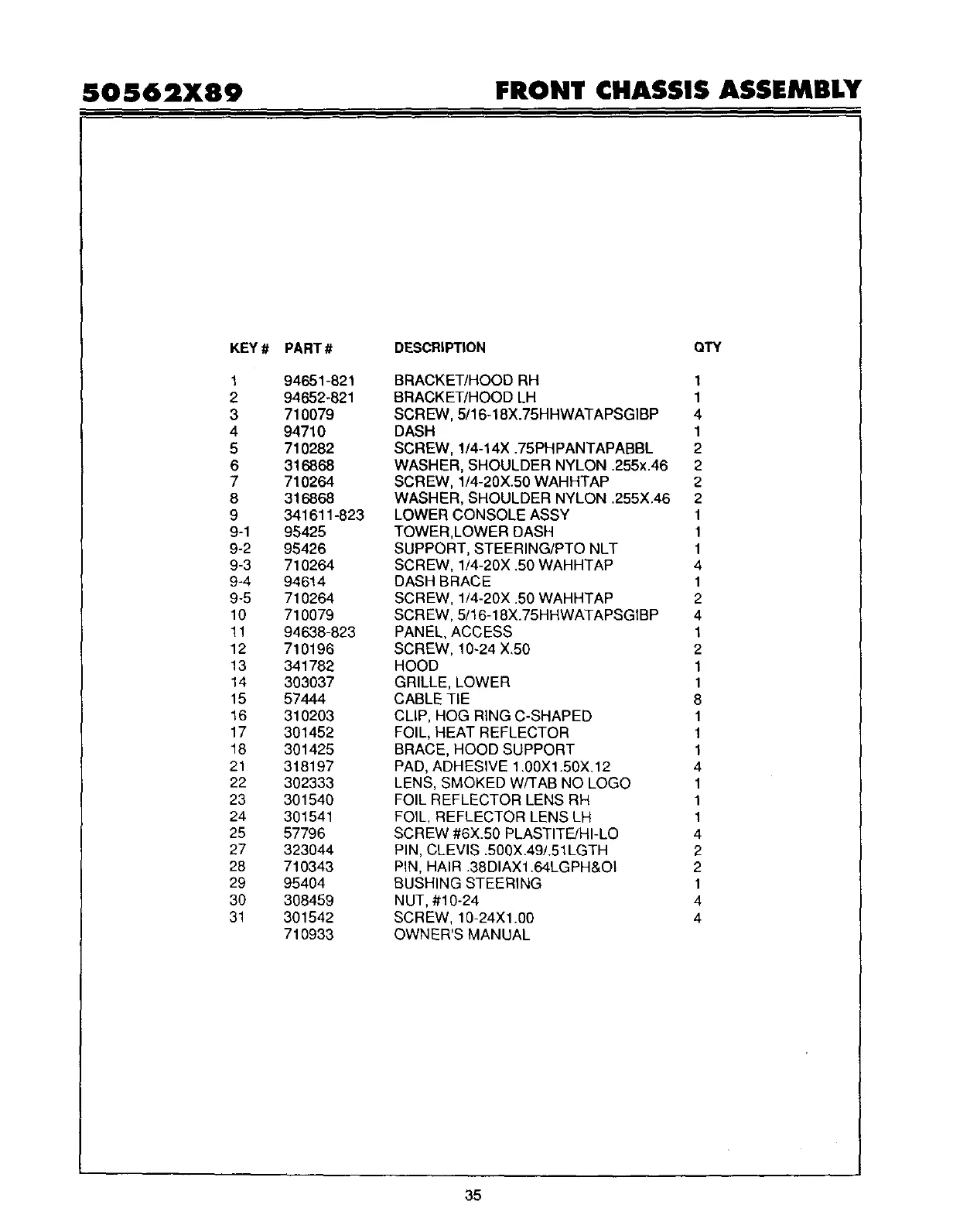

YARD KING PERFORMANCE 50562X89 - Front Chassis Assembly Parts

SOS62X89 FRONT CHASSIS ASSEMBLY
KEY #
1
2
3
4
5
6
7
8
9
9-1
9-2
9-3
9-4
9-5
10
11
12
13
14
15
16
17
18
21
22
23
24
25
27
28
29
30
31
PART #
94651-821
94652-821
710079
94710
710282
316868
710264
316868
341611-823
95425
95426
710264
94614
710264
710079
94638-823
710196
341782
303037
57444
310203
301452
301425
318197
302333
301540
301541
57796
323044
710343
95404
308459
301542
710933
DESCRIPTION QTY
BRACKET/HOOD RH 1
BRACKET/HOOD LH 1
SCREW, 5/16-18X.75HHWATAPSGIBP 4
DASH 1
SCREW, 1/4-14X .75PHPANTAPABBL 2
WASHER, SHOULDER NYLON .255x.46 2
SCREW, 1/4-20X.50 WAHHTAP 2
WASHER, SHOULDER NYLON .255X.46 2
LOWER CONSOLE ASSY 1
TOWER,LOWER DASH 1
SUPPORT, STEERING/PTO NLT 1
SCREW, 1/4-20X .50 WAHHTAP 4
DASH BRACE 1
SCREW, 1/4-20X .50 WAHHTAP 2
SCREW, 5/16-18X.75HHWATAPSGtBP 4
PANEL, ACCESS 1
SCREW, 10-24 X.50 2
HOOD 1
GRILLE, LOWER 1
CABLE TIE 8
CLIP, HOG RING C-SHAPED 1
FOIL, HEAT REFLECTOR 1
BRACE, HOOD SUPPORT 1
PAD, ADHESIVE 1.00X1.50X.12 4
LENS, SMOKED W/TAB NO LOGO 1
FOIL REFLECTOR LENS RH 1
FOIL, REFLECTOR LENS LH 1
SCREW #6X.50 PLASTITE/HI-LO 4
PIN, CLEVIS .500X.49/.51LGTH 2
PiN, HAIR .38DIAX1.64LGPH&OI 2
BUSHING STEERING 1
NUT, #10-24 4
SCREW, 10-24X1.00 4
OWNER'S MANUAL
