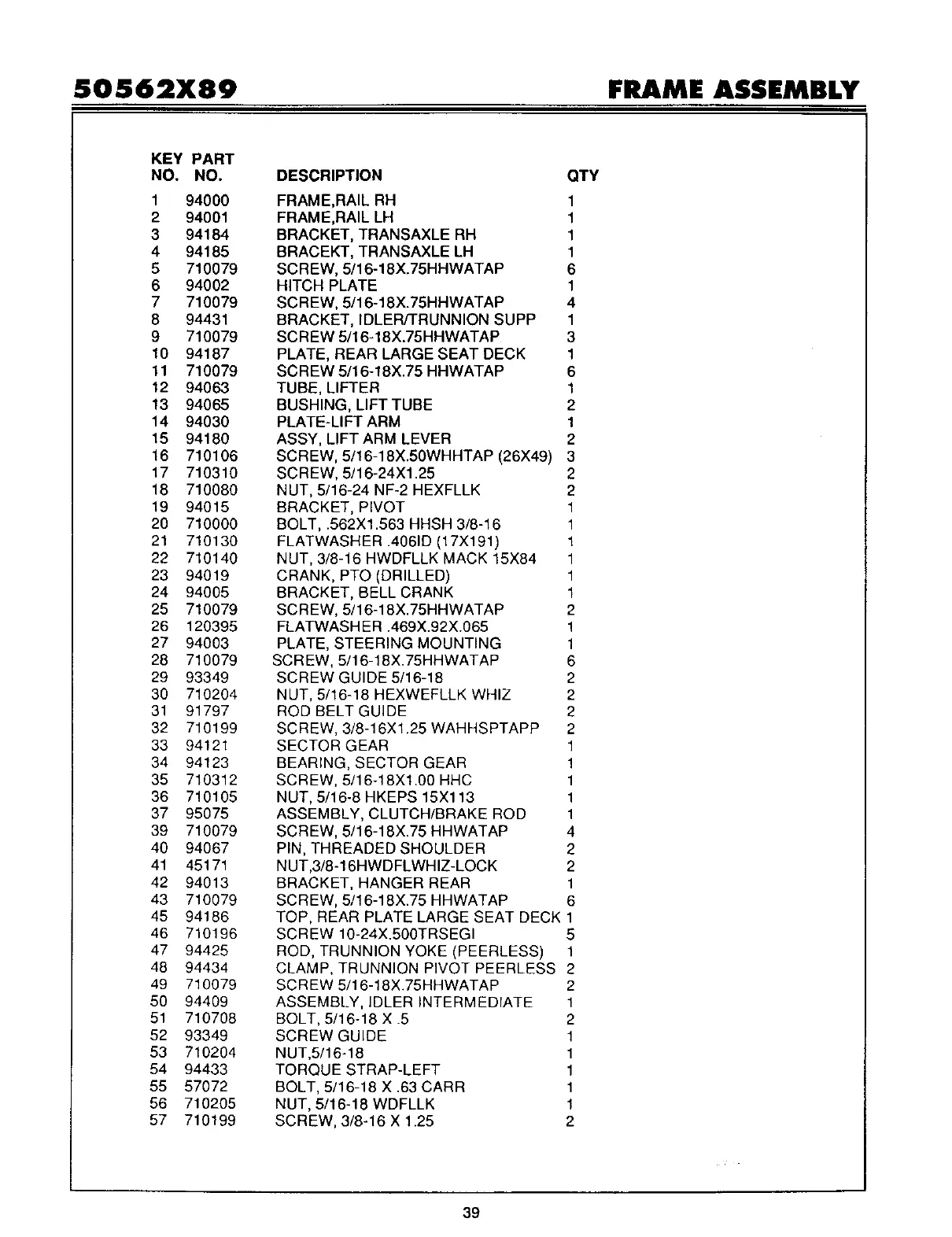

YARD KING PERFORMANCE 50562X89 - Page 39

SOS62X89 FRAME ASSEMBLY
KEY PART
NO. NO.
1 94000
2 94001
3 94184
4 94185
5 710079
6 94002
7 710079
8 94431
9 710079
10 94187
11 710079
12 94063
13 94065
14 94030
15 94180
16 710106
17 710310
18 710080
19 94015
20 710000
21 710130
22 710140
23 94019
24 94005
25 710079
26 120395
27 94003
28 710079
29 93349
30 710204
31 91797
32 710199
33 94121
34 94123
35 710312
36 710105
37 95075
39 710079
40 94067
41 45171
42 94013
43 710079
45 94186
46 710196
47 94425
48 94434
49 710079
50 94409
51 710708
52 93349
53 710204
54 94433
55 57072
56 710205
57 710199
DESCRIPTION QTY
FRAME,RAIL RH 1
FRAME,RAIL LH 1
BRACKET, TRANSAXLE RH 1
BRACEKT, TRANSAXLE LH 1
SCREW, 5/16-18X.75HHWATAP 6
HITCH PLATE 1
SCREW, 5/16-18X.75HHWATAP 4
BRACKET, IDLER/TRUNNION SUPP 1
SCREW 5/16-18X.75HHWATAP 3
PLATE, REAR LARGE SEAT DECK 1
SCREW 5/16-18X.75 HHWATAP 6
TUBE, LIFTER 1
BUSHING, LIFT TUBE 2
PLATE-LIFT ARM 1
ASSY, LIFT ARM LEVER 2
SCREW, 5/16-18X.50WHHTAP (26X49) 3
SCREW, 5/16-24Xl.25 2
NUT, 5/16-24 NF-2 HEXFLLK 2
BRACKET, PIVOT 1
BOLT, .562X1.563 HHSH 3/8-16 1
FLATWASHER .4061D (17X191 ) 1
NUT, 3/8-16 HWDFLLK MACK 15X84 1
CRANK, PTO (DRILLED) 1
BRACKET, BELL CRANK 1
SCR EW, 5/16-18X.75HHWATAP 2
FLATWASH ER .469X.92X.065 1
PLATE, STEERING MOUNTING 1
SCR EW, 5/16-18X.75HHWATAP 6
SCREW GUIDE 5/16-18 2
NUT, 5/16-18 HEXWEFLLK WHIZ 2
ROD BELT GUIDE 2
SCREW, 3/8-16X1.25 WAHHSPTAPP 2
SECTOR GEAR 1
BEARING, SECTOR GEAR 1
SCREW, 5/16-18X1.00 HHC 1
NUT, 5/16-8 HKEPS 15X113 1
ASSEMBLY, CLUTCH/BRAKE ROD 1
SCREW, 5/16-18X.75 HHWATAP 4
PIN, THREADED SHOULDER 2
NUT,3/8-16HWDFLWHIZ-LOCK 2
BRACKET, HANGER REAR 1
SCREW, 5/16-18X.75 HHWATAP 6
TOP, REAR PLATE LARGE SEAT DECK 1
SCREW 10-24X.500TRSEGI 5
ROD, TRUNNION YOKE (PEERLESS) 1
CLAMP, TRUNNION PIVOT PEERLESS 2
SCR EW 5/16-18X.75HHWATAP 2
ASSEMBLY, IDLER INTERMEDIATE 1
BOLT, 5/16-18 X .5 2
SCREW GUIDE 1
NUT,5/16-18 1
TORQUE STRAP-LEFT 1
BOLT, 5/16-18 X .63 CARR 1
NUT, 5/16-18 WDFLLK 1
SCREW, 3/8-16 X 1.25 2
