YARD KING PERFORMANCE 50562X89 - Page 47

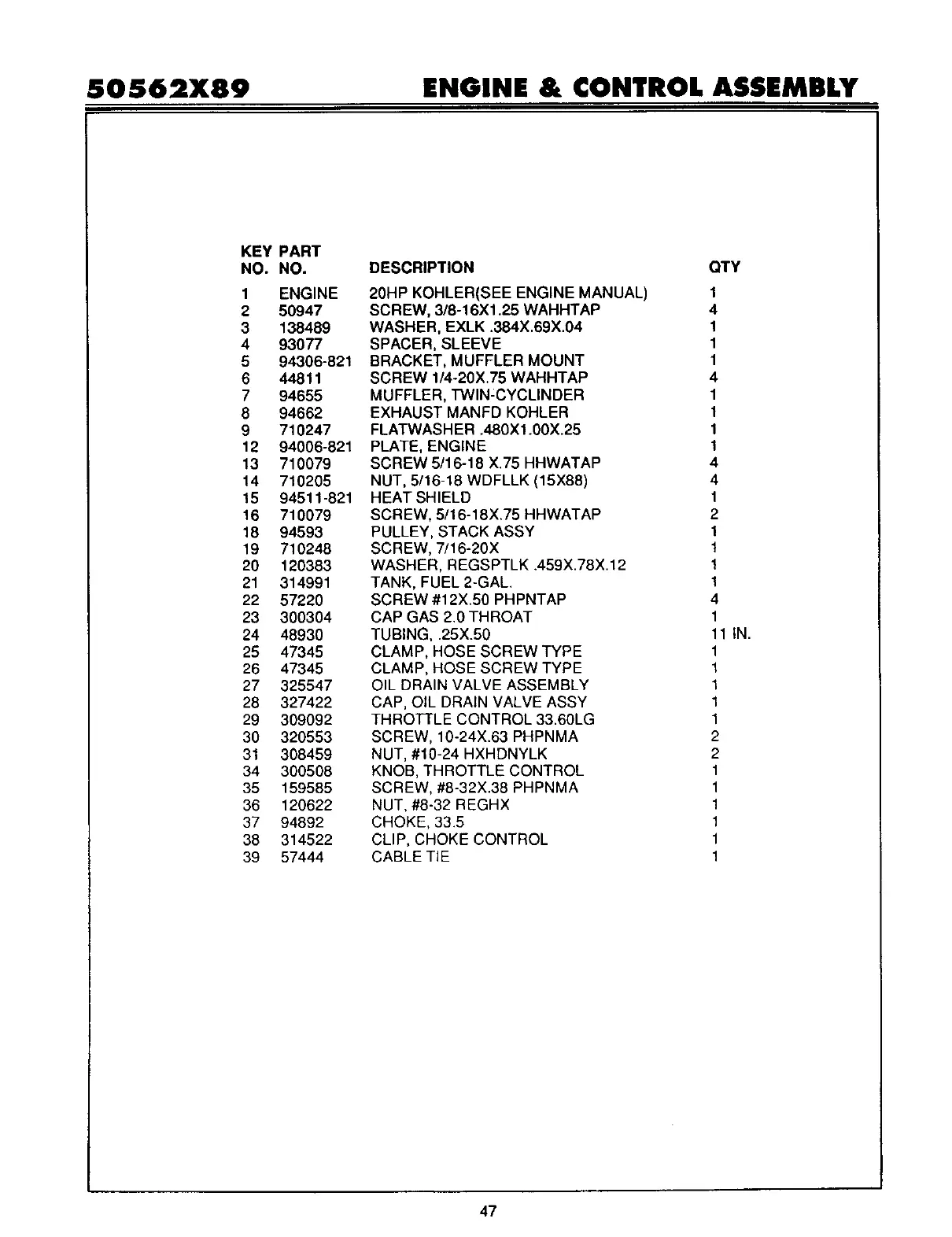

50562X89 ENGINE & CONTROL ASSEMBLY
KEY
NO.
1
2
3
4
5
6
7
8
9
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
29
30
31
34
35
36
37
38
39
PART
NO.
ENGINE
50947
138489
93077
94306-821
44811
94655
94662
710247
94006-821
710079
710205
94511-821
710079
94593
710248
120383
314991
57220
300304
48930
47345
47345
325547
327422
309092
320553
308459
300508
159585
120622
94892
314522
57444
DESCRIPTION CITY
20HP KOHLER(SEE ENGINE MANUAL) 1
SCREW, 3/8-16X1.25 WAHHTAP 4
WASHER, EXLK .384X.69X.04 1
SPACER, SLEEVE 1
BRACKET, MUFFLER MOUNT 1
SCREW 1/4-20X.75 WAHHTAP 4
MUFFLER, TWlN:CYCLINDER 1
EXHAUST MANFD KOHLER 1
FLATWASHER .480X1.00X.25 1
PLATE, ENGINE 1
SCREW 5/16-18 X.75 HHWATAP 4
NUT, 5/16-18 WDFLLK (15X88) 4
HEAT SHIELD 1
SCREW, 5/16-18X.75 HHWATAP 2
PULLEY, STACK ASSY 1
SCREW, 7/16-20X 1
WASHER, REGSPTLK .459X.78X.12 1
TANK, FUEL 2-GAL. 1
SCREW #12X.50 PHPNTAP 4
CAP GAS 2.0 THROAT 1
TUBING, .25X.50 11 IN.
CLAMP, HOSE SCREW TYPE 1
CLAMP, HOSE SCREW TYPE 1
OIL DRAIN VALVE ASSEMBLY 1
CAP, OIL DRAIN VALVE ASSY 1
THROTTLE CONTROL 33.60LG 1
SCREW, 10-24X.63 PHPNMA 2
NUT, #10-24 HXHDNYLK 2
KNOB, THROTTLE CONTROL 1
SCREW, #8-32X.38 PHPNMA 1
NUT, #8-32 REGHX 1
CHOKE, 33.5 1
CLIP, CHOKE CONTROL 1
1CABLE TIE
47
