YARD KING PERFORMANCE 50562X89 - Electrical Assembly Parts and Schematic

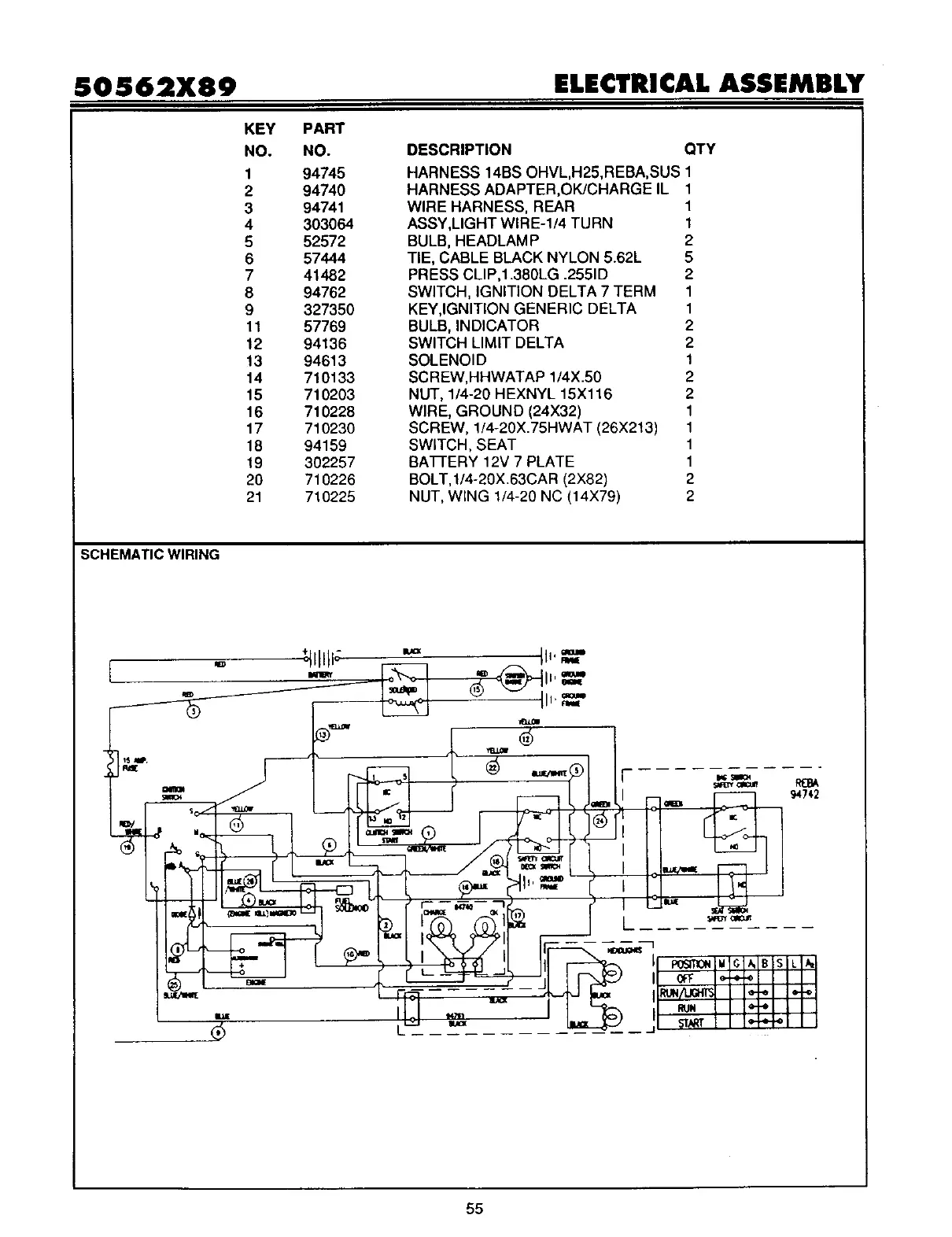

50562X89 ELECTRICAL ASSEMBLY
KEY PART
NO. NO.
1 94745
2 94740
3 94741
4 303064
5 52572
DESCRIPTION
OTY
HARNESS 14BS OHVL,H25,REBA, SUS 1
HARNESS ADAPTER,OK/CHARGE IL 1
WIRE HARNESS, REAR 1
ASSY,LIGHT WIRE-l/4 TURN 1
BULB, HEADLAM P 2
6 57444
7 41482
8 94762
9 327350
11 57769
12 94136
13 94613
14 710133
15 710203
16 710228
17 710230
18 94159
19 302257
20 710226
21 710225
TIE, CABLE BLACK NYLON 5.62L 5
PRESS CLIP,1.380LG .2551D 2
SWITCH, IGNITION DELTA 7 TERM 1
KEY,IGNITION GENERIC DELTA 1
BULB, INDICATOR 2
SWITCH LIMIT DELTA 2
SOLENOID 1
SCREW,HHWATAP 1/4X.50 2
NUT, 1/4-20 HEXNYL 15X116 2
WIRE, GROUND (24X32) 1
SCREW, 1/4-20X.75HWAT (26X213) 1
SWITCH, SEAT 1
BATFERY 12V 7 PLATE 1
BOLT,1/4-20X.63CAR (2X82) 2
NUT, WtNG 1/4-20 NC (14X79) 2
SCHEMATIC WIRING
55
