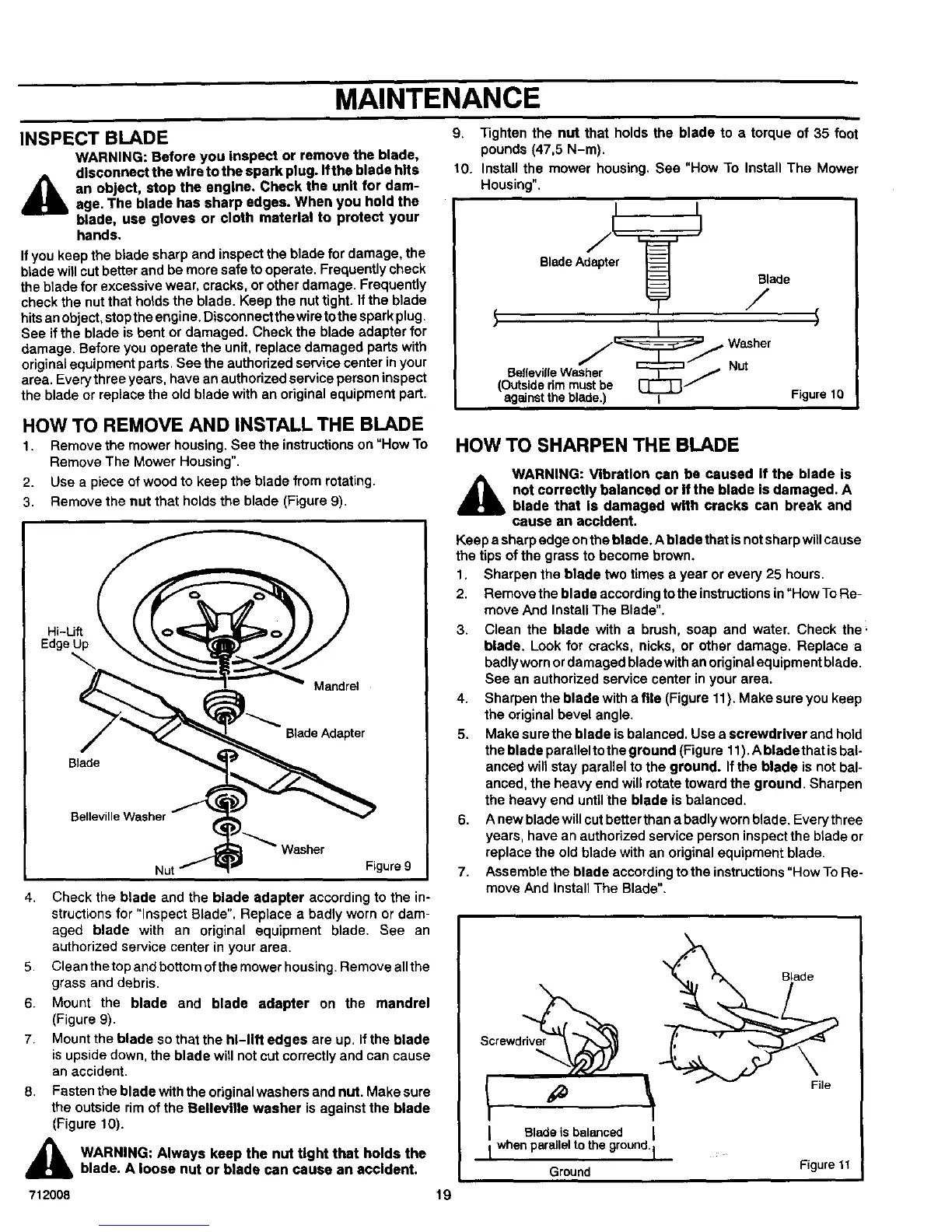

MAINTENANCE
INSPECT BLADE
WARNING: Before you inspect or remove the blade,
disconnect the wire to the spark plug. If the blade hits
_IL an object, stop the engine. Check the unit for dam-
age. The blade has sharp edges. When you hold the
blade, use gloves or cloth material to protect your
hands.
If you keep the blade sharp and inspect the blade for damage, the
blade willcut better and be more safe to operate. Frequently check
the blade for excessive wear, cracks, or other damage. Frequently
check the nut that holds the blade. Keep the nut tight. If the blade
hits an object, stop the engine. Disconnectthewire tothe spark plug.
See if the blade is bent or damaged. Check the blade adapter for
damage. Before you operate the unit, replace damaged parts with
original equipment parts. See the authorized service center in your
area. Every three years, have an authorized service person inspect
the blade or replace the old blade with an original equipment part.
HOW TO REMOVE AND INSTALL THE BLADE
1. Remove the mower housing. See the instructionson "How To
Remove The Mower Housing"
2. Use a piece of wood to keep the blade from rotating.
3. Remove the nut that holds the blade (Figure 9).
Hi-Uft
Edge Up
Mandrel
Blade
Blade Adapter
Belleville Washer
_/asher
Nut Figure 9
4.
5.
6.
7.
8.
A
Check the blade and the blade adapter according to the in-
structions for "Inspect Blade". Replace a badly worn or dam-
aged blade with an original equipment blade. See an
authorized service center in your area.
Clean the top and bottom of the mower housing. Remove allthe
grass and debris.
Mount the blade and blade adapter on the mandrel
(Figure 9).
Mount the blade so that the hi-lift edges are up. Ifthe blade
is upside down, the blade will not cut correctly and can cause
an accident.
Fasten the blade withthe originalwashers and nut. Make sure
the outside rim of the Bellevllle washer is against the blade
(Figure 10).
WARNING: Always keep the nut tight that holds the
blade. A loose nut or blade can cause an accident.
712008
9. "lighten the nut that holds the blade to a torque of 35 foot
pounds (47,5 N-m).
10. Install the mower housing. See "How To Install The Mower
Housing".
BladeA
Blade
W her
r Nut
Be,,eviUeWasher _J
(Outsiderim must be
againsttheblade.) I
Figure 10
HOW TO SHARPEN THE BLADE
WARNING: Vibration can be caused If the blade is
d_lb not correctly balanced or Ifthe blade is damaged. A
blade that is damaged with cracks can break and
cause an accident.
Keep a sharp edge onthe blade. A blade that is not sharp willcause
the tips of the grass to become brown.
1. Sharpen the blade two times a year or every 25 hours.
2. Remove the blade according to the instructionsin "How To Re-
move And Install The Blade".
3. Clean the blade with a brush, soap and water. Check the ;
blade, Look for cracks, nicks, or other damage. Replace a
badlyworn ordamaged bladewith an originalequipment blade.
See an authorized service center in your area.
4. Sharpen the blade with a file (Figure 11). Make sure you keep
the original bevel angle.
5. Make sure the blade isbalanced. Use a screwdriver and hold
the blade parallel tothe ground (Figure 11). A blade that isbal-
anced wilt stay parallel to the ground. If the blade is not bal-
anced, the heavy end will rotate toward the ground. Sharpen
the heavy end untilthe blade is balanced.
6. A new blade will cutbetter than a badly worn blade. Every three
years, have an authorized service person inspect the blade or
replace the old blade with an original equipment blade.
7. Assemble the blade according to the instructions "How To Re-
move And Install The Blade".
19
Screwdriv__
I Blade is balanced
when paraielto theground.
Ground Figure11
