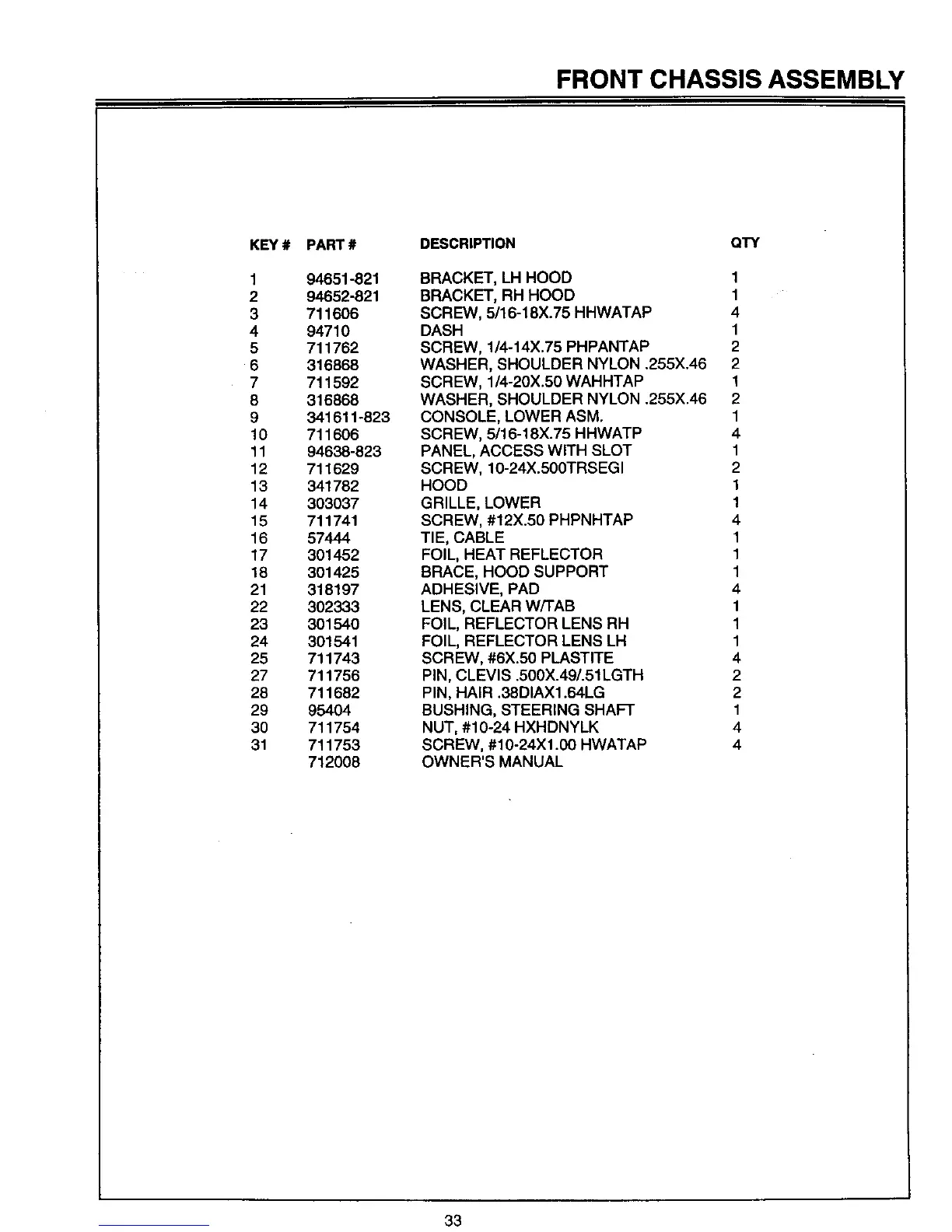

YARD KING Performance 50565x89 - FRONT CHASSIS ASSEMBLY

FRONT CHASSIS ASSEMBLY
KEY#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
21
22
23
24
25
27
28
29
30
31
PART#
94651-821
94652-821
711606
94710
711762
316868
711592
316868
341611-823
711606
94638-823
711629
341782
303037
711741
57444
301452
301425
318197
302333
301540
301541
711743
711756
711682
95404
711754
711753
712008
DESCRIPTION QTY
BRACKET, LH HOOD 1
BRACKET, RH HOOD 1
SCREW, 5116-18X.75 HHWATAP 4
DASH 1
SCREW, 1/4-14X.75 PHPANTAP 2
WASHER, SHOULDER NYLON .255X.46 2
SCREW, 1/4-20X.50 WAHHTAP 1
WASHER, SHOULDER NYLON .255X.46 2
CONSOLE, LOWER ASM. 1
SCREW, 5/16-18X.75 HHWATP 4
PANEL, ACCESS WITH SLOT 1
SCREW, 10-24X.500TRSEGI 2
HOOD 1
GRILLE, LOWER 1
SCREW, #12X.50 PHPNHTAP 4
TIE, CABLE 1
FOIL, HEAT REFLECTOR 1
BRACE, HOOD SUPPORT 1
ADHESIVE, PAD 4
LENS, CLEAR W/TAB 1
FOIL, REFLECTOR LENS RH 1
FOIL, REFLECTOR LENS LH 1
SCREW, #6X.50 PLASTITE 4
PiN, CLEVIS .500X.49/.51LGTH 2
PIN, HAIR .38DIAX1.64LG 2
BUSHING, STEERING SHAFT 1
NUT, #10-24 HXHDNYLK 4
SCREW, #10-24Xl .00 HWATAP 4
