YARD KING Performance 50565x89 - Page 35

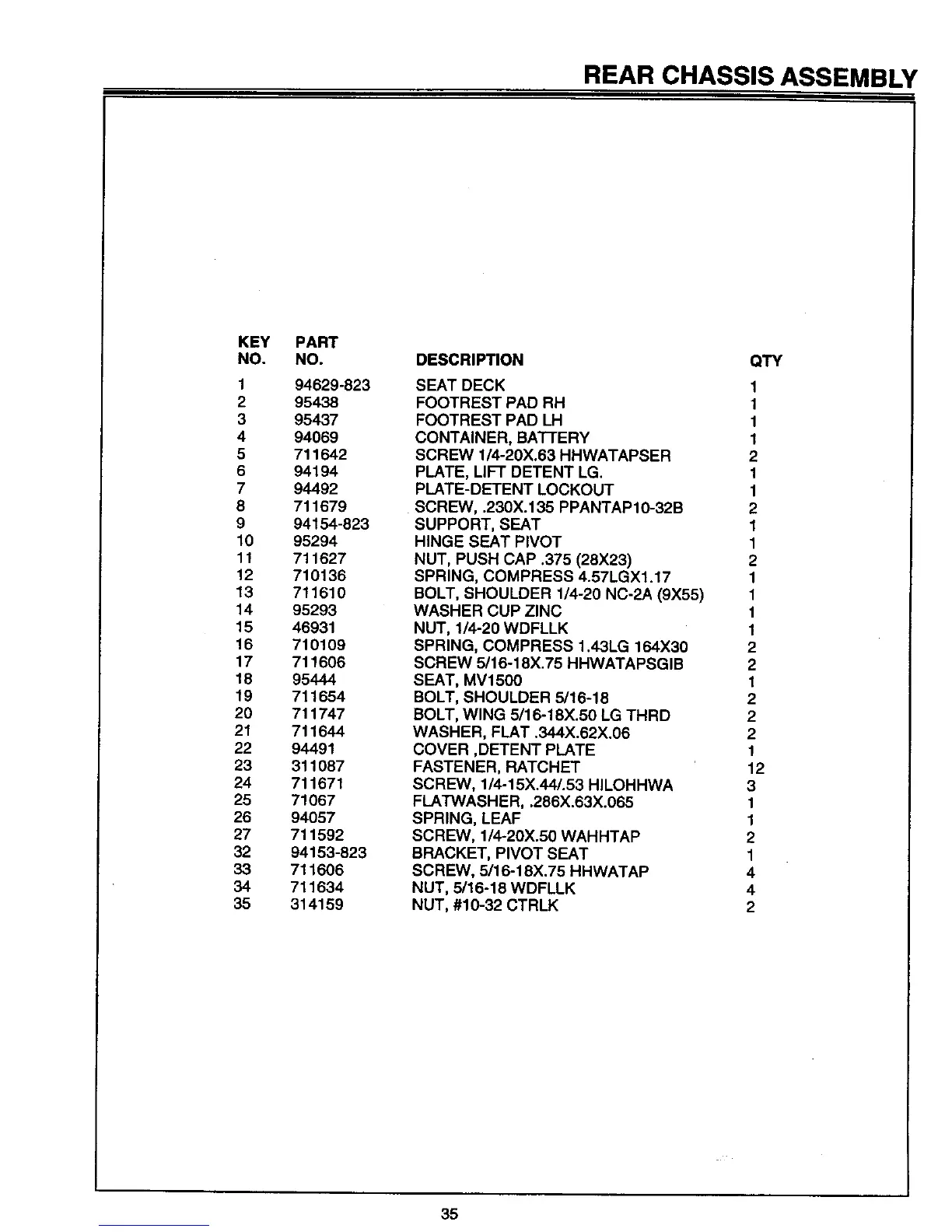

REAR CHASSIS ASSEMBLY
KEY
NO,
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
32
33
34
35
PART
NO.
94629-823
95438
95437
94069
711642
94194
94492
711679
94154-823
95294
711627
710136
711610
95293
46931
710109
711606
95444
711654
711747
711644
94491
311087
711671
71067
94057
711592
94153-823
711606
711634
314159
DESCRIPTION
SEAT DECK
FOOTREST PAD RH
FOOTREST PAD LH
CONTAINER, BATTERY
SCREW 1/4-20X.63 HHWATAPSER
PLATE, LIFT DETENT LG.
PLATE-DETENT LOCKOUT
SCREW, .230X.135 PPANTAP10-32B
SUPPORT, SEAT
HINGE SEAT PIVOT
NUT, PUSH CAP .375 (28X23)
SPRING, COMPRESS 4.57LGXl.17
BOLT, SHOULDER 1/4-20 NC-2A (9X55)
WASHER CUP ZINC
NUT, 1/4-20 WDFLLK
SPRING, COMPRESS 1.43LG 164X30
SCREW 5116-18X.75 HHWATAPSGIB
SEAT, MV1500
BOLT, SHOULDER 5/16-18
BOLT, WING 5/16-18X.50 LG THRD
WASHER, FLAT .344X.62X.06
COVER ,DETENT PLATE
FASTENER, RATCHET
SCREW, 1/4-15X.44/.53 HILOHHWA
FLATWASHER, .286X.63X.065
SPRING, LEAF
SCREW, 1/4-20X.50 WAHHTAP
BRACKET, PIVOT SEAT
SCREW, 5116-18X.75 HHWATAP
NUT, 5/16-18 WDFLLK
NUT, #10-32 CTRLK
QTY
1
1
1
1
2
1
1
2
1
1
2
1
1
1
1
2
2
1
2
2
2
1
12
3
1
1
2
1
4
4
2
35
