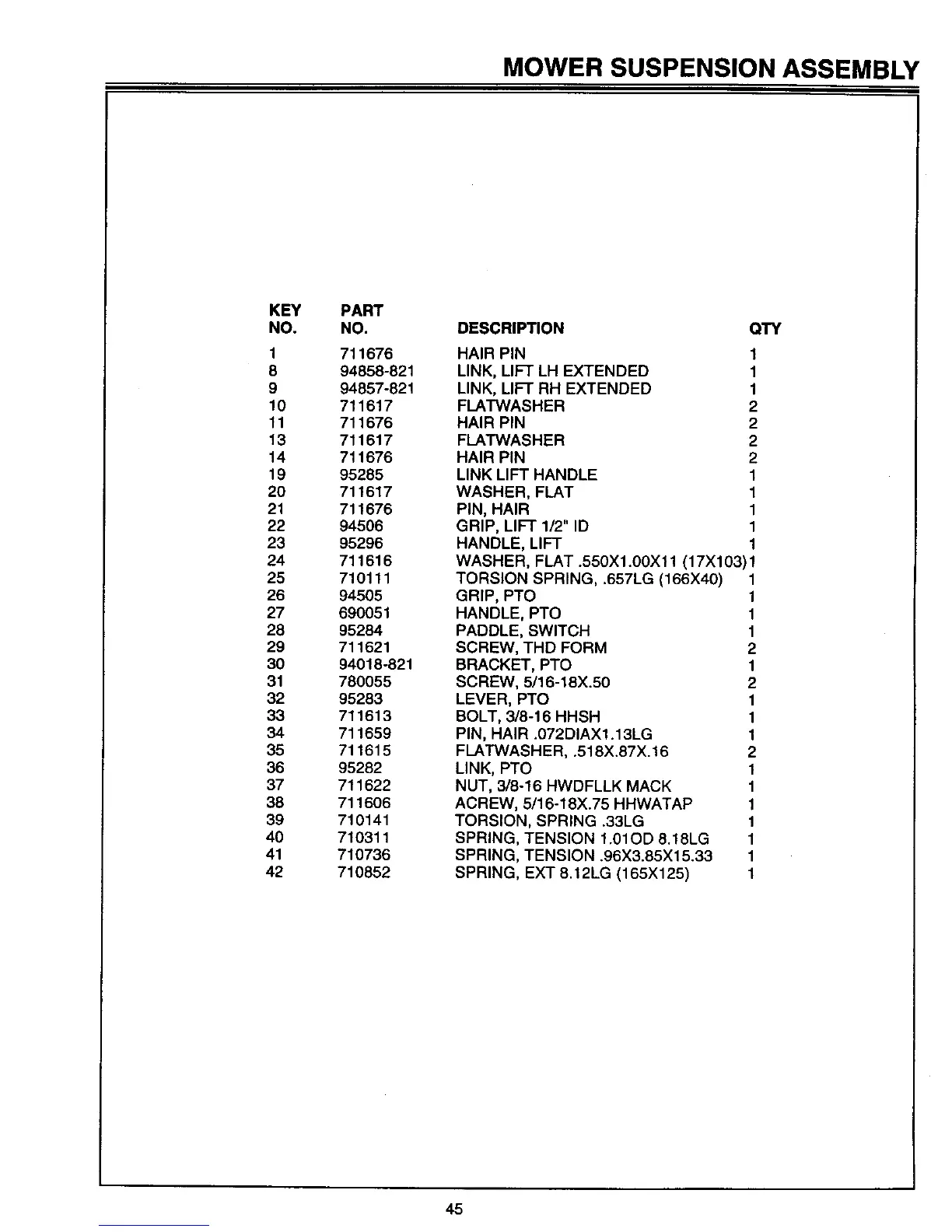

YARD KING Performance 50565x89 - Page 45

MOWER SUSPENSION ASSEMBLY
KEY
NO.
1
8
9
10
11
13
14
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
PART
NO.
711676
94858-821
94857-821
711617
711676
711617
711676
95285
711617
711676
94506
95296
711616
710111
94505
690051
95284
711621
94018-821
780O55
95283
711613
711659
711615
95282
711622
711606
710141
710311
710736
710852
DESCRIPTION QTY
HAIR PIN
LINK, LIFT LH EXTENDED
LINK, LIFT RH EXTENDED
FLATWASHER
HAIR PIN
FLATWASHER
HAIR PIN
LINK LIFT HANDLE
WASHER, FLAT
PIN, HAIR
GRIP, LIFT 1/2" ID
HANDLE, LIFT
1
1
1
2
2
2
2
1
1
1
1
1
WASHER, FLAT .550X1.00X11 (17X103) 1
TORSION SPRING, .657LG (166X40) 1
GRIP, PTO 1
HANDLE, PTO 1
PADDLE, SWITCH 1
SCREW, THD FORM 2
BRACKET, PTO 1
SCREW, 5/16-18X.50 2
LEVER, PTO 1
BOLT, 3/8-16 HHSH 1
PIN, HAIR .072DIAX1.13LG 1
FLATWASH ER, .518X.87X. 16 2
LINK, PTO 1
NUT, 3/8-16 HWDFLLK MACK 1
ACREW, 5/16-18X.75 HHWATAP 1
TORSION, SPRING .33LG 1
SPRING, TENSION 1.01OD 8.18LG 1
SPRING, TENSION .96X3.85X15.33 1
SPRING, EXT 8.12LG (165X125) 1
45
