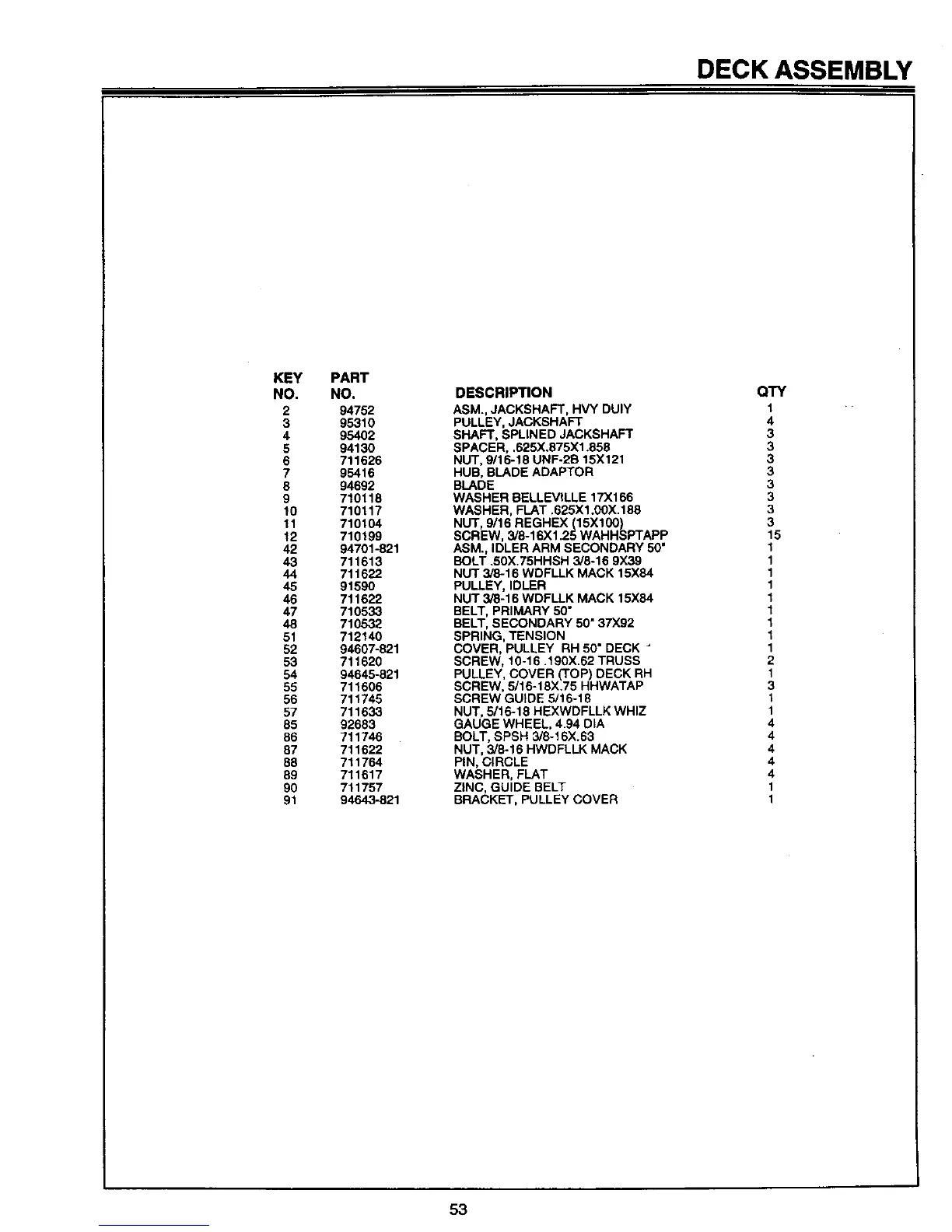

YARD KING Performance 50565x89 - Page 53

DECK ASSEMBLY
KEY
NO.
2
3
4
5
6
7
8
9
lo
11
12
42
43
44
45
46
47
48
51
52
53
54
55
56
57
85
86
87
88
89
90
91
PART
NO.
94752
95310
95402
94150
711626
95416
94692
710118
710117
710104
710199
94701-821
711613
711822
91590
711622
710533
710532
712140
94607-821
711620
94645-821
711606
711745
711633
92683
711746
711622
711764
711617
711757
94643-821
DESCRIPTION
ASM., JACKSHAFT, HVY DUlY
PULLEY, JACKSHAFT
SHAFT, SPLINED JACKSHAFT
SPACER, ,625X.875X1.858
NUT, 9/16-18 UNF-2R 15X121
HUB, BLADE ADAPTOR
BLADE
WASHER BELLEVILLE 17X166
WASHER, FLAT .625X1.00X.188
NUT, 9/16 REGHEX(15X100)
SCREW, 3/8-16X1.25 WAHHSPTAPP
ASM., IDLER ARM SECONDARY 50 =
BOLT .50X.75HHSH 3/6-16 9X39
NUT 3/8-16 WDFLLK MACK 15X84
PULLEY, IDLER
NUT 3/8-16 WDFLLK MACK 15X84
BELT, PRIMARY 50"
BELT, SECONDARY 50" 37X92
SPRING, TENSION
COVER, PULLEY RH 50" DECK
SCREW, 10-16.190X.62 TRUSS
PULLEY, COVER (TOP) DECK RH
SCREW, 5/16-18X.75 HHWATAP
SCREW GUIDE 5/16-18
NUT, 5/16-18 HEXWDFLLK WHIZ
GAUGE WHEEL, 4.94 DiA
BOLT, SPSH 3/8-16X.63
NUT, 3/8-18 HWDFLLK MACK
PIN, CIRCLE
WASHER, FLAT
ZINC, GUIDE BELT
BRACKET, PULLEY COVER
QTY
1
4
3
3
3
3
3
3
3
3
15
1
1
1
1
1
1
1
1
1
2
1
3
1
1
4
4
4
4
4
1
1
53
