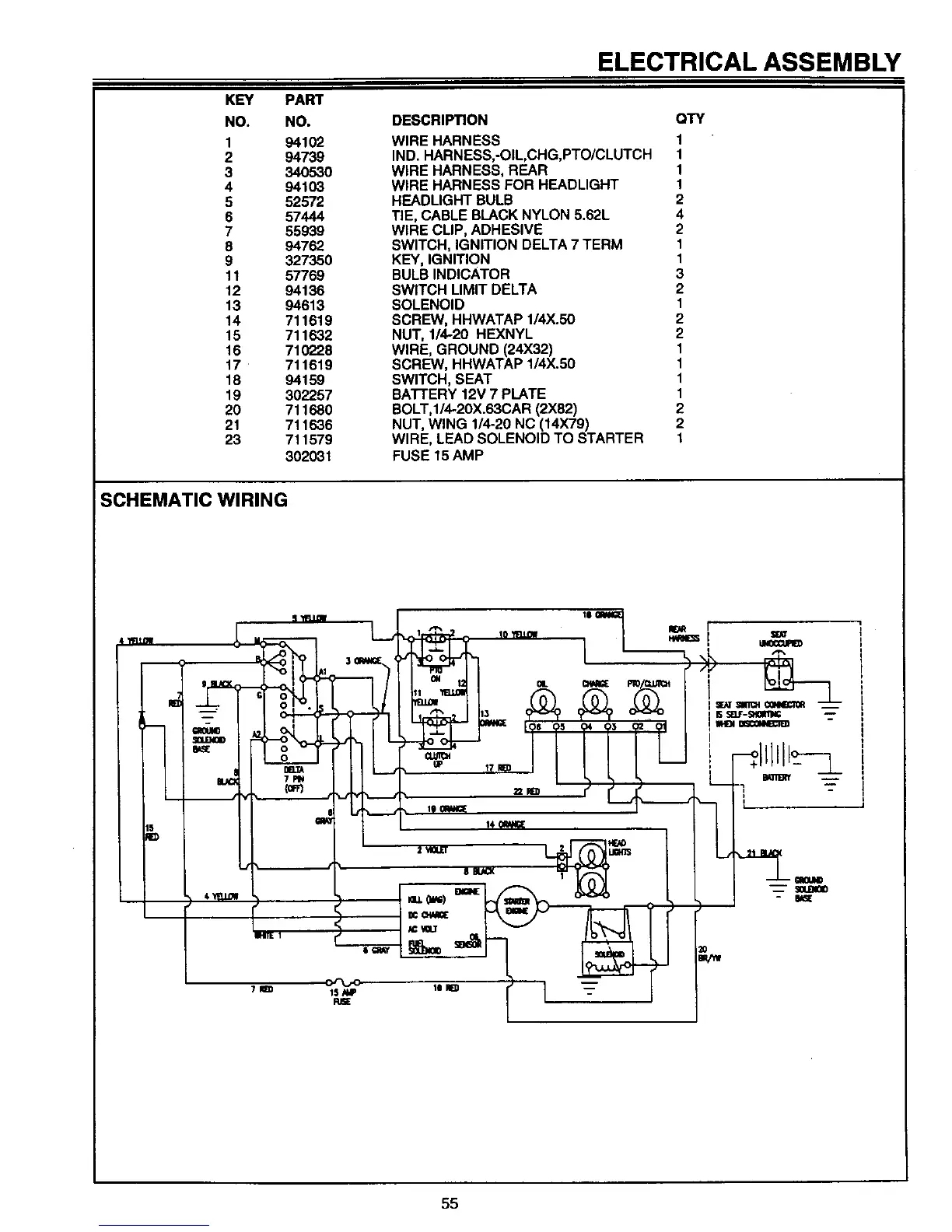

YARD KING Performance 50565x89 - ELECTRICAL ASSEMBLY; SCHEMATIC WIRING

ELECTRICAL ASSEMBLY
KEY
NO.
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
23
PART
NO.
941O2
94739
34O530
941O3
52572
57444
55939
94762
327350
57769
94136
94613
711619
711632
710228
711619
94159
302257
711680
711636
711579
302031
DESCRIPTION
QTY
WIRE HARNESS 1
IND. HARNESS,-OIL,CHG,PTO/CLUTCH 1
WIRE HARNESS, REAR 1
WIRE HARNESS FOR HEADLIGHT 1
HEADLIGHT BULB 2
TIE, CABLE BLACK NYLON 5.62L 4
WIRE CLIP, ADHESIVE 2
SWITCH, IGNITION DELTA 7 TERM 1
KEY, IGNITION 1
BULB INDICATOR 3
SWITCH LIMIT DELTA 2
SOLENOID 1
SCREW, HHWATAP 1/4X.50 2
NUT, 1/4-20 HEXNYL 2
WIRE, GROUND (24X32) 1
SCREW, HHWATAP 1/4X.50 1
SWITCH, SEAT 1
BATI'ERY 12V 7 PLATE 1
BOLT,1/4-20X.63CAR (2X82) 2
NUT, WING 1/4-20 NC (14X79) 2
WIRE, LEAD SOLENOID TO STARTER 1
FUSE 15 AMP
SCHEMATIC WIRING
