Yard Machines E765F - Gear Assembly

27

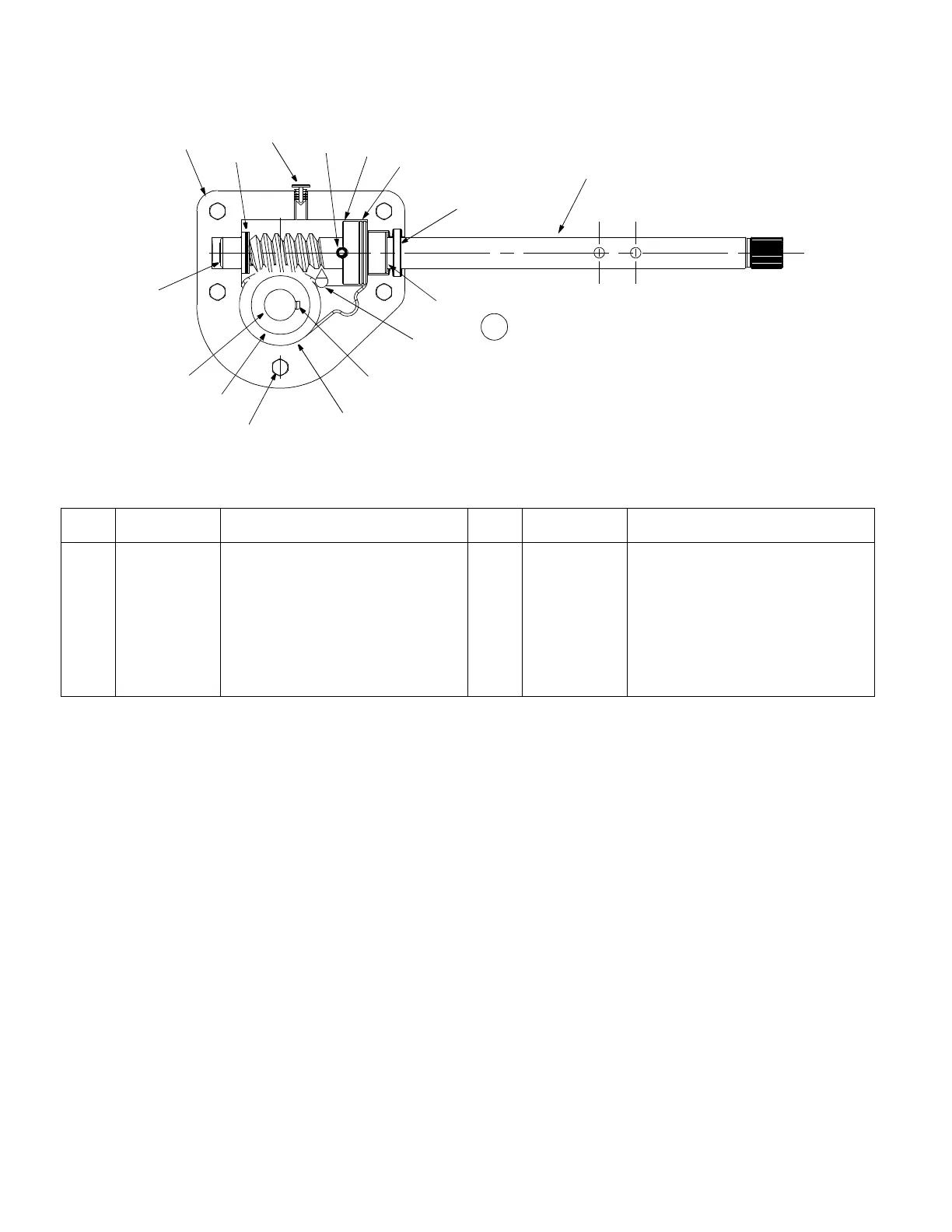

Gear Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
REF.
NO.
PART
NO. DESCRIPTION
1 618-0123 Housing—L.H.
618-0124 Housing—R.H.
2 710-0642 Hex Screw 1/4-20 x .75
3 711-0909 Spiral Axle 26"
4 714-0161 Key
5 715-0143 Pin-Spiral
6 717-0526 Shaft-Worm
7 717-0528 Gear-Worm
8 718-0186 Collar-Thrust
9 721-0325 Plug
10 721-0327 Seal-Oil
11 736-0351 Washer-Flat
12 736-0369 Washer-Flat
13 736-0445 Washer-Flat
14 737-0168 Grease
15 741-0662 Bearing-Flange
16 741-0663 Bearing-Flange
17 618-0121 Ass’y. Complete 26"
