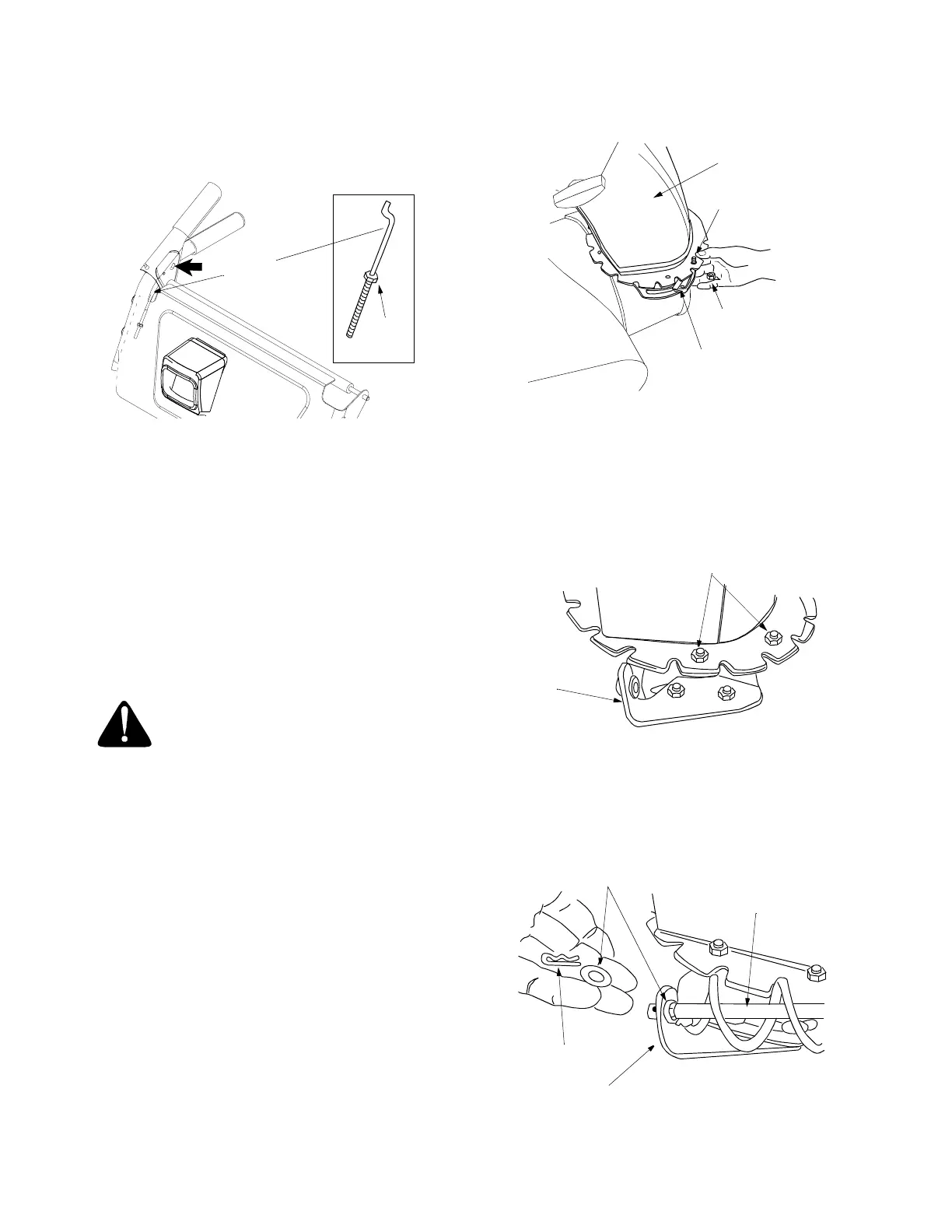

ATTACHING THE CLUTCH CABLES
(Hardware D)
1. Thread hex nuts onto the “Z” fittings (see inset,).
Insert “Z” fitting into hole in clutch grips. See
Figure 6.
Figure 6
2. Route the left cable between engine and speed
selector plate and then between handle panel
and clutch lever pivot rod before threading onto
the left “Z” fitting. Assemble the right cable using
the same route.
3. Correct adjustment on cables is minimal slack
but not tight. Tighten hex jam nuts when
adjustment is correct.
NOTE: If the right hand lockout cable is not
adjusted correctly, the wheels will tend to turn. If the
left hand lockout cable is not adjusted correctly, the
augers will not stop rotating.
WARNING: Be certain there is NO
tension on either clutch cable with the
drive or auger clutch grip in the
disengaged (up) position.
ATTACHING THE CHUTE ASSEMBLY
(Hardware E)
1. Place chute assembly over chute opening, with
the opening in the chute assembly facing the
front of the unit. Place chute flange keepers
beneath lip of chute assembly, with the flat side
of chute flange keeper facing downward.
2. Insert hex bolt up through chute flange keeper
and chute assembly as shown in Figure 7.
Secure with hex lock nut. After assembling all
three chute flange keepers, tighten all nuts and
bolts securely. Do not overtighten.
Note: Lock nuts cannot be threaded onto a bolt by
hand. Tighten with two 7/16” wrenches. This type of
nut is used where vibration occurs.
Figure 7
ATTACHING THE CHUTE CRANK
(Hardware F)
1. Loosen the two hex nuts which secure the chute
crank support bracket (see Figure 8) to the snow
thrower housing.
Figure 8
2. Place one flat washer over the end of the chute
crank, then insert the end of the crank into the
hole in the plastic bushing in the chute bracket.
See Figure 9. Place second flat washer on chute
crank, and secure with hairpin clip.
Figure 9
Hex
Jam Nut
“Z” Fitting
Chute
Assembly
Hex Bolt
Hex Lock Nut
Chute Flange
Keeper
Carriage Bolts
Hex Lock Nuts
Lower
Chute
Crank
Bracket
Flat
Washer
Chute
Crank
Hairpin Clip
Chute Crank
Bracket
