Yard Machines Y765 - Page 63

E23
PARTS LIST

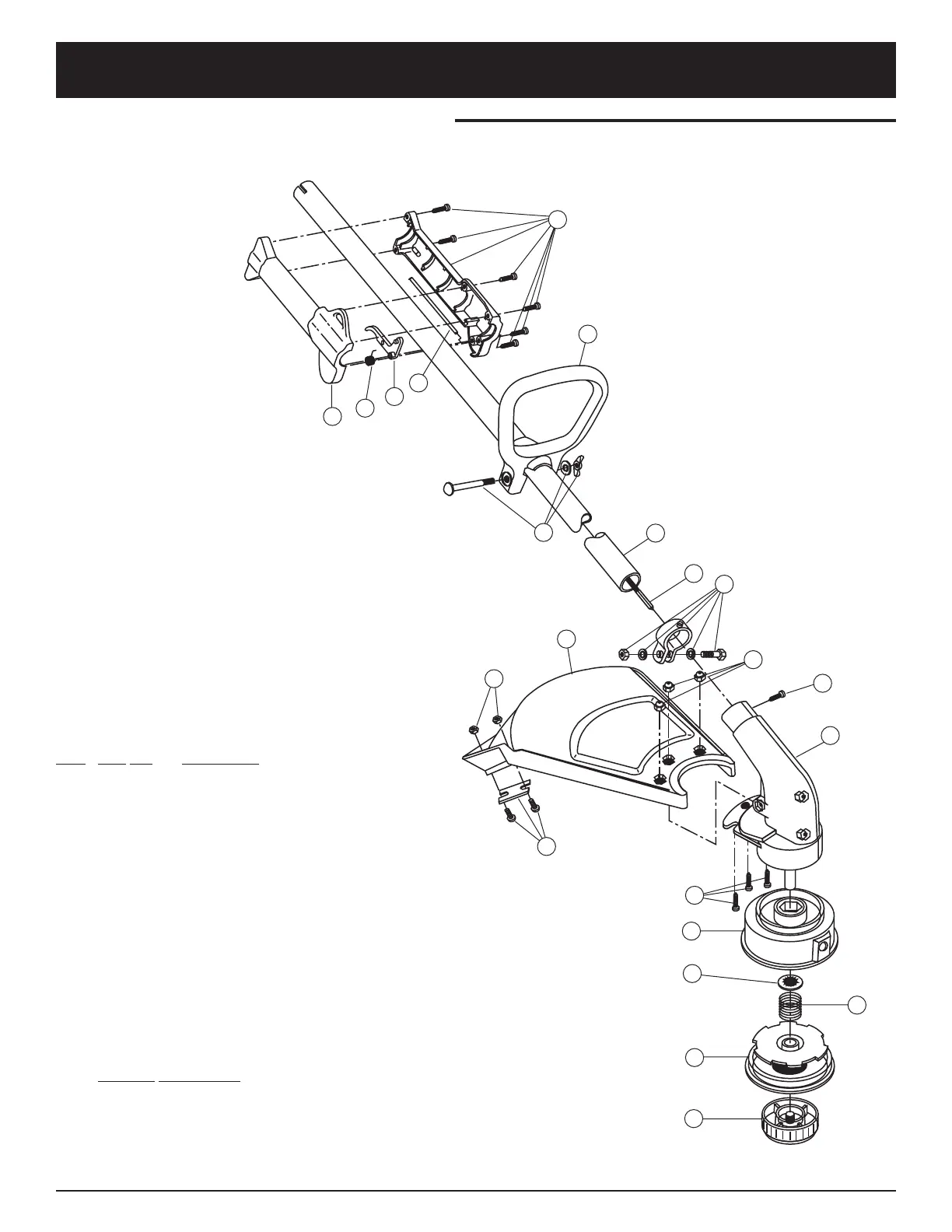

BOOM & TRIMMER PARTS - Y765
2-CYCLE GAS TRIMMER
Item Part No. Description
1 753-04927 Throttle Housing Assembly (includes 2 & 3)
2 791-610314 Throttle Trigger Spring
3 791-180975 Throttle Trigger
4 753-04405 Throttle Cable
5 791-153064 D-Handle Assembly (includes 6)
6 791-153317 D-Handle Hardware
7 753-05027 Drive Shaft Housing
8 753-04251 Flexible Drive Shaft
9 791-153597 Lower Clamp Assembly
10 791-180547 Guard Mounting Hardware
11 791-180548 Guard Assembly (includes 12)
12 791-180553 Blade Assembly
13 791-145569 Anti-Rotation Screw
14 791-180549 Gearbox Assembly (includes 15 & 16)
15 791-153619 Outer Spool Assembly (includes 16)
16 791-610660 Retainer
17 791-610317B Spring
18 753-1155 Inner Reel
19 791-153066 Bump Head Knob Assembly
Optional Accessories
* 791-153577B Spool and Line (25 ft.) Assembly
* 791-682075B Shoulder Strap
* not shown
