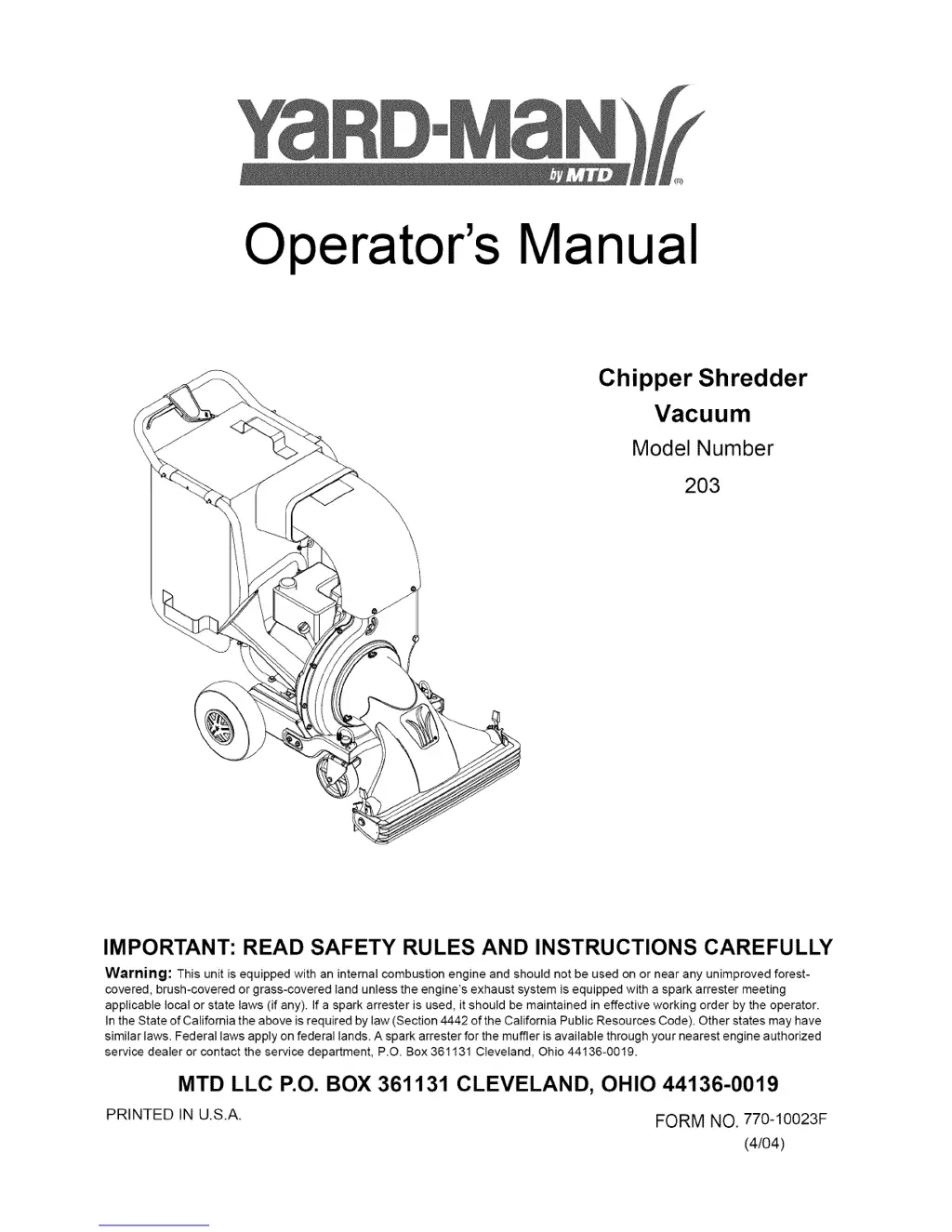

Operator's Manual
Chipper Shredder
Vacuum
Model Number
2O3
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
MTD LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A. FORM NO. 770-10023F
(4/04)

Table of Contents

Questions and Answers

  • E
    Elizabeth VillegasJul 30, 2025
    How to fix Yard-Man 203 engine that fails to start?
    • J
      jessica86Jul 30, 2025
      There are several possible reasons why your Yard-Man Chippers/Shredders engine might fail to start: * The spark plug wire may be disconnected. Connect it to the spark plug. * The fuel tank may be empty or contain stale fuel. Fill the tank with clean, fresh gasoline. * The throttle control lever might not be in the correct starting position. Move the throttle lever to the FAST position. * The choke may not be in the CHOKE position (if equipped). Move the choke to the CHOKE position. * The engine (if equipped with a primer) may not be primed properly. Prime the engine. * The fuel line could be blocked. Clean the fuel line. * The spark plug might be faulty. Clean, adjust the gap, or replace it.
  • C
    Christopher MartinAug 4, 2025
    Why does my Yard-Man 203 Chippers/Shredders engine run erratic?
    • E
      Erin AlvarezAug 4, 2025
      If your Yard-Man Chippers/Shredders engine is running erratically, here are some potential causes and solutions: * A loose spark plug wire. Connect and tighten the spark plug wire. * The unit is running on CHOKE (if equipped). Move the choke lever to the OFF position. * A blocked fuel line or stale fuel. Clean the fuel line and fill the tank with clean, fresh gasoline. * Water or dirt in the fuel system. Drain the fuel tank and refill with fresh fuel. * A dirty air cleaner. Clean or replace the air cleaner. * The carburetor may be out of adjustment. Consult an authorized service dealer.
  • M
    mccarthyshelleyAug 8, 2025
    What to do if my Yard-Man 203 unit does not discharge?
    • L
      Lauren ShepardAug 8, 2025
      If your Yard-Man Chippers/Shredders unit does not discharge, consider the following: * The discharge chute may be clogged. Stop the engine immediately, disconnect the spark plug wire, and clean the flail screen and inside of the discharge opening. * A foreign object may be lodged in the impeller. Stop the engine, disconnect the spark plug wire, and remove the lodged object. * The engine RPM may be too low. Always run the engine at full throttle. * The vacuum bag may be full. Empty the bag.
  • S
    Sara TaylorAug 13, 2025
    Why is my Yard-Man 203 Chippers/Shredders engine overheating?
    • N
      Nicole LeeAug 14, 2025
      If your Yard-Man Chippers/Shredders engine is overheating: * Check the engine oil level and fill the crankcase with the proper oil if it's low. * Clean or replace the air cleaner if it's dirty. * If the carburetor is not adjusted properly, see an authorized service dealer.
  • L
    Lawrence McknightAug 19, 2025
    Why is the discharge rate of my Yard-Man 203 Chippers/Shredders slowing down?
    • M
      melissakingAug 19, 2025
      If the rate of discharge slows considerably or the composition of discharged material changes in your Yard-Man Chippers/Shredders, ensure that: * The engine is always running at full throttle. * If the chipper blade is dull, replace it or see your authorized service dealer.
  • S
    salazarkevinAug 25, 2025
    How to fix occasional skip at high speed on Yard-Man 203 Chippers/Shredders?
    • B
      bgonzalezAug 25, 2025
      If your Yard-Man Chippers/Shredders experiences occasional skipping (hesitates) at high speed, adjust the spark plug gap to .030".

Summary

SECTION 1: IMPORTANT SAFE OPERATION PRACTICES

TRAINING

Instructions for safe operation and training for users.

PREPARATION

Steps to take before operating the machine.

SECTION 2: ASSEMBLING YOUR CHIPPER SHREDDER VACUUM

SECTION 4: OPERATING YOUR CHIPPER SHREDDER VACUUM

Gas And Oil Fill-Up

Instructions for filling the engine with gasoline and oil.

Starting Engine

Step-by-step guide for starting the engine.

SECTION 6: MAINTAINING YOUR CHIPPER SHREDDER VACUUM

Lubrication (Refer to Figure 5)

Details lubrication points and schedule for various components.

Removing The Flail Screen

Step-by-step guide to remove and clean the flail screen.

Sharpening Or Replacing Chipper Blades

Belt Removal And Replacement

Procedures for removing and replacing the drive belt.

SECTION 7: TROUBLESHOOTING

Engine fails to start

Common causes and remedies for engine starting issues.

Engine runs erratic

Yard-Man 203 Specifications

General IconGeneral
BrandYard-Man
Model203
CategoryChippers/Shredders
LanguageEnglish
