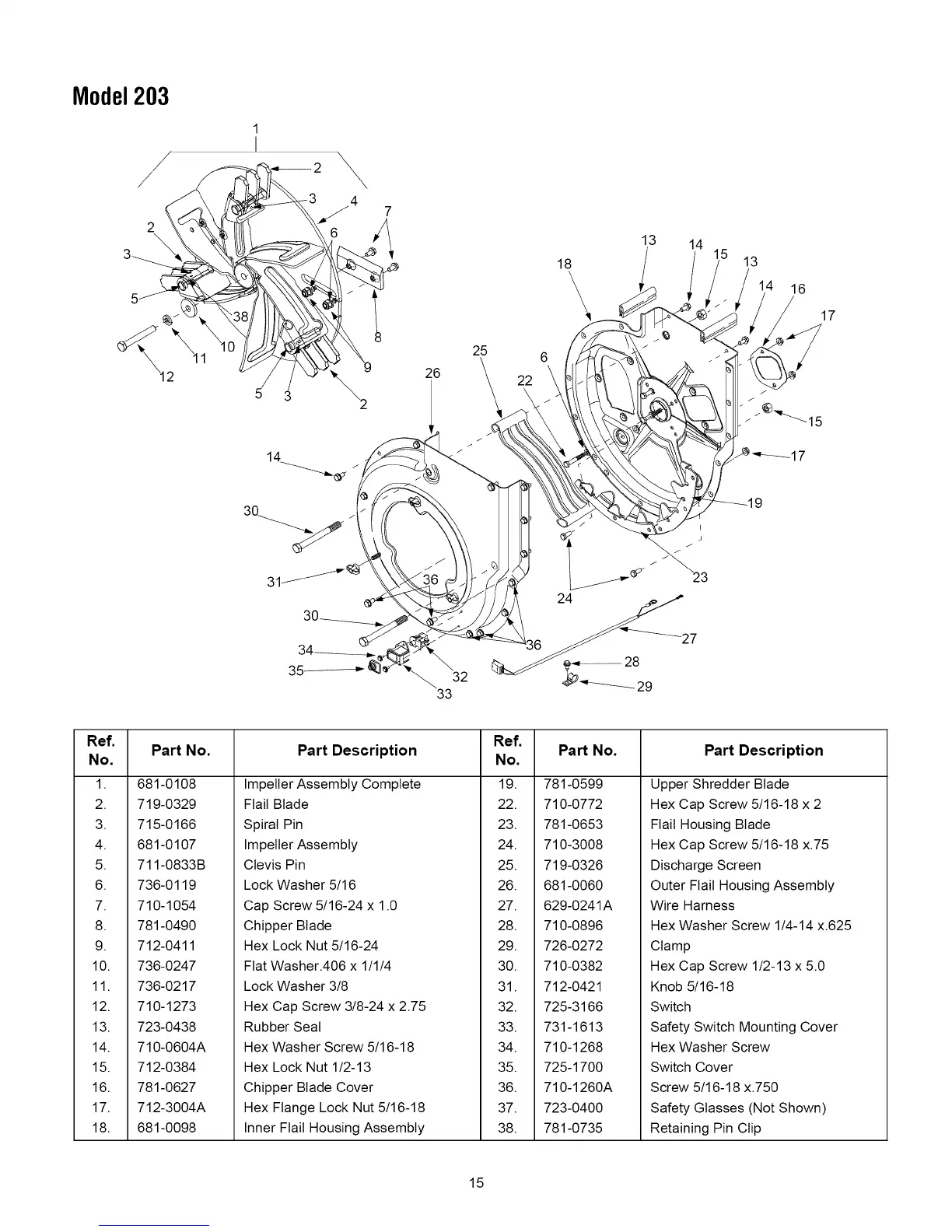

Yard-Man 203 - Page 15

Model203
1
I
2\
5 3
26
32
33
25
22
18
\
13
14
13
4 16
17
Ref,
No,
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
Part No.
681-0108
719-0329
715-0166
681-0107
711-0833B
736-0119
710-1054
781-0490
712-0411
736-0247
736-0217
710-1273
723-0438
710-0604A
712-0384
781-0627
712-3004A
681-0098
Part Description
Impeller Assembly Complete
Flail Blade
Spiral Pin
Impeller Assembly
Clevis Pin
Lock Washer 5/16
Cap Screw 5/16-24 x 1.0
Chipper Blade
Hex Lock Nut 5/16-24
Flat Washer.406 x 1/1/4
Lock Washer 3/8
Hex Cap Screw 3/8-24 x 2.75
Rubber Seal
Hex Washer Screw 5/16-18
Hex Lock Nut 1/2-13
Chipper Blade Cover
Hex Flange Lock Nut 5/16-18
Inner Flail Housing Assembly
Ref.
Pa_ No.
No.
19. 781-0599
22. 710-0772
23. 781-0653
24. 710-3008
25. 719-0326
26. 681-0060
27. 629-0241A
28. 710-0896
29. 726-0272
30. 710-0382
31. 712-0421
32. 725-3166
33. 731-1613
34. 710-1268
35. 725-1700
36. 710-1260A
37. 723-0400
38. 781-0735
Part Description
Upper Shredder Blade
Hex Cap Screw 5/16-18 x 2
Flail Housing Blade
Hex Cap Screw 5/16-18 x.75
Discharge Screen
Outer Flail Housing Assembly
Wire Harness
Hex Washer Screw 1/4-14 x.625
Clamp
Hex Cap Screw 1/2-13 x 5.0
Knob 5/16-18
Switch
Safety Switch Mounting Cover
Hex Washer Screw
Switch Cover
Screw 5/16-18 x.750
Safety Glasses (Not Shown)
Retaining Pin Clip
15
