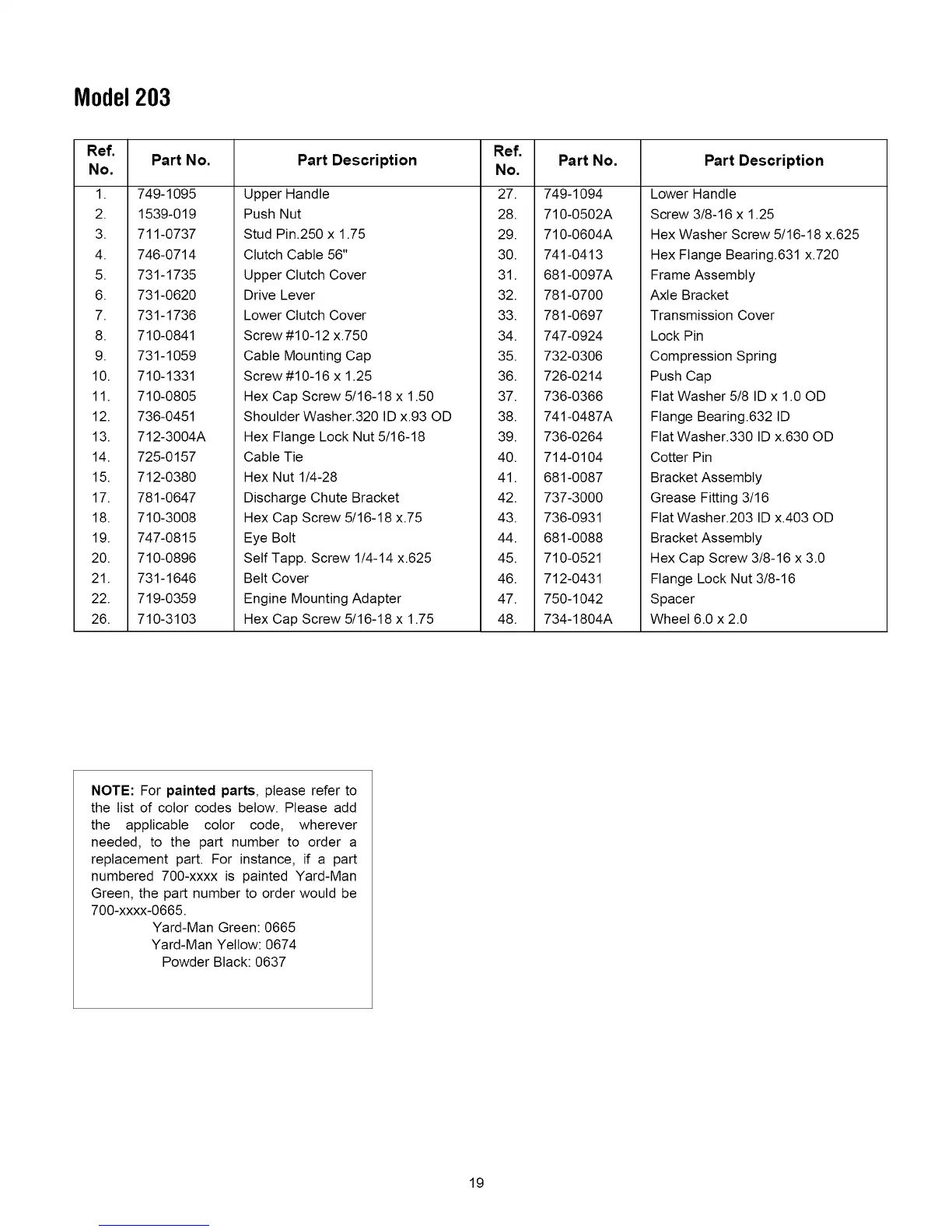

Yard-Man 203 - Page 19

Model203
Ref,
Part No.
No.
1. 749-1095
2. 1539-019
3. 711-0737
4. 746-0714
5. 731-1735
6. 731-0620
7. 731-1736
8. 710-0841
9. 731-1059
10. 710-1331
11. 710-0805
12. 736-0451
13. 712-3004A
14. 725-0157
15. 712-0380
17. 781-0647
18. 710-3008
19. 747-0815
20. 710-0896
21. 731-1646
22. 719-0359
26. 710-3103
Part Description
Upper Handle
Push Nut
Stud Pin.250 x 1.75
Clutch Cable 56"
Upper Clutch Cover
Drive Lever
Lower Clutch Cover
Screw #10-12 x.750
Cable Mounting Cap
Screw #10-16 x 1.25
Hex Cap Screw 5/16-18 x 1.50
Shoulder Washer.320 ID x.93 OD
Hex Flange Lock Nut 5/16-18
Cable Tie
Hex Nut 1/4-28
Discharge Chute Bracket
Hex Cap Screw 5/16-18 x.75
Eye Bolt
Self Tapp. Screw 1/4-14 x.625
Belt Cover
Engine Mounting Adapter
Hex Cap Screw 5/16-18 x 1.75
Ref.
No,
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
Part No.
749-1094
710-0502A
710-0604A
741-0413
681-0097A
781-0700
781-0697
747-0924
732-0306
726-0214
736-0366
741-0487A
736-0264
714-0104
681-0087
737-3000
736-0931
681-0088
710-0521
712-0431
750-1042
734-1804A
Part Description
Lower Handle
Screw 3/8-16 x 1.25
Hex Washer Screw 5/16-18 x.625
Hex Flange Bearing.631 x.720
Frame Assembly
Axle Bracket
Transmission Cover
Lock Pin
Compression Spring
Push Cap
Flat Washer 5/8 ID x 1.00D
Flange Bearing.632 ID
Flat Washer.330 ID x.630 OD
Cotter Pin
Bracket Assembly
Grease Fitting 3/16
Flat Washer.203 ID x.403 OD
Bracket Assembly
Hex Cap Screw 3/8-16 x 3.0
Flange Lock Nut 3/8-16
Spacer
Wheel 6.0 x 2.0
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Yard-Man
Green, the part number to order would be
700-xxxx-0665.
Yard-Man Green: 0665
Yard-Man Yellow: 0674
Powder Black: 0637
19
