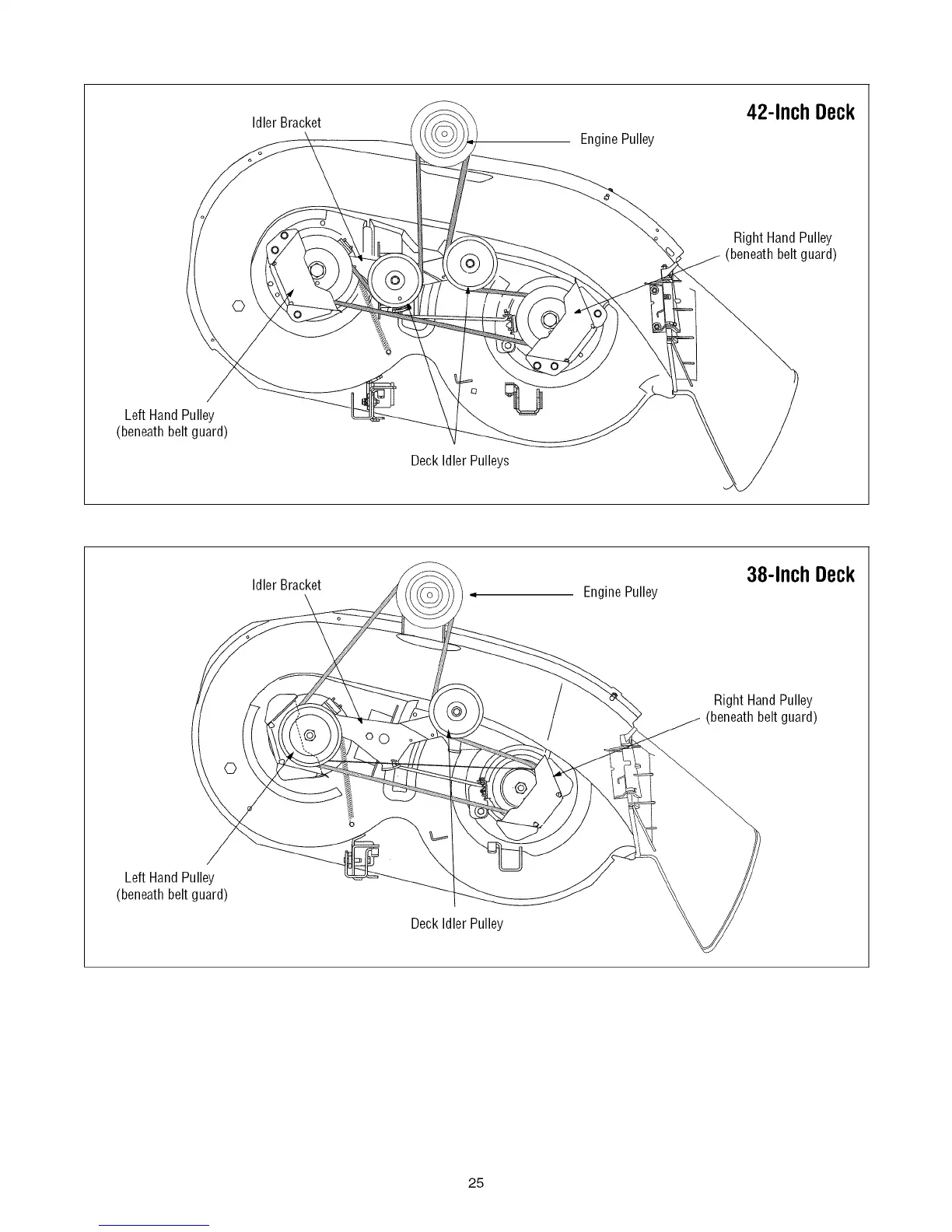

IdlerBracket 42-Inch Deck
EnginePulley
Right Hand Pulley
(beneath belt guard)
©
Left Hand Pulley
(beneath belt guard)
Deck Idler Pulleys
Idler Bracket
EnginePulley
38-InchDeck
/
Right Hand Pulley
(beneath belt guard)
Left Hand Pulley
(beneath belt guard)
Deck Idler Pulley
25
