Yard-Man YM20CS - Parts List

E18
PARTS LIST

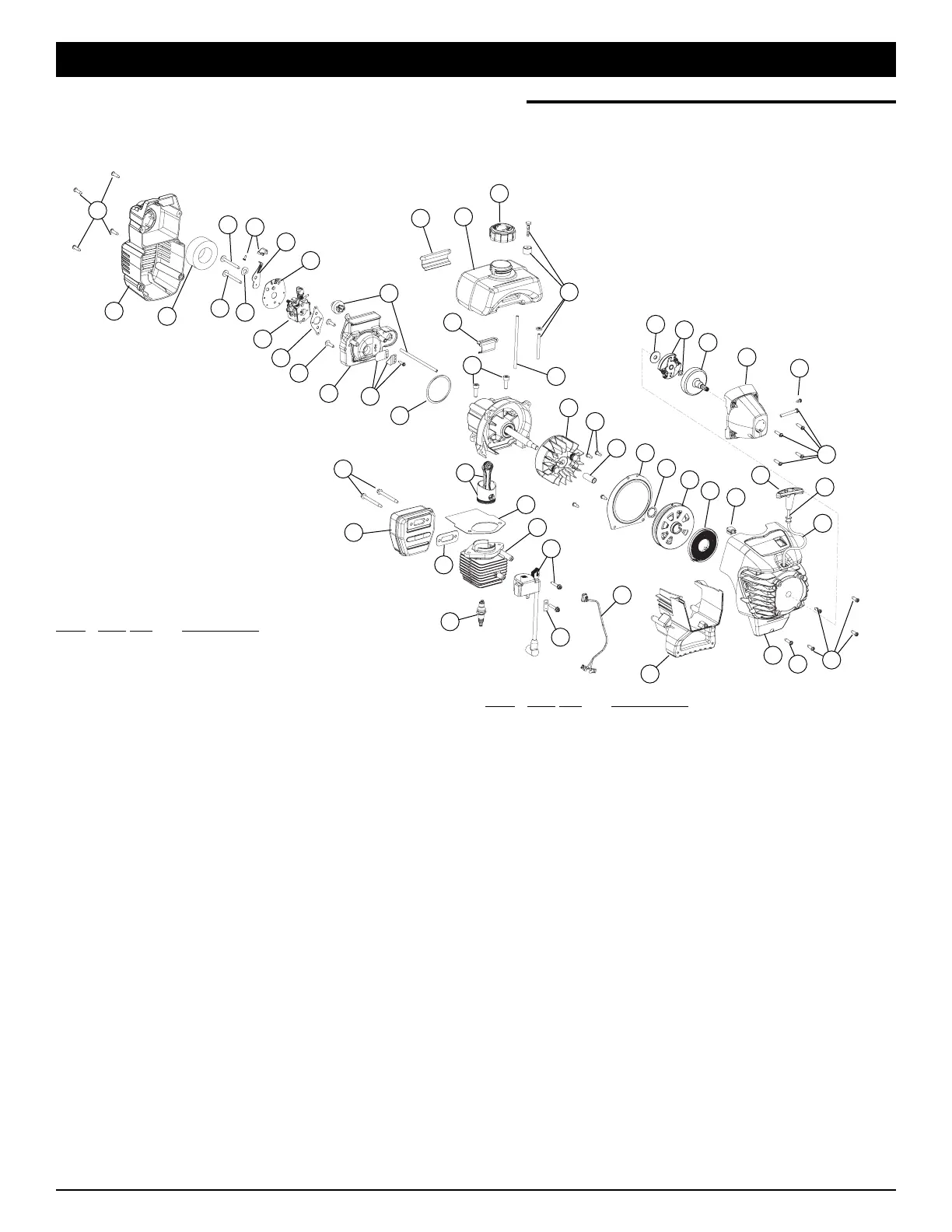

REPLACEMENT PARTS - MODEL YM20CS
2-CYCLE GAS TRIMMER
1
2
3
8
10
12
3
4
5
7
6
11
13
14
48
50
20
51
18
15
16
17
19
22
23
24
25
27
32
28
34
33
26
21
41
47
43
45
30
9
46
44
39
49
31
29
38
39
40
35
37
36
42
39
Item Part
No. Description
33 753-05492 Starter Housing Assembly
(includes 24-32, 34 & 39)
34 791-181862 Housing Screw
35 791-182396 Clutch Washer
36 791-182369 Clutch Rotor Assembly
37 791-153592 Clutch Drum Assembly
38 753-04889 Clutch Cover Assembly (includes 39-40)
39 791-181345 Cover Screw
40 791-182519 Anti-Rotation Screw
41 753-05025 Wire Leads and Sleeve
42 791-611063 Ground Tab
43 753-04336 Module Assembly
44 791-610311B Spark Plug
45 753-05169 Muffler Assembly (includes 46 & 47)
46 753-04619 Exhaust Gasket
47 753-04620 Muffler Mounting Bolts
48 753-04814 Cylinder Assembly (includes 50 & 51)
49 753-04367 Piston and Rod Assembly
50 753-04182 Cylinder Gasket
51 791-182723 Cylinder Bolt
* 753-04689 Spark Arrestor Screen
* 753-1209 Piston Ring Set
* 753-04812 Short Block Assembly
(includes 10, Crankcase, 44 & 48-51)
* 791-181599 Clutch Springs (Qty. 2)
* Items Not Shown
Item Part No. Description
1 753-04511 Air Cleaner Cover Assembly (includes 2)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw Assembly
4 791-180226 Wavey Washer
5 791-182202 Choke Knob w/Screw
6 753-04418 Choke Lever (includes 5)
7 753-04419 Choke Plate (includes 6)
8 753-05133 Carburetor Assembly (includes 9)
9 791-610675 Carburetor Gasket
10 791-181860 Carb Mount Screw
11 791-683974B Primer & Hose Assembly
12 753-1196 Carb Mount Assembly (includes 10, 13 & 14)
13 791-684451 Reed Assembly
14 753-05487 Carburetor O-Ring
15 791-612134 Rear Mounting Pad
16 791-182767 Fuel Tank Assembly (includes 17-19)
17 753-04084 Fuel Cap Assembly
18 791-181086 Fuel Return Line
19 753-04233 Fuel Line Assembly
20 791-145308 Front Mounting Pad
21 753-05091 Shroud Extension & Stand (includes 39)
22 791-182736 Flywheel Assembly
23 791-181525 Spacer
24 753-04459 Recoil Pulley Assembly (includes 25, 27 & 29)
25 753-04286 Recoil Spring
26 791-611061 Rope Guide
27 753-04288 Pulley Retainer
28 791-181079 Pull Handle
29 791-613103 Rope
30 753-04928 Pressure Plate Assembly (includes 31)
31 753-1202 Plate Screw
32 753-04824 Rope Guide Retainer
