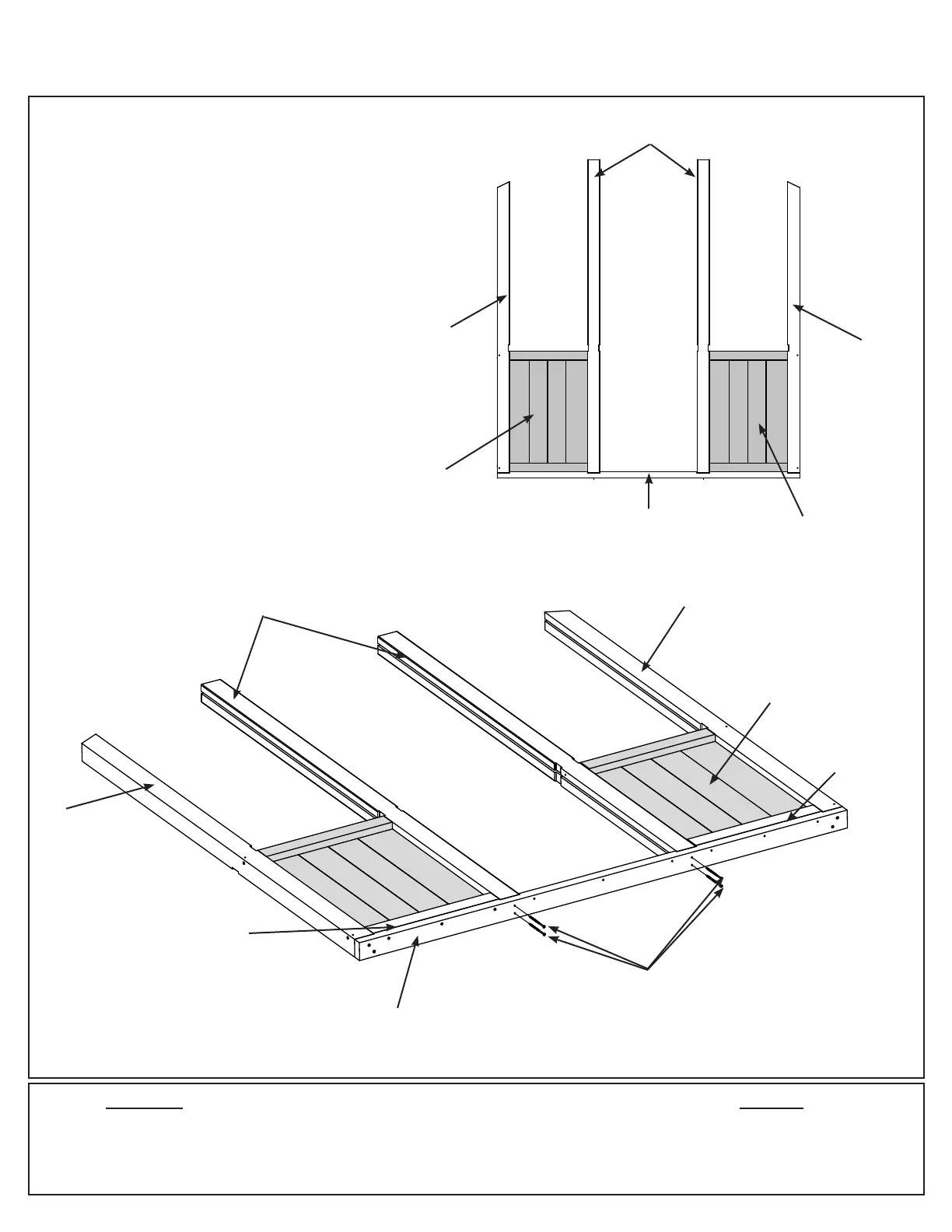

(1147) FB Panel
F3.4
F3.5
(1113) Back Post
B: In the grooves of each post slide one
(1147) FB Panel down so they rest tight to
the top of the (1120) Back Base. (F3.4)
C: Place one (1113) Back Post tight
to each (1147) FB Panel then attach to
(1120) Back Base with two #10 x 4” Wood
Screws per post. (F3.4 and F3.5)
#10 x 4” Wood Screw
Tight
Hardware
4 x #10 x 4” Wood Screw
Wood Parts
2 x (1113) Back Post
2 x (1147) FB Panel
(1109)
Right
Post
(1108)
Left Post
(1120) Back Base
(1147) FB
Panel
(1147) FB
Panel
(1120) Back Base
Step 3: Back Wall Assembly
Part 2
(1113) Back Post
(1109)
Right Post
(1108)
Left Post
Tight
