IT IS RECOMMENDED TO ATTACH THE PIN IN THE FIRST HOLE OF THE PUSH ROD.
STEP B
Centre the Window Brace A (Central to the VENT RAFTER) attach to
the BOTTOM VENT BLOCK and fasten with #10 x 1-1/4” Pan Screw.
STEP C
Centre the Window Brace B (Aligns with the Window Brace A from Above)
to the VENT ROOF PANEL BLOCK, and fasten with #10 x 1-1/4” Pan Screw.
IT IS RECOMMENDED TO ATTACH THE PIN IN THE FIRST HOLE OF THE PUSH ROD.
STEP B
Centre the Window Brace A (Central to the VENT RAFTER) attach to
the BOTTOM VENT BLOCK and fasten with #10 x 1-1/4” Pan Screw.
STEP C
Centre the Window Brace B (Aligns with the Window Brace A from Above)
to the VENT ROOF PANEL BLOCK, and fasten with #10 x 1-1/4” Pan Screw.
#10 X 1-1/4” Pan Screws x4
Single Spring Window opener to
VENT ROOF BLOCK rst and then
to the VENT ROOF PANEL
F16.6

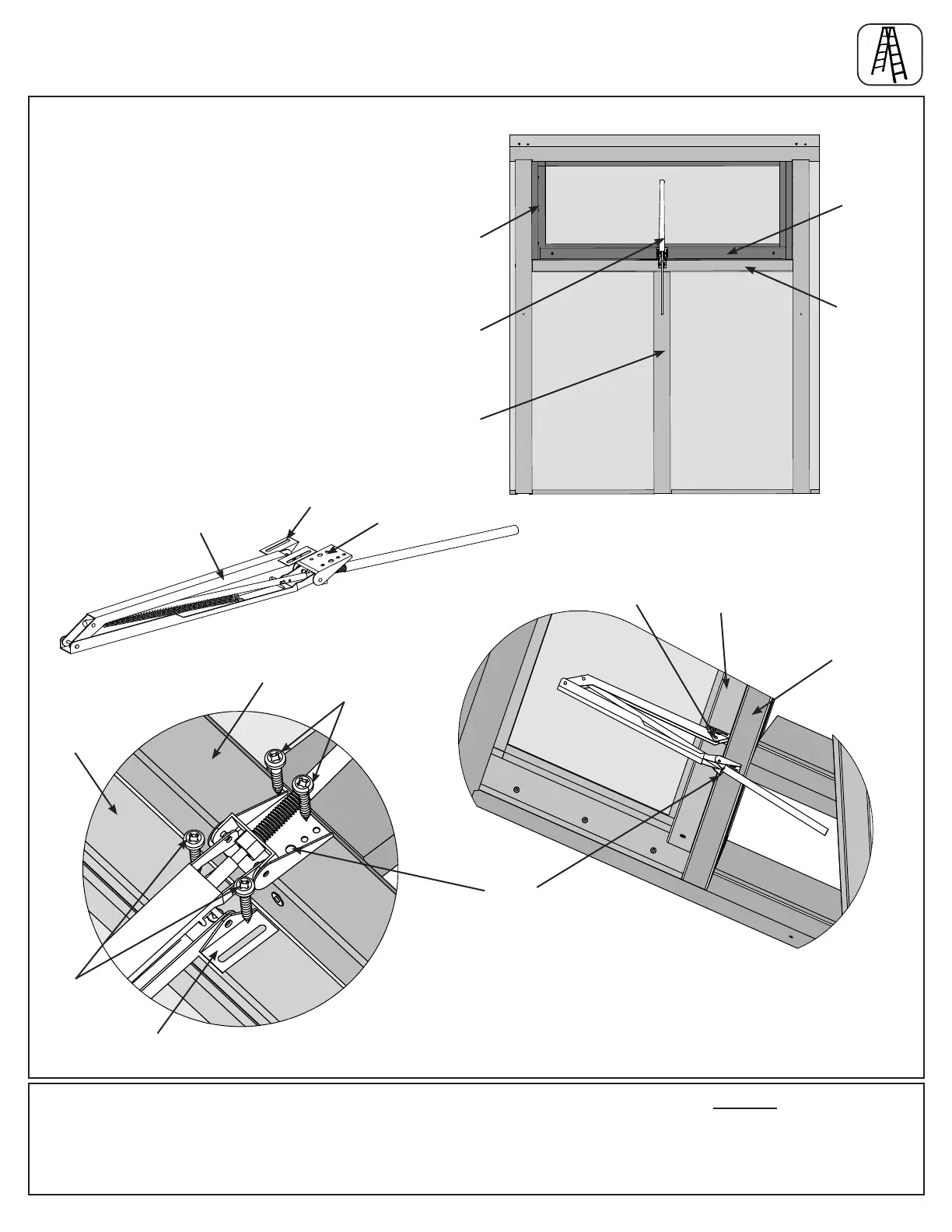

F: From inside the assembly, center
Single Spring Window Opener on (1170)
Vent Roof Panel so it is aligned with
(1127) Vent Roof Rafter. Attach Window
Brace A & B to (1187) Vent Roof Panel
Block and Frame Bracket to (1128)
Bottom Vent Block with two #10 x 1-1/4”
Pan Screws per brace. Braces should be
in alignment. (F16.6, F16.7, F16.8 and
F16.9)
Note: The Aluminum Single Spring
Window Opener is designed to
automatically open and close with
changes in temperature. It must not be
opened or closed manually. Doing so
will result in damage to the component
STEP A
Follow the manufacturer’s supplied instruction for assembling the Single Spring Window Opener.
(NOTE: Window Opener is in the closed postion prior to attaching to unit)
(1170) Vent
Roof Panel
(1127) Vent
Roof Rafter
(1187) Vent
Roof Panel
Block
Hardware
4 x #10 x 1-1/4” Pan Screw
(1128) Bottom
Vent Block
F16.7
Single Spring
Window Opener
Single Spring
Window Opener
Inside View
Frame
Bracket
Window
Brace A &B
(1128) Bottom
Vent Block
(1128) Bottom
Vent Block
(1187) Vent Roof
Panel Block
(1187) Vent Roof
Panel Block
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
F16.8
F16.9
Frame
Bracket
Window
Brace A &B
Window
Brace A &B
Step 16: Attach Single Spring Window Opener
Part 2
