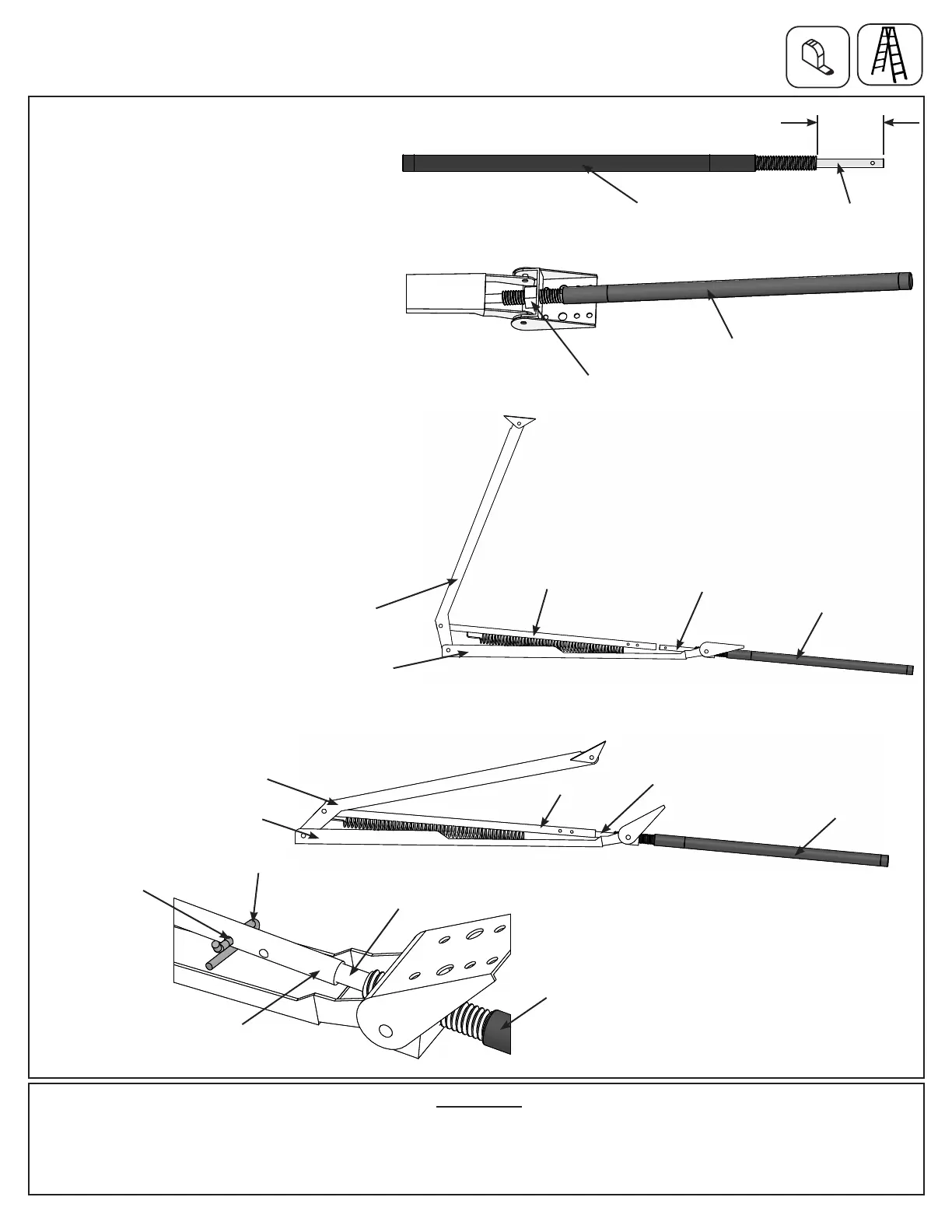

Step 16: Attach Single Spring Window Opener
Part 1
A: The Black Cylinder MUST be in the
closed position prior to assembly. To close
the cylinder, place it in the refrigerator for 5-7
minutes. After removing from the refrigerator
push the Cylinder Rod so it is past the
threads 1-1/2” (38.1m). (F16.1)
B: With the cylinder in the closed position
screw the Cylinder into the Cylinder Housing
halfway. (F16.2)
C: Lift Arm B so the Push Rod aligns with
the Cylinder Rod. (F16.3)
D: Lower Arm B so the Cylinder Rod slides
into the Push Rod and the holes align.
(F16.4)
E: Insert pin in B hole of the Push Rod.
(F16.5)
Components
1 x Single Spring Window Opener
F16.1
Arm A
1-1/2”
(38.1mm)
F16.2
F16.5
Pin
Push Rod
Recommended
to use B hole
Cylinder
Cylinder Rod
Cylinder
Cylinder Housing
Cylinder
Cylinder Rod
Push Rod
F16.4
F16.3
Cylinder
Cylinder Rod
Push Rod
Cylinder Rod
Cylinder
Arm B
Arm A
Arm B
