3/8 x 23-7/8 x 84" (1 x 60,6 x 213,4 cm)
2" (5,1 cm)
PARTS REQUIRED:
SIDE WALL -A- END PANEL


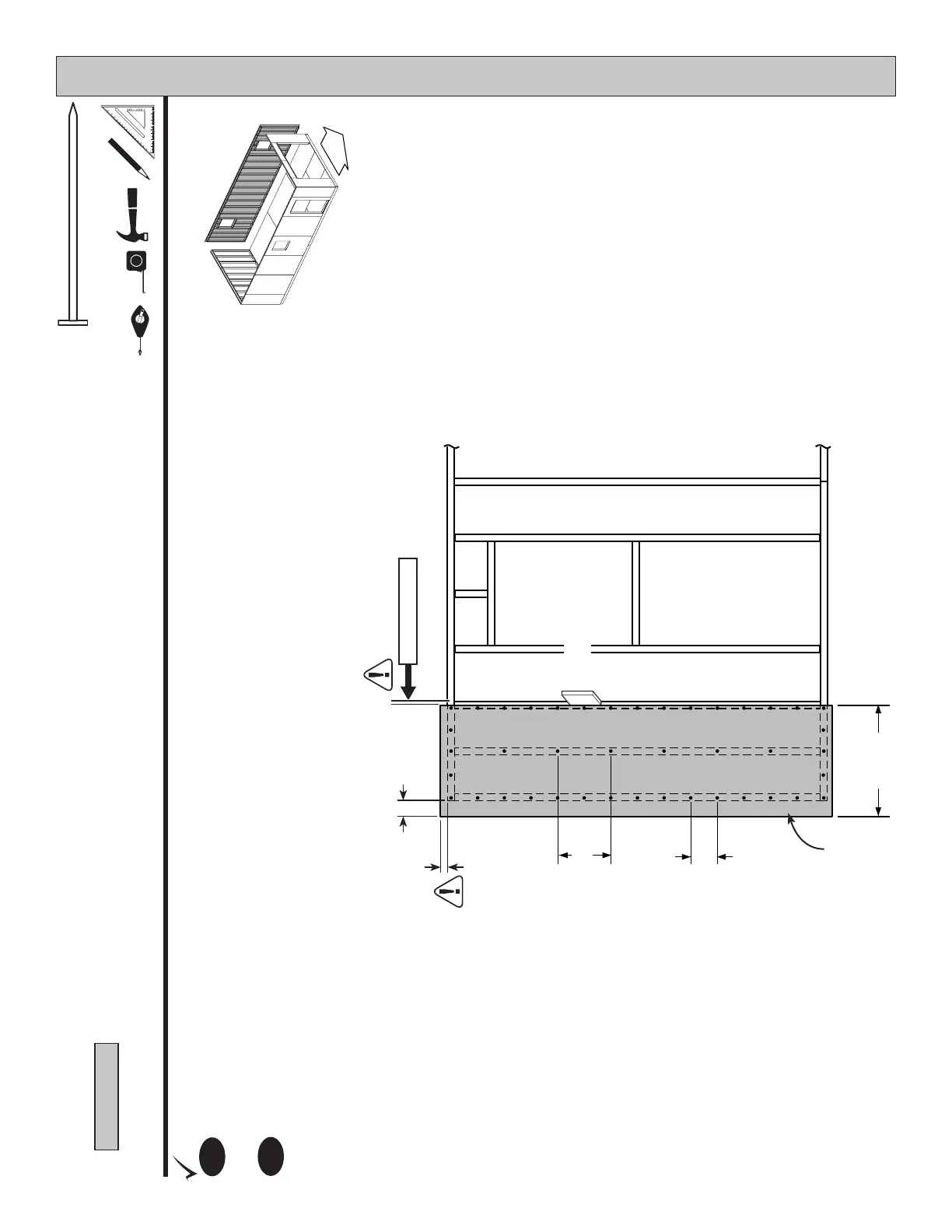

Place end panel on frame with primed side facing up. Wall panel will be 1-1/2" above top plate. Use GAA as a gauge block to check the 3/4" side measurement on the wall stud.

Secure the panel using 2" nails 6" apart on edges and 12" apart inside panel.
1
BEGIN
12" (30,5 cm)
 Block
6" (15,2 cm)
3/4" (1,9 cm)
 
BEGIN HERE
1
Primed side UP
1-1/2"
(3,8 cm)
3-1/2" (8,9 cm)
DOOR
23-7/8"
(60,6 cm)
