Yardline BRAXTON User Manual

23 7/16" 23 7/16"
68 1/2"
78 1/2"
(59,5 cm) (59,5 cm)
(174 cm)
(199,4 cm)
15-5/8"
27-9/16"
39-9/16"
51-9/16"
83-9/16"
103-1/8"
(39,7 cm)
(70 cm)
(100,5 cm)
(131,0 cm)
(212,2 cm)
67-9/16"
(171,6 cm)
(261,9 cm)
35
PARTS REQUIRED:
3" (7,6 cm)

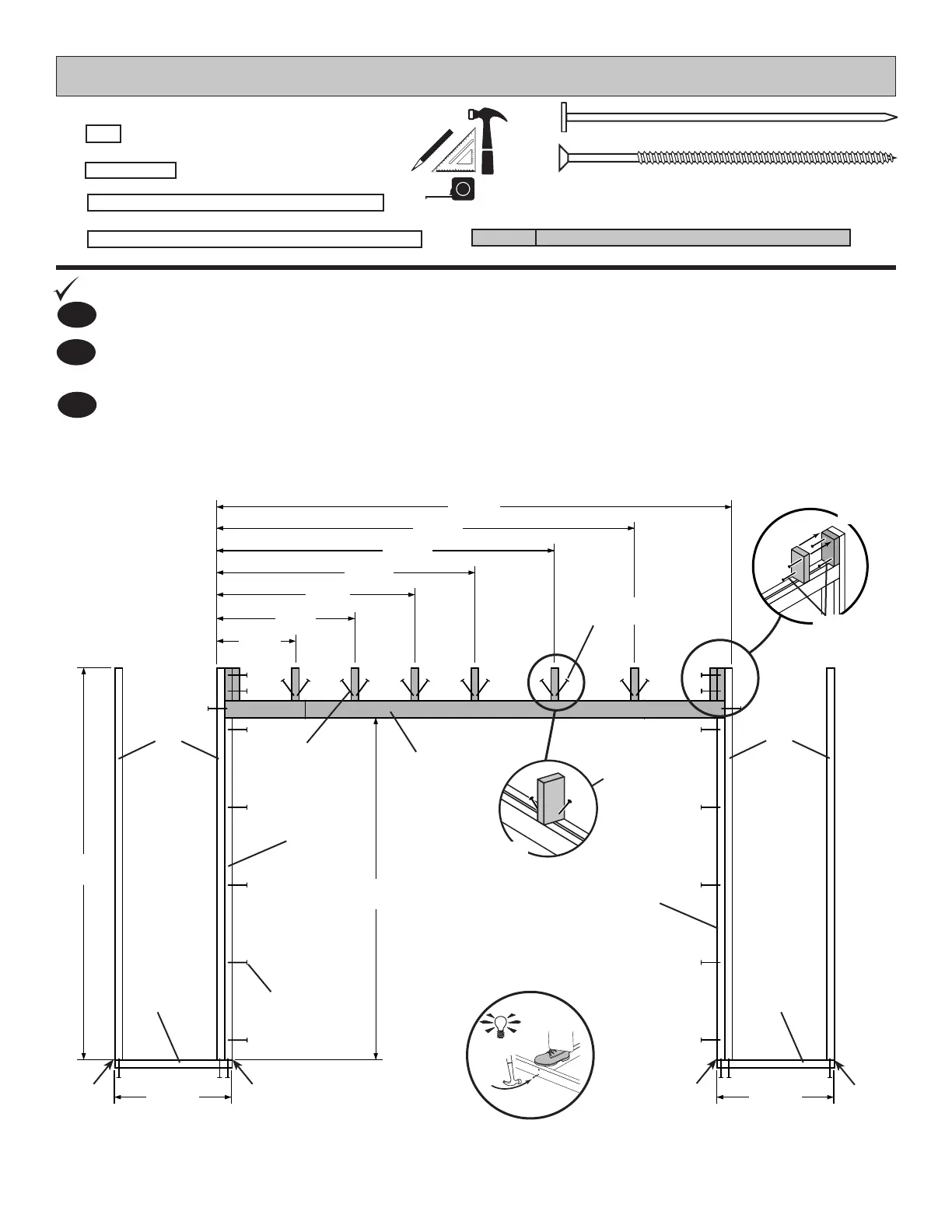

FRONT WALL FRAME

Orient parts on edge on oor as shown. Orient Pre Assembled Header on at side.
Attach 1st end UY to AI door frame stud using (2) 3" screws .
Attach 2nd end UY to 1st UY using (2) 3" nails .
Attach middle UY (x6) to Pre Assembled Header using (2) 3" screws at each connection .

3
1
BEGIN

2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
YFA

2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
2 x 4 x 23-7/16" (5,1 x 10,2 x 59,5 cm)

JYA
2 x 4 x 6-1/2" (5,1 x 10,2 x 16,5 cm)

UY

Pre Assembled Header
Pre Assembled
Header
3" (7,6 cm)

HINT:




Screws
JYA
YFA
YFA
JYA

AI
AI

Nails

Screws
Flush Flush
Flush
Flush

