PARTS REQUIRED:
RAFTER INSTALLATION



Pre assembled
1-Gusset
Pre assembled

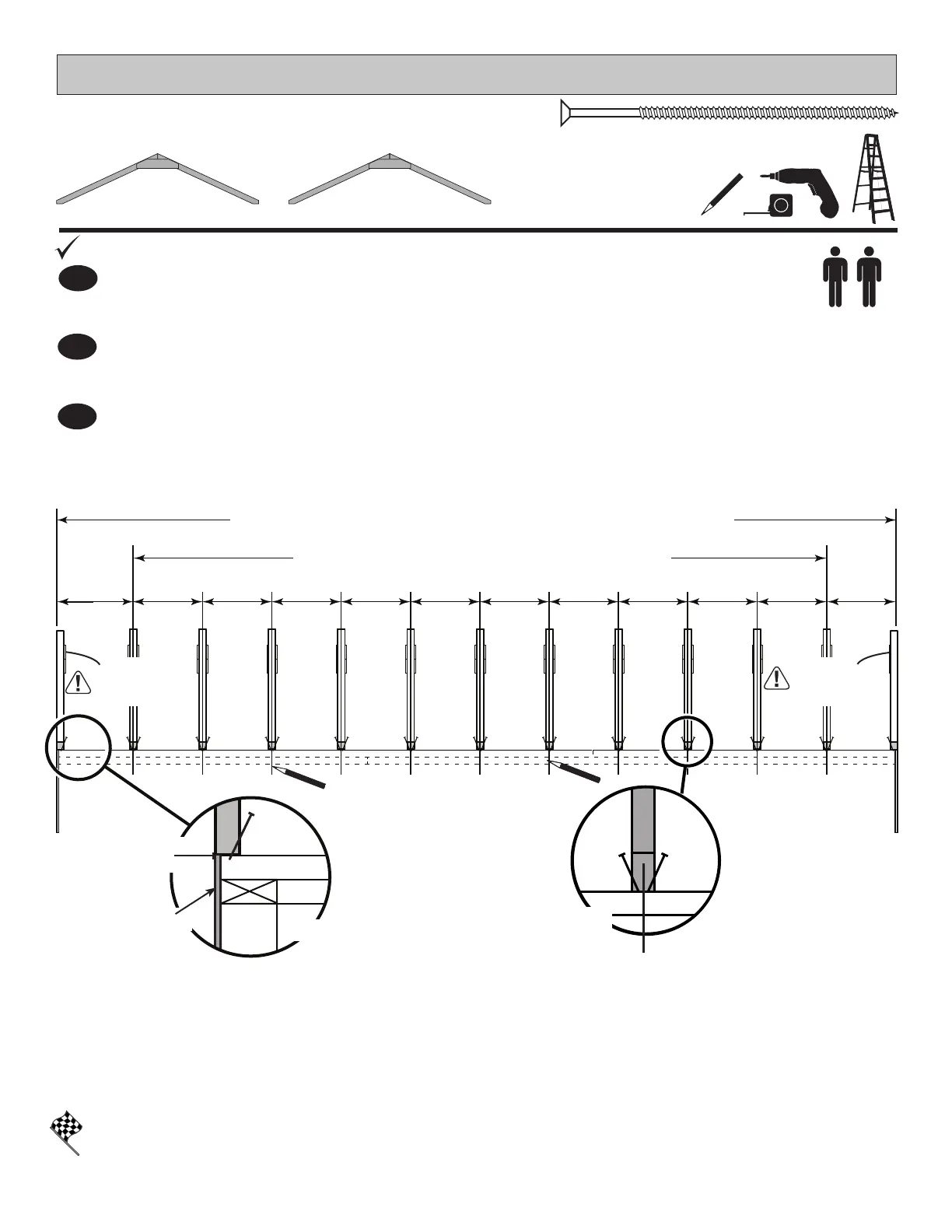

On both 24’ walls, measure and mark center-locations for all  .
Install all  using (2) 3" screws angled into top plate as shown in.
Install both  to the outside edge of wall panel, using (1) 3” screw .
FINISH
You have nished installing your rafters.

3

3" (7,6 cm)
Rafter with
ONE GUSSET

1
BEGIN
1

CENTER
on marks
Rafter with
ONE GUSSET


24-3/8"
(62 cm)
24-3/8"
(62 cm)
24"
(61 cm)
24"
(61 cm)
24"
(61 cm)
24"
(61 cm)
24"
(61 cm)
24"
(61 cm)
24"
(61 cm)
24"
(61 cm)
24"
(61 cm)
24"
(61 cm)

Flush
Panel
DIMENSIONS ARE FROM OUTSIDE EDGE OF WALL PANELS
DIMENSIONS ARE TO CENTER OF RAFTERS
