75

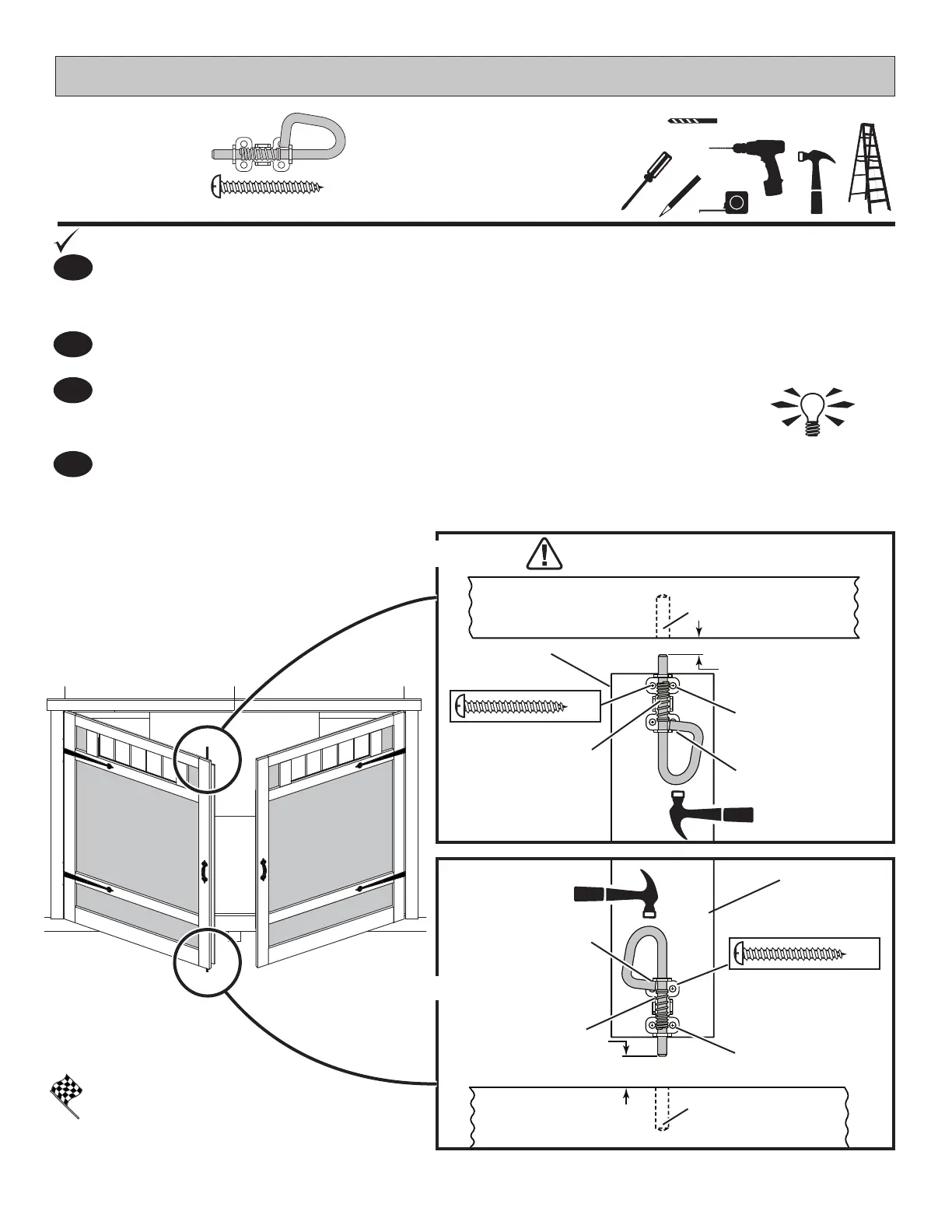

DOUBLE DOOR HARDWARE
FINISH
3
4
Place top bolt onto OO in open position with bolt ends 3/8" (1 cm) down from frame.
Bolt is open when loop is contacting base .
Mark and pre-drill holes for screws.
Install bolt using screws supplied and drill 5/16" (0,8 cm) hole deep enough
for bolt to slide into.
Place bottom bolt onto OO in open position with bolt ends 1/2" (1,3 cm) up from oor.
Bolt is open when loop is contacting base .
Mark and pre-drill holes for screws.
Install bolt using screws supplied and drill 5/16" (0,8 cm) hole deep enough
for bolt to slide into.
LEFT
DOOR
5/16" (0,8 cm) Drill Bit
PARTS REQUIRED:
HINT: With door
closed extend bolt
and tap with hammer
to leave a mark in
wood for drilling.
1" (2,5 cm)
OO
OO
FLOOR
PRE-DRILL
PRE-DRILL
1-1/4 x 2-1/2 x 69"
OVER DOOR
FRAME
LOCATE AND PRE-DRILL HOLES
TO AVOID SPLITTING WOOD
OPEN POSITION
OPEN POSITION
Loop contacts
base.
Loop contacts
base.
with bolt
in open
position.
1-1/4 x 2-1/2 x 69"
1
You have nished installing
your Spring-Bolts.
