Roof panels hidden for clarity.
77
PARTS REQUIRED:
COLLAR TIES
HINT: For best appearance,
install collar tie on back
side of rafter.
TP
3rd
Rafter
DOOR
5th
Rafter
7th
Rafter
Rafter
11th
Rafter

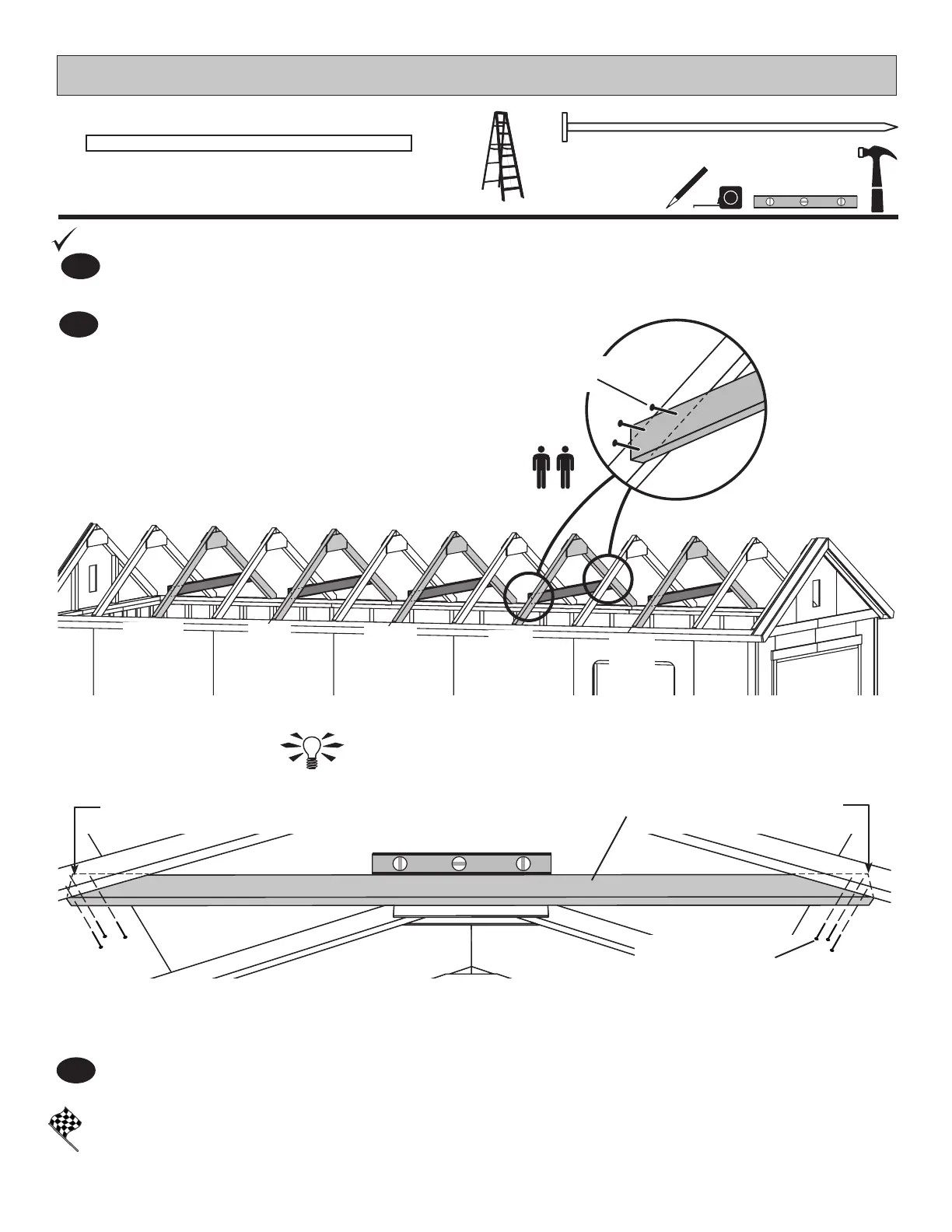

Locate collar tie TP on back of 3rd rafter from the door wall as shown.
Secure collar tie to rafter using (3) 3" nails at each end.
Repeat STEPS 1 - 2 to attach collar ties to the 5th, 7th, 9th and 11th RAFTERS from the door.
Check collar tie is level and ush to roof panel.
1
FINISH
You have nished installing your collar ties.
3
LEVEL
Flush
Flush
3" (7,6 cm)
TP
2 x 4 x 96" (5,1 x 10,2 x 243,9 cm)
To Next Page
