1/8” (3mm)
M8x25 (x2) M8x20 (x2)
Skid Shoe
1/8” (3mm) Cardboard
Scraper Blade
TIRES
SKID SHOES
The tires are over-inflated at factory for shipping purposes.
Check the pressure in the tires prior to usage. Reduce or increase
air pressure to ensure equal tire pressure to the manufacturer’s
recommended pressure. The recommended air pressure can be
found on the tire sidewall.
1. Place the machine is on a level and solid surface.
2. Lift the machine so that the scrapper blade is 1/8” (3mm) above
the ground, ensuring it is level. A piece of cardboard half the
thickness of the snow blower packaging placed under the
scrapper blade is recommended.
Under any circumstance do not exceed manufacturer’s
recommended pressure. Excessive pressure when
seating beads may cause tire/rim assembly to burst
with force sufficient to cause serious injury. Refer to
side wall of tire for recommended pressure.
Equal tire pressure should be maintained at all times. If
the tire pressure is not equal in both tires, the machine
may not travel in a straight path and the scraper blade
may wear unevenly.
Keep tires free of gasoline and oil, which can harm
rubber.

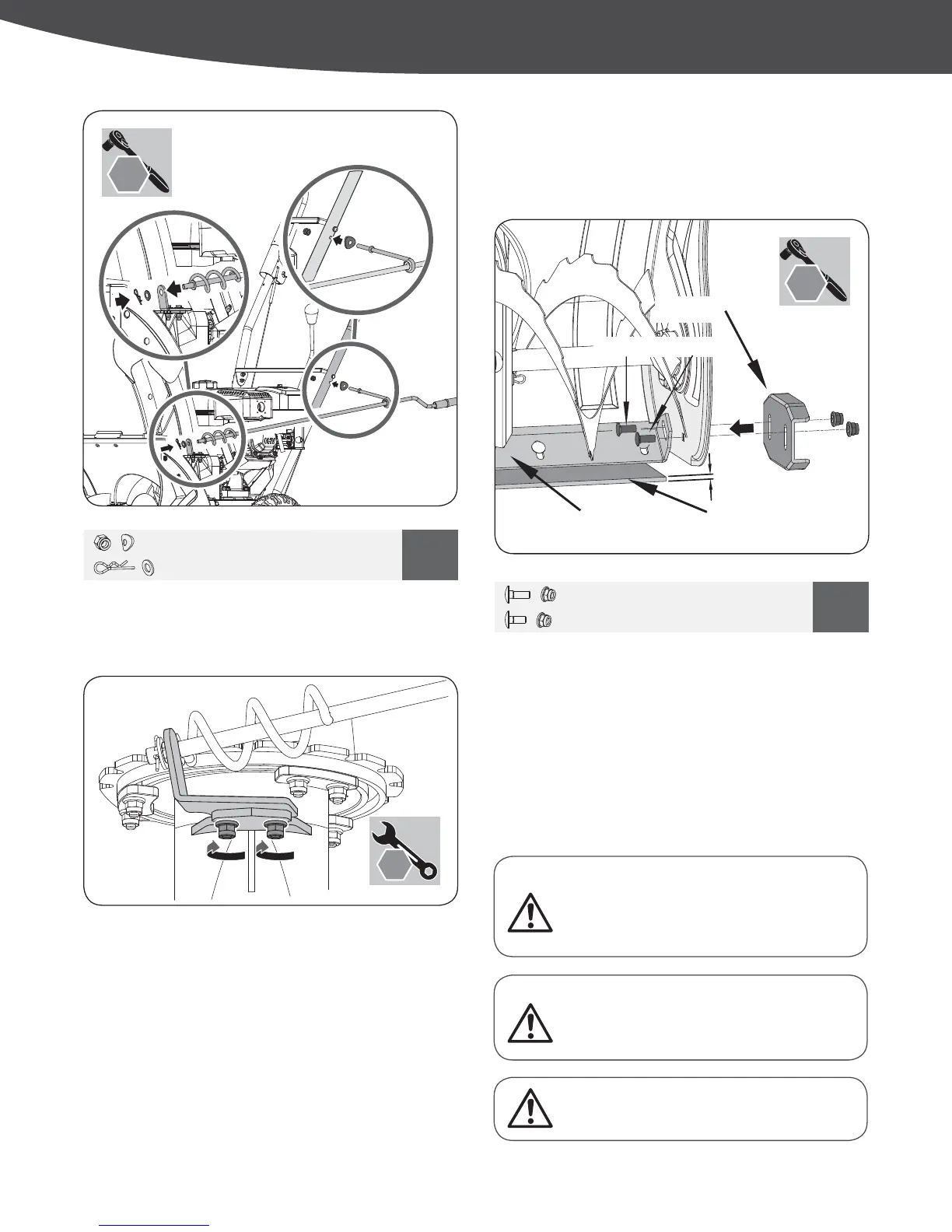

Figure 9

M8 X 25 X 2
6

M8 X 20 X 2
13 mm
4. Make sure the spiral at the bottom is fully engaging with the
FKXWH FUDQN ćDQJH DQG WLJKWHQ WKH WZR EROWV RQ WKH FKXWH
bracket. (See Figure 8b)
5. Tighten the nut which secures the directional chute control on
the handlebar.

M8 X 1
5

X 1
13 mm
Figure 8a
Figure 8b
4. Remove the 1/8” (3mm) spacer you used from under the
scrapper blade.
10
mm
X 2
3. Attach the skid shoes to the sides of auger housing with the
bolts and nuts. The shorter M8X20 bolts should be in the front
holes while the longer M8X25 bolts in the rear holes. Move the
skid shoes down as far as possible. Be sure both skid shoes are
adjusted evenly. Tighten securely. (See Figure 9)
11
|
Assembly
