Hydraulic Power Pack
M10×25 (×3)
Drive Belt
LUBRICATION
The gearbox is pre-lubricated and sealed at the
factory. No need to lubricate until 50 hours use.
After rst 50 hours use, change all the transmission
oil. Capacity is 1.5L.
For future use, just check the oil level every 50 hours
of working. If remove the drain plug, no oil ow out,
then add the oil.
Use portable tool lithium #0 grease such as Lubriplate
6300AA , Lubriplate GR-132, or Multifak, e.g. EP-O.
Transmission oil must be replace when engine is
stopped and warm by unscrewing ller cap and drain
plug. When oil is completely drained, replace ller cap
and ll up with fresh oil. (See Figure 8)

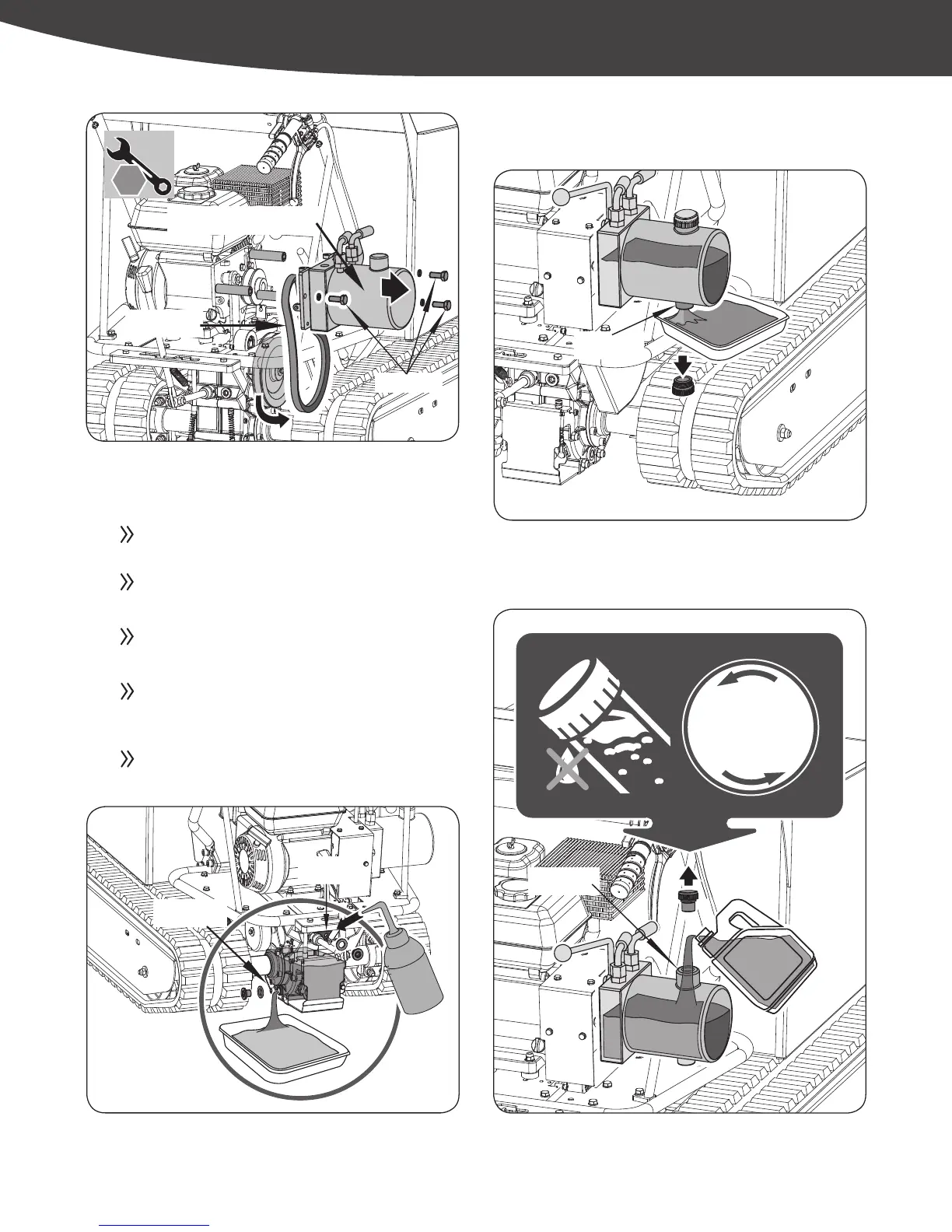

Figure 7c
Figure 8
Figure 9a
Figure 9b
Remove the oil dipstick and add the oil. The recommended hydraulic
oil is 10W AW32, ASLE H-150, or ISO 32. Tank Capacity is 1.8L.
HYDRAULIC OIL
Unscrew the oil drain plug to release the oil into the pan.
HYDRAULIC
OIL
FILLING
17
mm
17
YD8105PM04 - 1804
|
Maintenance
