YARDMAX YD8203 User Manual

A
A
Adjusting Bolt
Jam Nut
B
B
Steering Wheel Axle
Steering Wheel

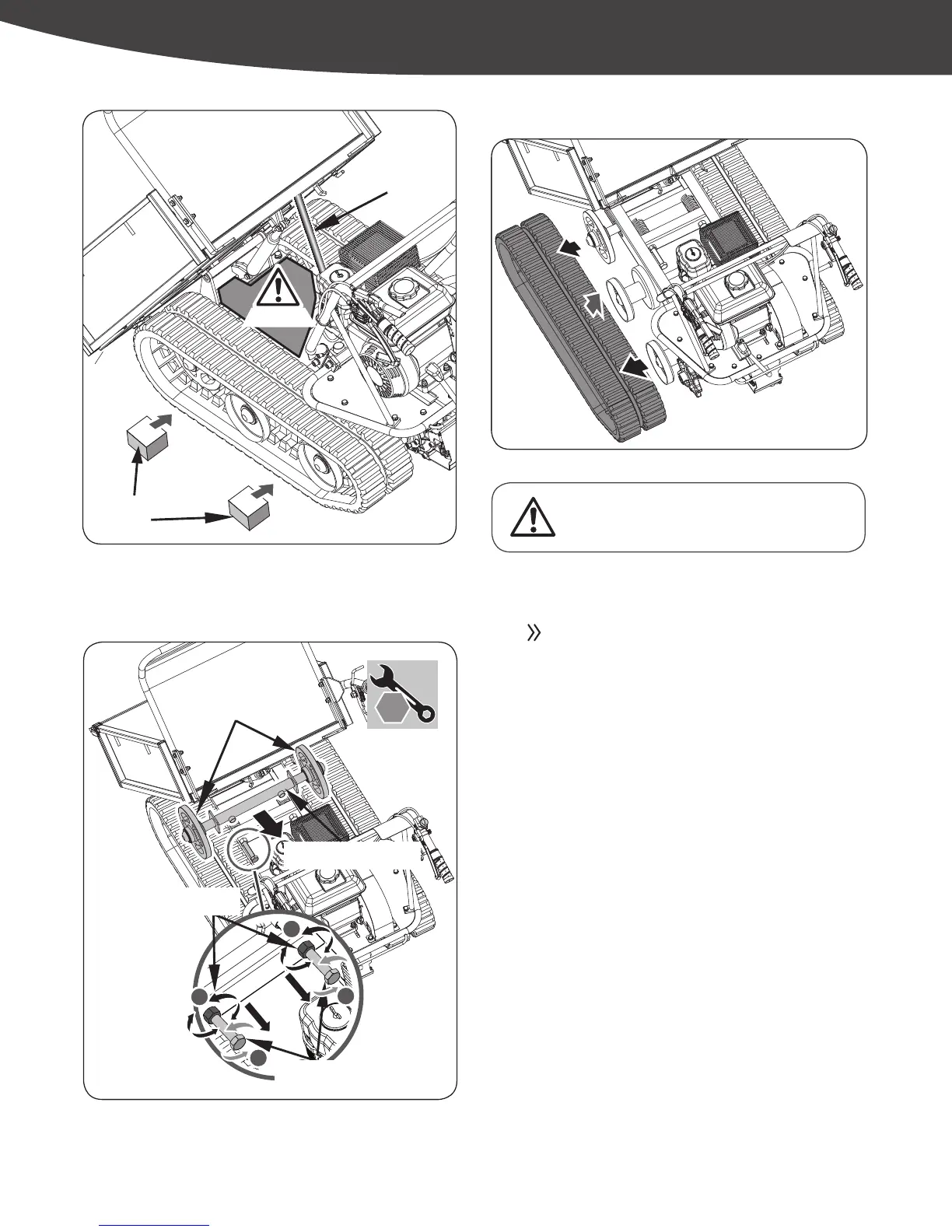

3. Loosen the adjusting bolts and pull the steering wheel axle
toward the engine, then track will be loosen. (See Figure 14b)
Figure 14a
Figure 14b
Figure 14c
17 mm
18 mm
30 mm
24 mm
13 mm
11 mm
When removing or installing the tracks, be careful not to
get your ngers caught between the track and pulley.
ENGINE MAINTENANCE
Refer to the Engine Manual included in your unit
for the information on engine maintenance. Your
engine manual provides detailed information and a
maintenance schedule for performing the tasks.
4. Pull out the whole track. (See Figure 14c)
Support Object
Support Rod
Danger Area
19
YD8203PM01 - 1703
|
Maintenance
09710US25M101.indd 19 2017/4/1 16:22:57
