YARDMAX YD8203 User Manual

Plow Blade (Optional)

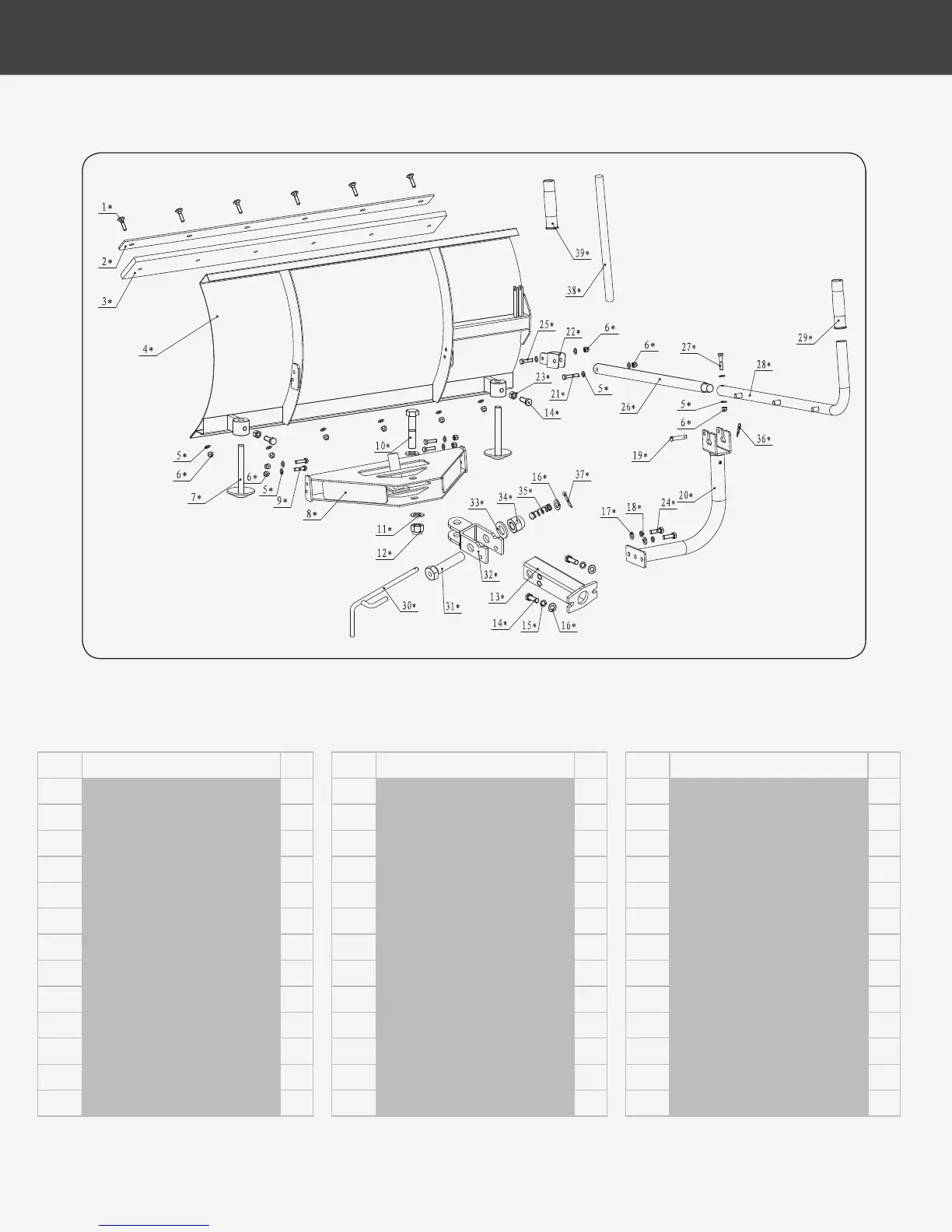

OPTIONAL PLOW BLADE
No. Description Qty
14* Bolt M12×40 4
15* Washer12 2
16* Washer12 3
17* Washer10 2
18* Washer10 2
19* Pin 10×60 1
20*
Curved Support Bracket Weldment 1
21* Bolt M8×50 1
22* Active Connecting Weldment 1
23* Nut M12 2
24* Bolt M10×25 2
25* Bolt M8×35 1
26* Adjusting Rod Weldment B 1
No. Description Qty
27* Bolt M8×40 1
28* Adjusting Rod Weldment A 1
29* Handle Sleeve 28 2
30* Limiter Rod Wedment 1
31*
Bolt M24 × 110 1
32* Limiter Weldment 1
33* Washer 24 1
34* Lock Nut M24 1
35* Spring 1
36* Bridge Pin 2×11×35 1
37* Pin 4×40 1
38* Handle Grip 2 1
39* Handle Sleeve 25 1
No. Description Qty
1* Bolt M8×35 6
2* Shave Plate 1
3* Rubber Plate 1
4* Blade Weldment 1
5* Washer8 16
6* Nut M8 13
7* Landing Leg Weldment 2
8* Blade Fixed Bracket Weldment 1
9* Bolt M8×30 4
10* Bolt M20×95 1
11* Washer20 2
12* Nut M20 1
13*
Blade Connecting Bracket Weldment 1
26
Mini Tracked Dumper
»
Operator’s Manual
YD8203PM01 - 1703
Parts List
|
